ISO9001-2008 certificate briquette making machine
Basic features:
1. Mainly used for straw dense forming and pasture dense forming.
2. The product has advantages like reasonable structure,high efficiency,low energy consumption,effective forming,adaptable,easy operation,easy maintenance and reliable performance.
3.The device can squeeze the straw with guillotine cutting length (for silk rubbing) under50 mm into rod-shaped solid pellets of biofuels (for animal feed) with cross-sectional size of 30-40mm,length 10mm to 100mm. The after-briquetting pellets are of highly-proportion,small size,easy storage and transportation,which are high-quality high-volatile solid fuels. The calorific value can reach 3200-4500kcal,which are flammable,less ash and low cost.They can also replace firewood,coal,gas and other fuels and they are widely used in the fields of heating,living stoves,boilers,biomass power plants.
4.Equipped with the forced lubricating system.
5.Reasonbale structure, stable performance, high effeciency, low consumption, good briquette effect, simple operation and convenient maintainance.

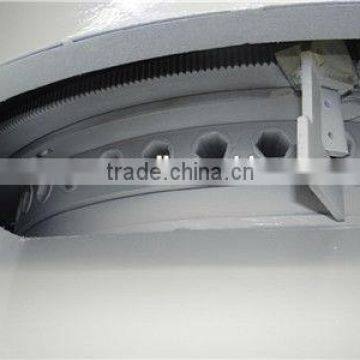

6.The unique mould structure can process different kinds of crop straw with different moisture content.
7.This machine can make both the feed briquette and fuel briquette.
Technical parameters
| Model | YLBM1200 |
| Power(kW) | 30 |
| Capacity(t/h) | 0.5-0.8 |
| Rotate speed(r/min) | 980 |
| Voltage(v) | 380 |
| Dia.of mould(mm) | 760 |
| Qty for the die holes | 30 |
| Briquette size(mm) | 32×32 |
| Material length(mm) | 3-60 |
| Material humidity(%) | 15-30 |
| Briquette tensity(t/m3) | 0.8-1.4 |
| Briquette temperature(°C) | Below 100°C |
| Working type | continuous working |
| Dimension(mm) | 2700×1000×1800 |
| Weight(t/set) | 2.5 |

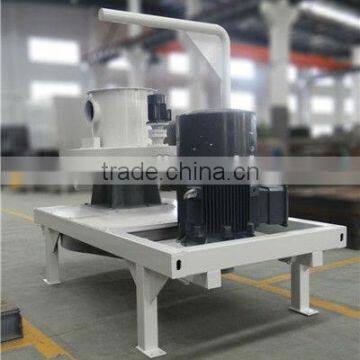

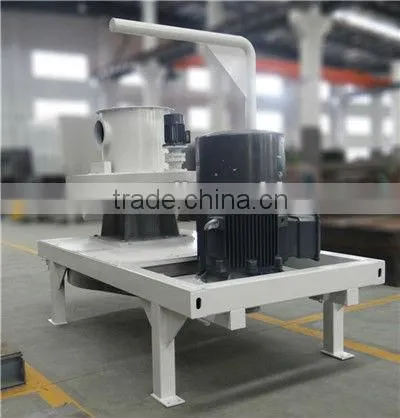

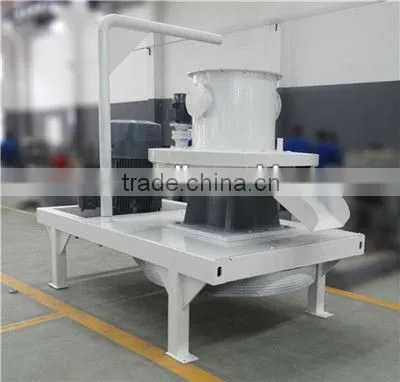

Briquette making machine

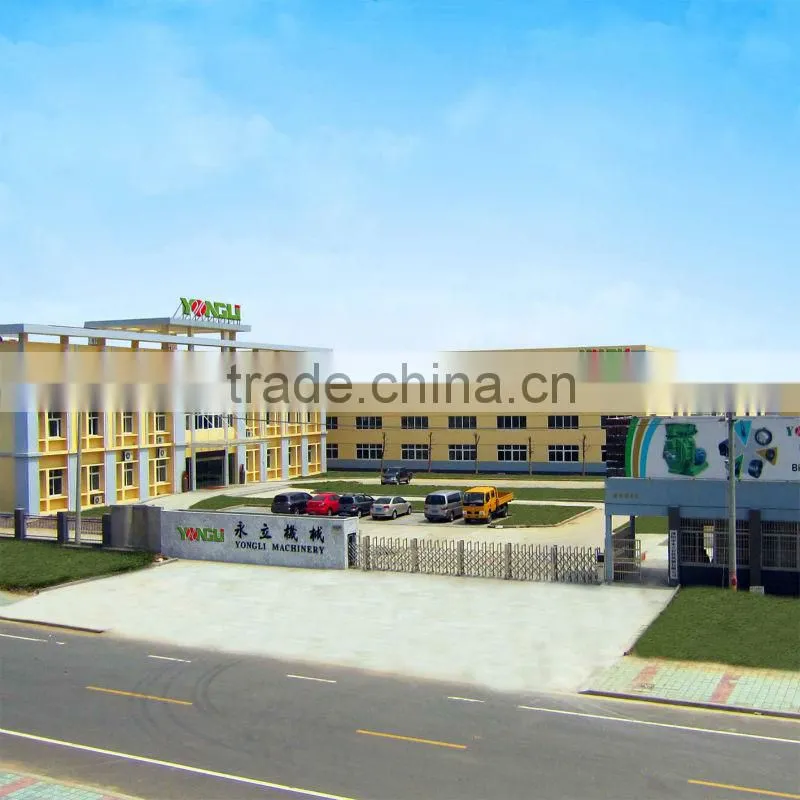

About Our Company
Jiangsu Yongli Machinery Co.,Ltd. was founded in 2003 with an occupation of 22,000m2 located in the scenic Tianmu Lake, Liyang city, Jiangsu province, which is a national 5A tourist place.
We have spacious production workshop, comfortable and elegant office space, coupled with a strong team of workers.
Jiangsu Yongli Machinery Co., Ltd is with the strong capability of R&D, process engineering design, and training, and the company is always commit to customers' satisfaction and success.
Surface finishing workshop
Warehouse
About Service
We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation and cooperation.
Our professional service includes: Free training, Guidance Installation and Debugging.
Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Thank you for your reliance and support!
Certificates
1.The quality assurance system of Jiangsu Yongli Machinery Co., Ltd is authenticated with ISO9001 quality assurance system.
2.The products of YONGLI are issued CE certification by European Union.

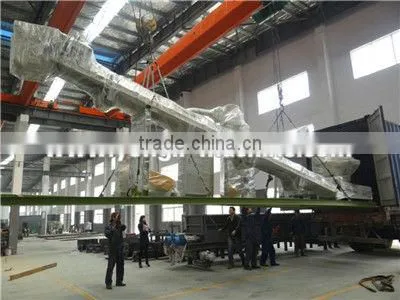

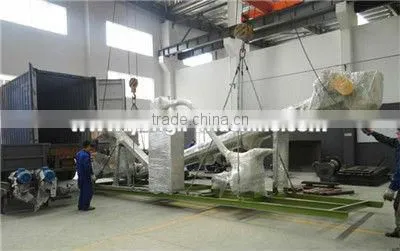

Delivery Management
When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
