Specifications
bottle shrink wrapping machine1.automatic bottles shrink wrapping machine
2.beverage bottle shrink wrapping machine
3.PLC

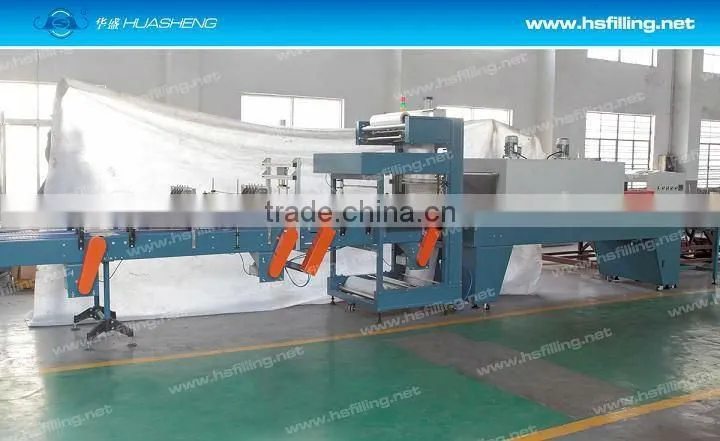

Full Automatic Bottle Shrink Wrapping Machine
Description of machine
Original materials and import (cylinder control)
Germany SICK photoelectric-control Feed
Touch button control, it is easy for control membrane-length
"Mitsubishi" PLC programmable logic controller control the equipment automatically
Double powerful fan ensure the circulation of air
Powerful cooling system, to make sure shrink and refrigerate the products rapidly
Long heating system can ensure the prefect packaging
"LFPOM" material conveyor belt has good quality
Conveyor belt can be designed according to your requirements
Conveyor belt introduced an advanced transducer, CVT
The height of machine is adjustable + / -50 mm,
Worm reducer can send materials reposefully
Packaging mode: 6 bottles, 9 bottles, 12 bottles, 15 bottles, 18 bottles, 20 bottles, 24 bottles packaging
Plate and No-plate(bottom), both of them is available, and this equipment can process it at the same tim
Technical Parameters:
Maximum size of package |
L420×W278×H 390mm |
Minimum size of package |
L210× W140×H 100mm |
Wrappage |
PE |
Wrappage thickness |
0.03-0.15mm (Special requirement is available) |
Heating temperature |
0-26 0 (Adjustable ) |
Processing capacity |
720 packages |
Main heating power |
18kw |
Consumption |
15kw/ hour |
Voltage |
380/220V |
Equipment dimension |
5950*2500*1800(L*W*H) |
Working air pressure |
0.6-0.8Mpa,Air consume 0. 3 Stere / Min. |
G. W. |
1100KG |
Widely used in the beverage, food, medical and chemical industrial packaging | |
Liner type bottle group shrink wrapping machine/packing machine
HS Filing company-workshop
HS-Filling company CERTIFICATE
Huasheng beverage machinery Co., Ltd. was established in 1994, It's a professional manufacturer of liquid food and beverage equipment.
They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.
The products scope as below:
PET bottle filling machine,
Glass bottle filling machine,
Capping machine,
Bottle washing machine,
Water treatment,
Oil filling machine/piston filler,
Other bottle filling machine,
Labeling machine,
wrap packing machine,
bottle unscrambler,and some drinks production line auxiliary.
