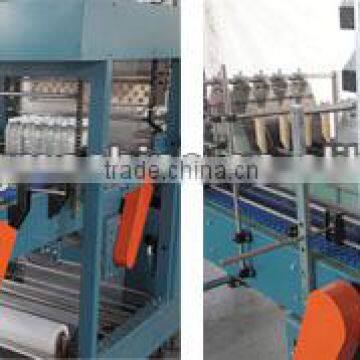

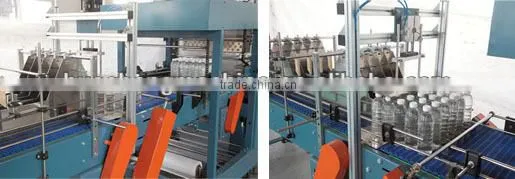

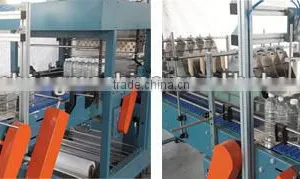

Automatic Bottle Group Shrink Packing Machine

Automatic Bottle Group Shrink Packing Machine photo-1
US$ 12,000 - 22,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food
Packaging Type:
Bottles, Cans, Cartons, Case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Food
Packaging Type Bottles, Cans, Cartons, Case
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage customized
Power 18kw
Place of Origin Jiangsu, China
Brand Name HS
Model Number SP
Dimension(L*W*H) 5950*2500*1800
Weight 1100kg
Certification CE,ISO,SGS,GMC
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Bottle Group Shrink Packing Machine
1.auto shrink packing machine
2.PET/Glass/Can shrink packing machine
3.PLC control
4.CE,

 Automatic Bottle Group Shrink Packing Machine





Brif-

1. Full automatic wrap shrink packing machine and semi-auto wrap shrink packing machine provided.



2.Packaging mode: 6 bottles, 9 bottles, 12 bottles, 15 bottles, 18 bottles, 20 bottles, 24 bottles packaging


3.Plate and No-plate(bottom), both of them is available, and this equipment can process it at the same time.



4. Apply to PET bottle, Glass Bottle, Cans group packing

Technical Parameters:

Maximum size of package

L420×W278×H 390mm

Minimum size of package

L210× W140×H 100mm

Wrappage

PE

Wrappage thickness

0.03-0.15mm (Special requirement is available)

Heating temperature

0-26 0 (Adjustable )

Processing capacity

720 packages

Main heating power

18kw

Consumption

15kw/ hour

Voltage

380/220V

Equipment dimension

5950*2500*1800(L*W*H)

Working air pressure

0.6-0.8Mpa,Air consume 0. 3 Stere / Min.

G. W.

1100KG

Widely used in the beverage, food, medical and chemical industrial packaging

 water bottling plant

Automatic Bottle Group Shrink Packing Machine



Automatic Bottle Group Shrink Packing Machine

Automatic Bottle Group Shrink Packing Machine
