Specifications
Bottles Packing Machine1-Capacity:8 packages/min
2-PE film shrinking
3-apply to PET/Glass bottle,Paper box
4.PLC control

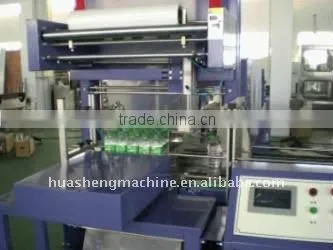

PM Series Bottles Packing Machine
Technical Parameters
Maximum size of package |
L420×W278×H 390mm |
Minimum size of package |
L210× W140×H 100mm |
Wrappage |
PE |
Wrappage thickness |
0.03-0.15mm (Special requirement is available) |
Heating temperature |
0-260°C(Adjustable ) |
Processing capacity |
8 packages/min |
Main heating power |
26kw |
Consumption |
15kw/ hour |
Voltage |
380/220V |
Equipment dimension |
5950*2500*1800(L*W*H) |
Working air pressure |
0.6-0.8Mpa,Air consume 0. 3 Stere / Min. |
G. W. |
1100KG |
Widely used in the beverage, food, medical and chemical industrial packaging | |
Feature:
Original materials and import (cylinder control)
Germany SICK photoelectric-control Feed
Touch button control, it is easy for control membrane-length
"Mitsubishi" PLC programmable logic controller control the equipment automatically
Double powerful fan ensure the circulation of air
Powerful cooling system, to make sure shrink and refrigerate the products rapidly
Long heating system can ensure the prefect packaging
"LFPOM" material conveyor belt has good quality
Conveyor belt can be designed according to your requirements
Conveyor belt introduced an advanced transducer, CVT
The height of machine is adjustable + / -50 mm,
Worm reducer can send materials reposefully
Packaging mode: 6 bottles, 9 bottles, 12 bottles, 15 bottles, 18 bottles, 20 bottles, 24 bottles packaging
Plate and No-plate(bottom), both of them is available, and this equipment can process it at the same time.
