Specifications
milk bottling equipment for sale1.Production capacity:6000-8000b/h
2.Electrical Equipment:PLC
3.Operation:Automatic
Milk Bottling Equipment For Sale
- The milk bottling equipment for sale is used in production of noon-soda drink of fruit juice,fruit wine,minerals and pure water packed in polyester bottles.
- Washing,filling and capping are integrated in one machine.
- The whole milk bottling euqipment machine is controlled by PLC with touch-screen as the human-machine interface.
- The amout of the drinks in the storage tank can be controlled automatically.
- The filling and capping will be stopped automatically when bottles are cramped wrongly or when caps are not available,the machine can automatically.
- The frequency changing technology is used to adjust the operation speed steplessly.
- The production can be displayed digitally and can be adjusted conveniently.
Model |
RCGF16126 |
RCGF18186 |
RCGF24248 |
RCGF323212 |
RCGF404015 |
RCGF505018 |
RCGF606020 |
Head of washing, filling, sealing |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-12 |
40-40-15 |
50-50-18 |
60-60-20 |
Production capacity (bottle/hour) |
4000-5000 |
6000-8000 |
8000-10000 |
10000-12000 |
12000-14000 |
15000-16000 |
18000-20000 |
Suitable bottle diameter(mm) |
Φ=50-90 H=150-310 330-1500ml |
Φ=50-90 H=150-310 330-1500ml |
Φ=50-90 H=150-310 330-1500ml |
Φ=50-90 H=150-310 330-1500ml |
Φ=50-90 H=150-310 330-1500ml |
Φ=50-90 H=150-310 330-1500ml |
Φ=50-90 H=150-310 330-1500ml |
Spraying pressure |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
Motor power |
3.13kw |
3.84kw |
4.1kw |
5.6kw |
7.5kw |
9kw |
11kw |
Power of outer vacuum pump |
0.3-0.7 |
0.3-0.7 |
0.3-0.7 |
0.3-0.7 |
0.3-0.7 |
0.3-0.7 |
0.3-0.7 |
Overall dimension (mm) |
2100×1650×2300 |
2400×1900×2300 |
2800×2100×2300 |
4200×2300×2300 |
5000×2800×2400 |
5900×3100×2400 |
6500×3500×2400 |
Weight(Kg) |
2500 |
3000 |
4000 |
5000 |
7500 |
9000 |
11000 |

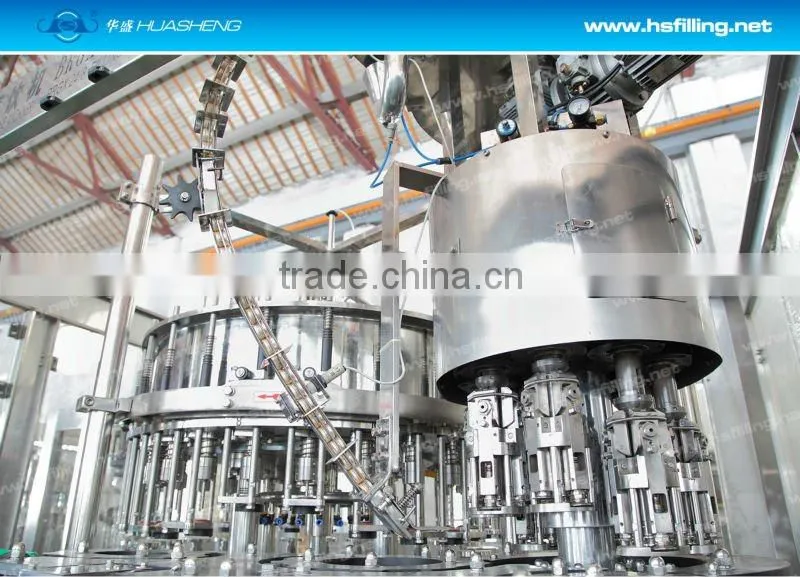

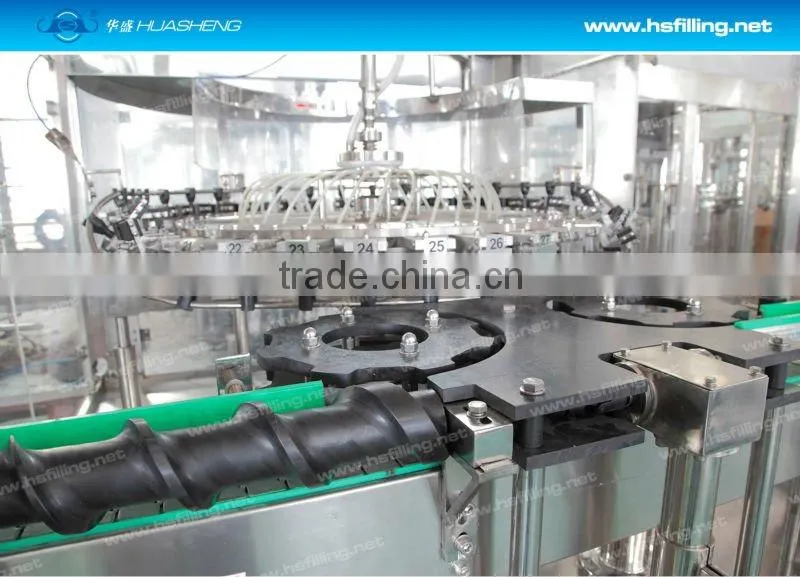

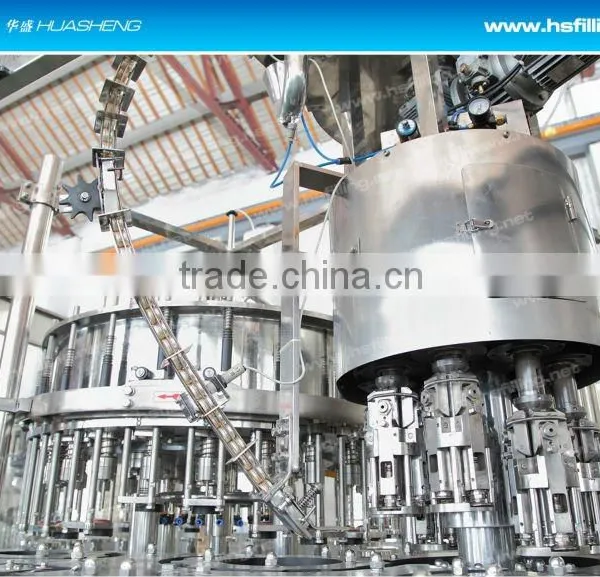

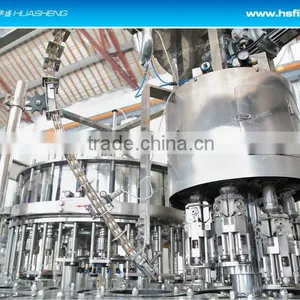

Milk Bottling Equipment For Sale Pictures
Huasheng beverage machinery Co., Ltd. was established in 1994, It's a professional manufacturer of liquid food and beverage equipment. They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.They have 300+ users in and out of China, and now 30% order from regular customer. The products scope as below: PET bottle filling machine,Glass bottle filling machine,Capping machine,Bottle washing machine,Water treatment,Oil filling machine/piston filler,Other bottle filling machine,Labeling machine, wrap packing machine,bottle unscrambler,and some drinks production line auxiliary.
Before sales:
the buyer must cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations.
During build:
we will update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when it finished in our factory, if the buyer think it is ok, we will arrange shipping; or we can take the testing video and send to buyer, the purpose is that the buyer?can inspect the machine but without travelling.
After sales:
We will send technicians to buys factory for installation, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the cost price of spare parts
