bottle cap machine1.pump cap suitable
2.fast speed
3.PLC Control
4.stable working
Automatic bottle cap machine
Main characteristics:
This bottle cap machine is our new developed rotary capper, which suitable for pump cap, normal round cap. Bottle inlet and cap inlet could be holding controlled. No harm to bottles and caps when capping. High qualified rate of capping. Properties of products have achieved international advanced level and it has been appreciated by international tycoon daily chemical company.
1. Capping process description: feeding cap by manual— sorting cap in order — capping automatically (pump cap)
Feeding cap by cap sorter — sorting cap in order — Capping automatically ( normal round cap)
2.Torque control: 2~4N.M(adjustable)
3. Automatic checkout equipment: when photosensor test bottles, the equipment work, no bottle no work. When photosensor test there are bottle blocking at outlet part, the equipment will stop. Failure alarm: three color alarm light. Alarm method: light flashing.
4. Capping degree of tightness could be adjusted by separation and reunion device. Separation and reunion device in capping part was special designed, good effect and protect cap from being harmed by over friction.
5.this bottle cap machine adopts strict rust production and anti-corrosion measure. Main material is SUS304, machine rack is carbon steel covered with SUS 304 stainless steel. High working accuracy parts and low noise. Adjustable capping speed and torque. Durable and wear-resisting, stable working and easy adjusting.
Bottle Cap Machine Technical Parameter:
01 |
Overall dimension |
2000mml(L)×1600mm(W)×2600mm(H) |
02 |
Suitable bottle |
Height:80mm~280mm Diameter:40mm~100mm (can be customized) |
03 |
Suitable cap |
Height:10mm-35mm Diameter:20mm~80mm (can be customized) |
04 |
Capping heads |
8 |
05 |
Production capacity |
≤6000bottles/hour |
06 |
Power supply |
AC 380V,50Hz |
07 |
Power |
4 kw |
08 |
Air operated source |
0.6Mpa clean and stable compressed air |
09 |
Weight |
About 4500kg |
10 |
Noise |
≤80db(Test 1 meter from machine |

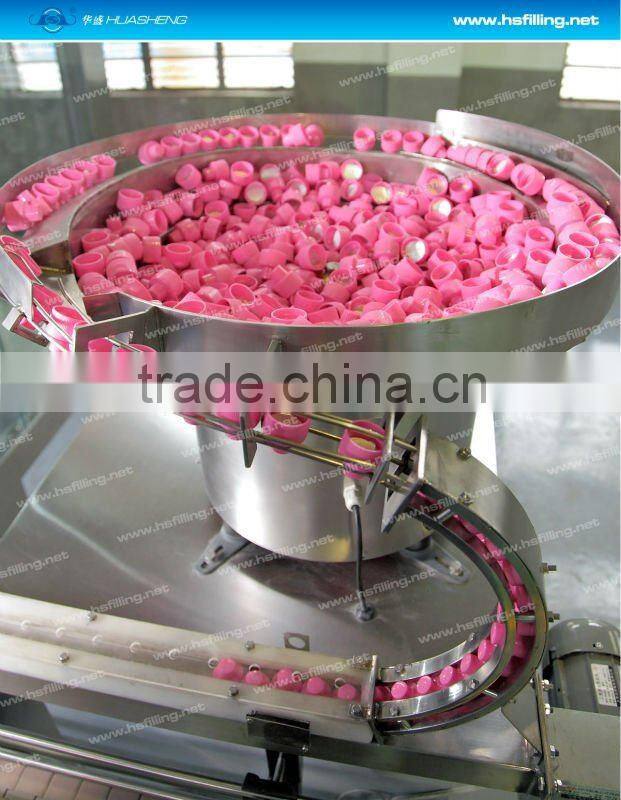

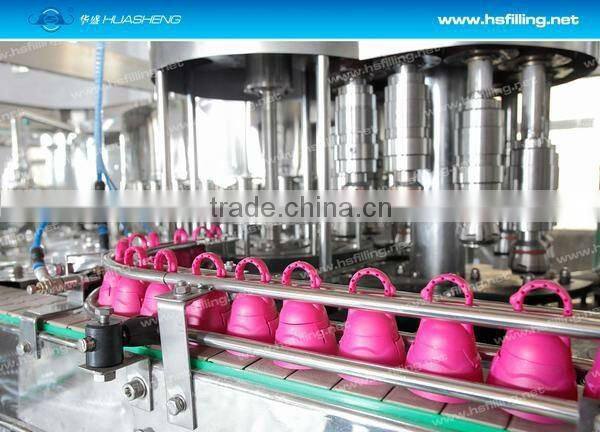

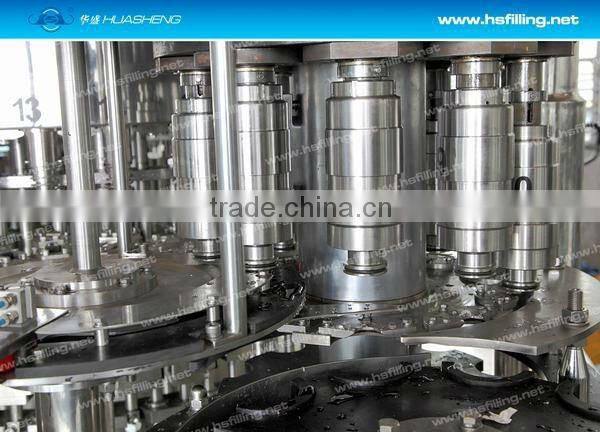

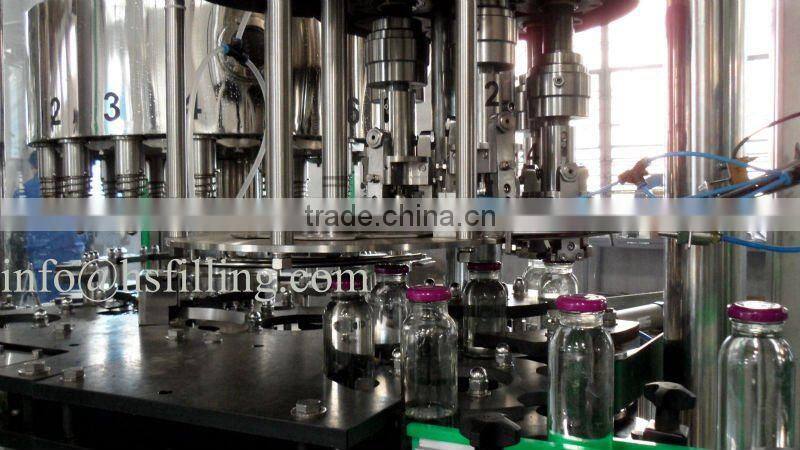

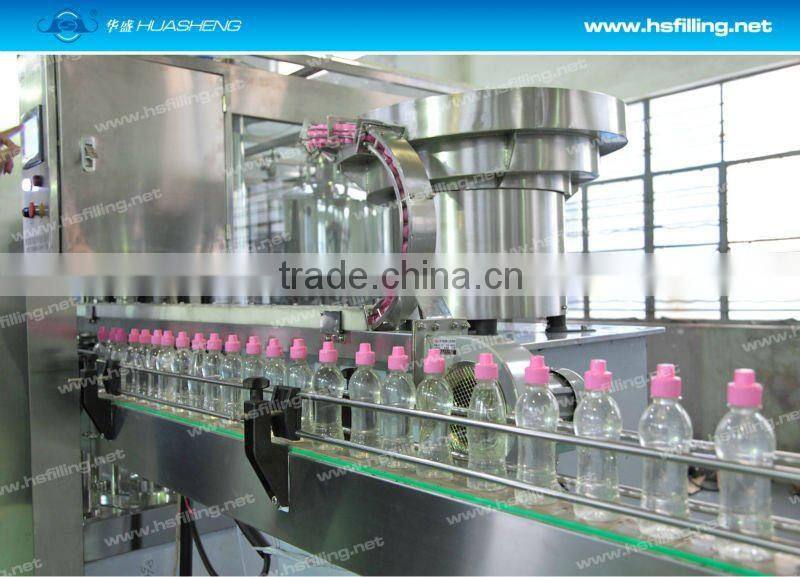

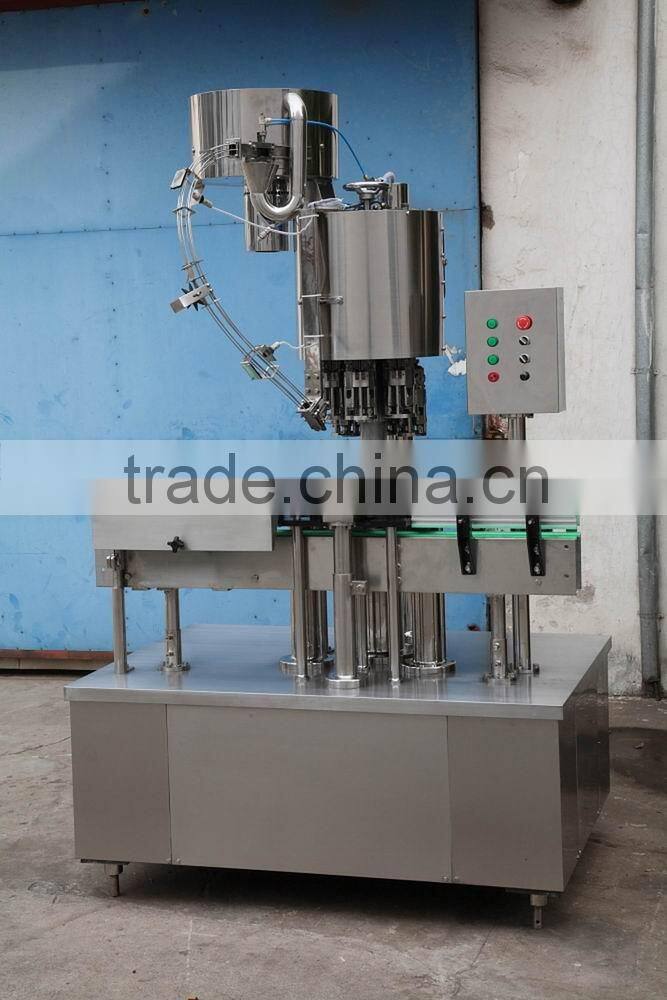

Our Bottle Cap Machine Pictures
Huasheng beverage machinery Co., Ltd. was established in 1994, It's a professional manufacturer of liquid food and beverage equipment. They have good experience especially in filling and capping technology.and they provide customized service and turnkey project.They have 300+ users in and out of China, and now 30% order from regular customer. The products scope as below: PET bottle filling machine,Glass bottle filling machine,Capping machine,Bottle washing machine,Water treatment,Oil filling machine/piston filler,Other bottle filling machine,Labeling machine, wrap packing machine,bottle unscrambler,and some drinks production line auxiliary.
Before sales:
the buyer must cooperate with us with patience, and provide us all needed informations, these information is very important, because the final solution based on these informations.
During build:
we will update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when it finished in our factory, if the buyer think it is ok, we will arrange shipping; or we can take the testing video and send to buyer, the purpose is that the buyer?can inspect the machine but without travelling.
After sales:
We will send technicians to buys factory for installation, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support.Out of warranty period, we offer free technical support, and the cost price of spare parts
