U.S. Type Drop Forged Wire Rope Clips

U.S. Type Drop Forged Wire Rope Clips thumbnail-1
U.S. Type Drop Forged Wire Rope Clips thumbnail-2
U.S. Type Drop Forged Wire Rope Clips photo-1
U.S. Type Drop Forged Wire Rope Clips photo-2
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
sea eagle
Model Number:
u.s. type
Contact Supplier Request Quote Chat Now
Ningbo Grandlifting Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name sea eagle
Model Number u.s. type

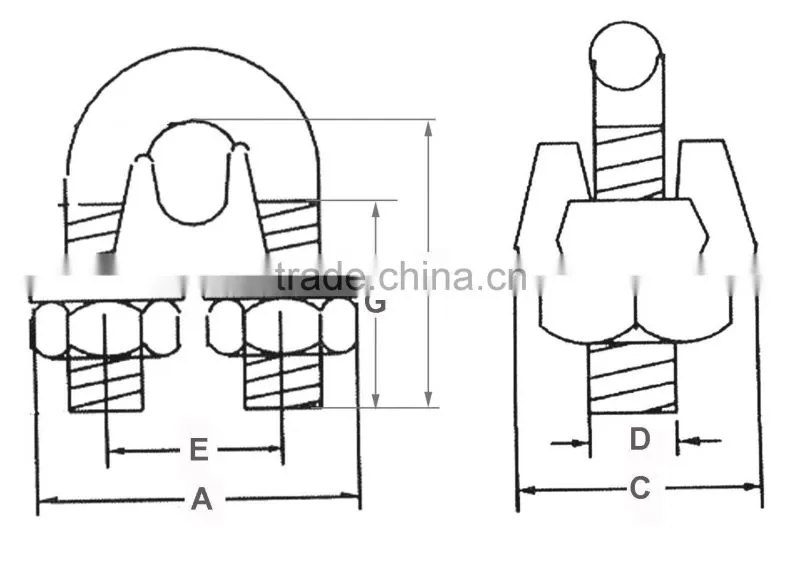

 U.S. type drop forged wire rope clips

ITEM NO SIZE A E G L C D
  in in in in in in in
ZHWRC-DF-1 1/8 0.44 0.47 0.94 0.72 0.81 0.22
ZHWRC-DF-2 3/16 0.56 0.59 1.16 0.97 0.94 0.25
ZHWRC-DF-3 1/4 0.63 0.75 1.44 1.03 1.19 0.31
ZHWRC-DF-4 5/16 0.75 0.88 1.69 1.38 1.31 0.38
ZHWRC-DF-5 3/8 0.75 1 1.94 1.5 1.63 0.44
ZHWRC-DF-6 7/16 1 1.19 2.28 1.88 1.81 0.5
ZHWRC-DF-7 1/2 1 1.19 2.28 1.88 1.91 0.5
ZHWRC-DF-8 9/16 1.25 1.31 2.5 2.25 2.06 0.56
ZHWRC-DF-9 5/8 1.25 1.31 2.5 2.38 2.06 0.56
ZHWRC-DF-10 3/4 1.44 1.5 2.84 2.75 2.25 0.62
ZHWRC-DF-11 7/8 1.63 1.75 3.16 3.13 2.44 0.75
ZHWRC-DF-12 1 1.81 1.88 3.47 3.5 2.63 0.75
ZHWRC-DF-13 1-1/8 2 2 3.59 3.88 2.81 0.75
ZHWRC-DF-14 1-1/4 2.13 2.31 4.13 4.25 3.13 0.88
ZHWRC-DF-15 1-3/8 2.31 2.38 4.19 4.63 3.13 0.88
ZHWRC-DF-16 1-1/2 2.38 2.59 4.44 4.94 3.41 0.88
ZHWRC-DF-17 1-5/8 2.63 2.75 4.75 5.31 3.63 1
ZHWRC-DF-18 1-3/4 2.75 3.06 5.28 5.75 3.81 1.13
ZHWRC-DF-19 2 3 3.38 5.88 6.44 4.44 1.25
ZHWRC-DF-20 2-1/4 3.19 3.38 6.38 7.13 4.56 1.25



U.S. type drop forged wire rope clips

1)low carbon steel
2)1/8"---1-5/8"
3)galvanized,stainless steel,red
4)type:DIN741/1142,U.S.,Austria,B.S462......

1)material:low carbon steel

2)size:1/8"-----1-5/8"

3)surface treatment:galvanized,stainless steel,red,self-color etc.

4)packaging:plastic bag,gunny bag,wooden carton then on pallets

5)type:DIN741      DIN1142       DSCN4631       U.S. type malleable    Drop forged   Austria type

          cast iron     B.S.462 malleable       Malleable type A/B



your detail requirements are warmly welcomed!
