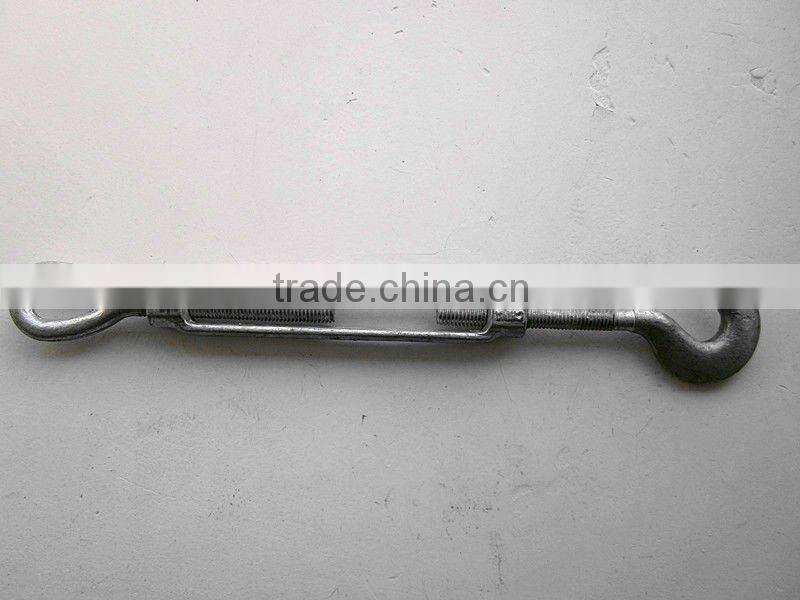

U.S. Drop Forged Federal Turnbuckle
US$ 0.2 - 20
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
grandlifting
Model Number:
metal
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
grandlifting
Model Number
metal
Specifications
1.material : carbon steel2.standards : US type
3.surface: hot dipped galv,electro galv,self-colored
4.payment:T/T OR L/C
| ITEM NO | Size | Average Overall | Approx. Net Weight(lbs) | Work Load Limit(lbs) | ||||
| Length with | Eyes | Jaw and | Jaw and | Bodies | ||||
| (Diameter | Ends in Closed | and/or | Eye | Jaw | Only | Hook and Hook | Eye and Eye Jaw and Eye | |
| x Take-Up) | Position | Hooks | Hook and Eye | Jaw and Jaw | ||||
| ZHUST-1 | 1/4"x4" | 8-1/4 | 0.3 | 0.3 | 0.4 | 0.17 | 400 | 500 |
| ZHUST-2 | 5/16"x4-1/2" | 9-9/16 | 0.5 | 0.35 | 0.58 | 0.25 | 700 | 800 |
| ZHUST-3 | 3/8"x6" | 11-7/8 | 0.75 | 0.82 | 0.93 | 0.3 | 1000 | 1200 |
| ZHUST-4 | 1/2"x6" | 13-5/16 | 1.5 | 1.62 | 1.68 | 0.55 | 1500 | 2200 |
| ZHUST-5 | 1/2"x9" | 16-5/16 | 1.75 | 1.82 | 1.85 | 0.74 | 1500 | 2200 |
| ZHUST-6 | 1/2"x12" | 19-5/16 | 2.18 | 2.19 | 2.2 | 0.93 | 1500 | 2200 |
| ZHUST-7 | 5/8"x6" | 15-1/2 | 2.63 | 2.59 | 2.82 | 0.91 | 2250 | 3500 |
| ZHUST-8 | 5/8"x9" | 18-1/2 | 3 | 3.01 | 3.25 | 1.2 | 2250 | 3500 |
| ZHUST-9 | 5/8"x12" | 21-1/2 | 3.25 | 3.5 | 3.75 | 1.5 | 2250 | 3500 |
| ZHUST-10 | 3/4"x6" | 17 | 3.75 | 4.25 | 4.68 | 1.3 | 3000 | 5200 |
| ZHUST-11 | 3/4"x9" | 20 | 4.5 | 5 | 5.38 | 1.7 | 3000 | 5200 |
| ZHUST-12 | 3/4"x12" | 23 | 5.75 | 5.75 | 6.12 | 2.12 | 3000 | 5200 |
| ZHUST-13 | 3/4"x18" | 29 | 7 | 7.25 | 7.25 | 2.93 | 3000 | 5200 |
| ZHUST-14 | 7/8"x6" | 18 | 5.85 | 6.29 | 6.84 | 2 | 4000 | 7200 |
| ZHUST-15 | 7/8"x12" | 24-5/8 | 8.38 | 8.88 | 9.36 | 3 | 4000 | 7200 |
| ZHUST-16 | 7/8"x18" | 30-5/8 | 10.25 | 10.6 | 11.44 | 4.12 | 4000 | 7200 |
| ZHUST-17 | 1"x6" | 20-5/8 | 8.76 | 9.16 | 9.51 | 2.5 | 5000 | 10000 |
| ZHUST-18 | 1"x12" | 26-5/8 | 11.25 | 12 | 12.88 | 3.86 | 5000 | 10000 |
| ZHUST-19 | 1"x18" | 32-5/8 | 14 | 14.75 | 16.1 | 5.5 | 5000 | 10000 |
| ZHUST-20 | 1"x24" | 38-5/8 | 17 | 17.75 | 18.6 | 7 | 5000 | 10000 |
| ZHUST-21 | 1-1/4"x6" | 20 | 15.45 | 16.03 | 16.69 | 4 | 6500 | 15200 |
| ZHUST-22 | 1-1/4"x12" | 29-7/8 | 19 | 21.2 | 23.6 | 5.93 | 6500 | 15200 |
| ZHUST-23 | 1-1/4"x18" | 35-7/8 | 24.1 | 26 | 26.6 | 8 | 6500 | 15200 |
| ZHUST-24 | 1-1/4"x24" | 41-7/8 | 25 | 28.7 | 31.2 | 10 | 6500 | 15200 |
| ZHUST-25 | 1-1/2"x6" | 22-1/8 | - | - | - | 5.8 | 7500 | 21400 |
| ZHUST-26 | 1-1/2"x12" | 32-3/8 | 27 | 31.1 | 35.5 | 8.4 | 7500 | 21400 |
| ZHUST-27 | 1-1/2"x18" | 38-3/8 | 31.2 | 36.4 | 40.7 | 11.5 | 7500 | 21400 |
| ZHUST-28 | 1-1/2"x24" | 44-3/8 | 38.2 | 44.2 | 47.6 | 14.1 | 7500 | 21400 |
| ZHUST-29 | 1-3/4"x6" | - | - | - | - | 8.75 | - | 28000 |
| ZHUST-30 | 1-3/4"x18" | 41-3/4 | 45 | 48.8 | 52.4 | - | - | 28000 |
| ZHUST-31 | 1-3/4"x24" | 47-3/4 | 58 | 60 | 64 | - | - | 28000 |
| ZHUST-32 | 2"x6" | - | - | - | - | 12.5 | - | 37000 |
| ZHUST-33 | 2"x24" | 51-3/4 | 90 | 102 | 115 | 27.5 | - | 37000 |
| ZHUST-34 | 2-1/2"x6" | - | - | - | - | 27 | - | 60000 |
| ZHUST-35 | 2-1/2"x24" | 58-1/2 | 183 | 180 | 200 | 54 | - | 60000 |
| ZHUST-36 | 2-3/4"x24" | 61-1/2 | 180 | 214 | 248 | 54 | - | 75000 |
turnbuckle U.S. type drop forged rigging hardware
1.material : carbon steel
2.standards : US type
3.surface: hot dipped galv,electro galv,self-colored
cedure: drop forged ,cast,
5.packing : in carton then on pallets
Do not hesitate to contact us!
