Home > Products > RIGGING HARDWARE > U.S. Type D Shackle With Safety PIN G2150

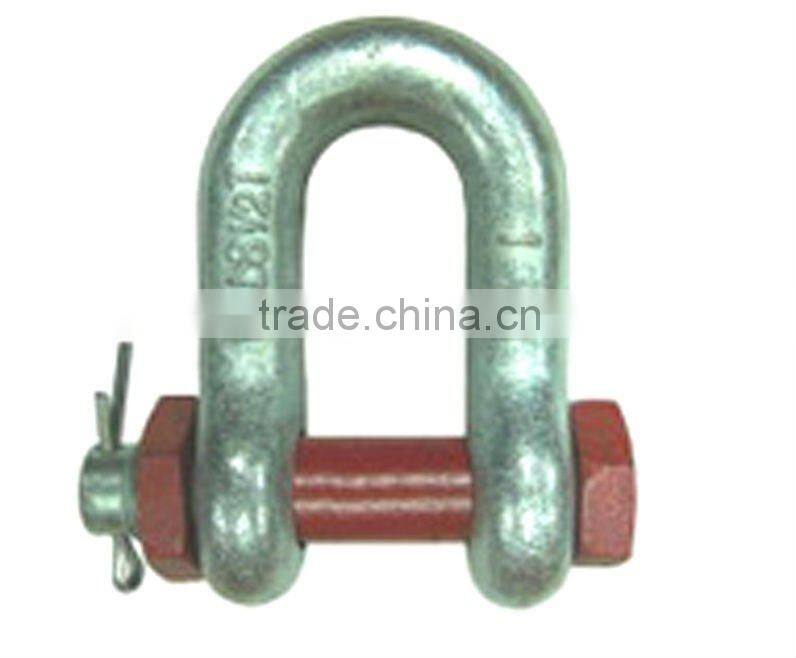

U.S. Type D Shackle With Safety PIN G2150
US$ 0.1 - 10
/ Piece
100 Pieces(Min. Order)
- NINGBO CHINA
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | grandlifting | |
| Model Number | G2150 |
Product Description
Specifications
1.Standard:US type shackle G21502.Size:1/4-2 1/2
3.Material:carbon steel ,stainless steel ,alloy steel

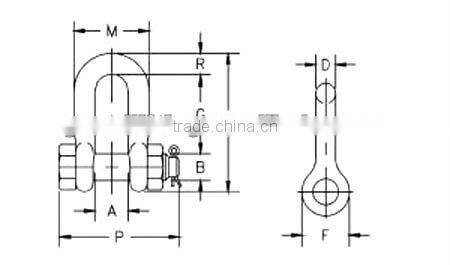

| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight Each | ||||||||
| (in.) | (tons) | A | B | D | F | G | K | M | P | R | (kg) | |
| ZHG2150-1 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 15.5 | 19.1 | 40.4 | 24.6 | 39.6 | 6.35 | 0.06 |
| ZHG2150-2 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 19.1 | 25.4 | 48.5 | 29.5 | 46.2 | 7.85 | 0.1 |
| ZHG2150-3 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 23.1 | 31 | 58.5 | 35.8 | 55 | 9.65 | 0.15 |
| ZHG2150-4 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 26.9 | 36.1 | 67.5 | 41.1 | 63.5 | 11.2 | 0.22 |
| ZHG2150-5 | 1/2 | 2 | 20.6 | 16 | 12.7 | 30.2 | 41.4 | 77 | 46 | 71 | 12.7 | 0.34 |
| ZHG2150-6 | 5/8 | 3-1/4 | 26.9 | 19.1 | 16 | 38.1 | 51 | 95.5 | 58.5 | 89.5 | 16 | 0.67 |
| ZHG2150-7 | 3/4 | 4-3/4 | 31.8 | 22.4 | 19.1 | 46 | 60.5 | 115 | 70 | 103 | 20.6 | 1.14 |
| ZHG2150-8 | 7/8 | 6-1/2 | 36.6 | 25.4 | 22.4 | 53 | 71.5 | 135 | 81 | 120 | 24.6 | 1.74 |
| ZHG2150-9 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 60.5 | 81 | 151 | 93.5 | 135 | 25.4 | 2.52 |
| ZHG2150-10 | 1-1/8 | 9-1/2 | 46 | 31.8 | 28.7 | 68.5 | 91 | 172 | 103 | 150 | 31.8 | 3.45 |
| ZHG2150-11 | 1-1/4 | 12 | 51.5 | 35.1 | 31.8 | 76 | 100 | 191 | 115 | 165 | 35.1 | 4.9 |
| ZHG2150-12 | 1-3/8 | 13-1/2 | 57 | 38.1 | 35.1 | 84 | 111 | 210 | 127 | 183 | 38.1 | 6.24 |
| ZHG2150-13 | 1-1/2 | 17 | 60.5 | 41.4 | 38.1 | 92 | 122 | 230 | 137 | 196 | 41.1 | 8.39 |
| ZHG2150-14 | 1-3/4 | 25 | 73 | 51 | 44.5 | 106 | 146 | 279 | 162 | 230 | 54 | 14.2 |
| ZHG2150-15 | 2 | 35 | 82.5 | 57 | 51 | 122 | 172 | 312 | 184 | 264 | 51 | 21.2 |
| ZHG2150-16 | 2-1/2 | 55 | 105 | 70 | 66.5 | 145 | 203 | 377 | 238 | 344 | 66.5 | 38.6 |
| ZHG2150-17 | 3 | 85 | 127 | 82.5 | 76 | 165 | 216 | 429 | 279 | 419 | 89 | 56 |
1.Standard:US type shackle G2150
2.Size: 1/4---2 -1/2
3.Material:carbon steel ,stainless steel ,alloy steel
4.Surface:electro galvanized,hot dipped galvanized,self colored
5.Packing :gunny bags,carton boxes,pallet
6.Special spercifications and marks can be made according to customers' requirments
7.Yours satisfaction is our first aim
Welcome to look through our website:
Please feel free to contact me if you have any questions.
