Wire Rope Clip

Wire Rope Clip thumbnail-1
Wire Rope Clip photo-1
US$ 0.1 - 20 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
grandlifting
Model Number:
stainless steel wire rope clip din 741
Contact Supplier Request Quote Chat Now
Ningbo Grandlifting Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name grandlifting
Model Number stainless steel wire rope clip din 741

Specifications

1. Stainless Steel Wire Rope Clip, Precision Cast.
2. Type: DIN, European, JIS, US, Italian .
3. Materials: stainless steel

wire rope clip







wire rope clip

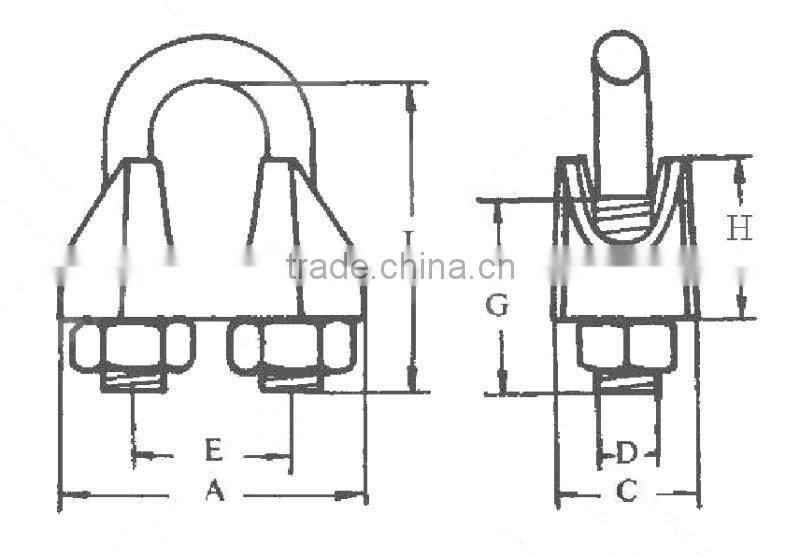

ITEM NO SIZE A E L C D G H
  mm mm mm mm mm mm mm mm
ZHDIN741-1 3 21 9 16.6 10 4 12 10
ZHDIN741-2 5 23 11 19.65 11 5 13 10
ZHDIN741-3 6.5 26 13 23.65 12 5 15 11
ZHDIN741-4 8 30 16 28.85 14 6 19 15
ZHDIN741-5 10 34 19 35 18 8 22 17
ZHDIN741-6 11 36 20 37 19 8 22 18
ZHDIN741-7 13 40 24 46.24 23 10 30 21
ZHDIN741-8 14 44 25 48.24 23 10 30 22
ZHDIN741-9 16 50 29 52.5 26 12 33 26
ZHDIN741-10 19 54 32 64.5 29 12 38 30
ZHDIN741-11 22 61 37 72.5 33 14 44 34
ZHDIN741-12 26 65 41 82.5 35 14 45 37
ZHDIN741-13 30 74 48 95.6 37 16 50 43
ZHDIN741-14 34 80 52 105.6 42 16 55 50
ZHDIN741-15 40 88 58 125.6 45 16 60 55

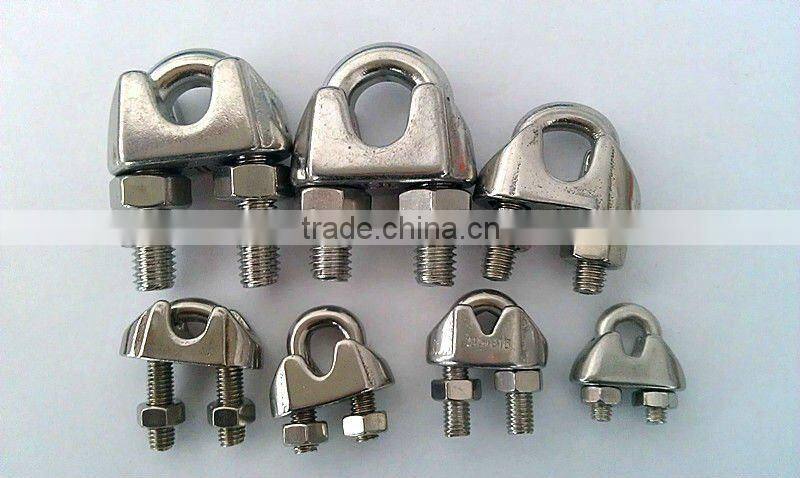

Stainless steel wire rope clips US TYPE forged

1.      Stainless Steel Wire Rope Clip, Precision Cast.

2.      Type: DIN, European, JIS, US, Italian .

3.      Materials: AISI 316, AISI 304

4.      Surface: Polished, Galv, Hot Dipped Ggalv. Self-colored

5.      Size: Customer design are available .

6.      Package: in carton then on pallets



Do not hesitate to contact us!
