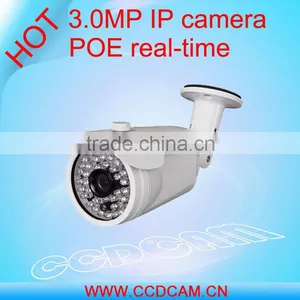

Factory Price WDR Waterproof IR Real Time 3MP Onvif Cctv POE IP Camera for Security System

Name: Factory Price WDR Waterproof IR Real Time 3MP Onvif Cctv POE IP Camera for Security System
Brand: CCDCAM
SKU: 119811587

US$ 1 - 58 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCDCAM

Model Number:

IW6303P

Shenzhen CCDCAM Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

HongKong/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCDCAM

Model Number IW6303P

Type IP Camera

Style Other, Bullet Camera, 3MP realtime waterproof IP camera POE

Sensor CMOS

Technology NetWork

Special Features Waterproof / Weatherproof

factory price WDR waterproof IR real time 3MP onvif cctv POE IP camera for security system

Specifiaction

Feature

> real time 3MP onvif cctv IP camera

>resolution

3MP(2304x1296),25/30fps

4MP(2560x1440),20fps
2MP(1920x1080),30fps

>With 6mm 3MP Fixed Lens

>42pcs IR Leds, 30M IR distance

>Support Onvif Protocol,Mobile phone view

>Support IR-CUT night vision

>Support 3D-DNR, AWB, BLC

>Support POE

Model		EC-IW6303
Camera Type		3.0MP real-time IP Camera
Camera	Image Sensor	1/3" CMOS OV4689 S2L 600MHz/128M DDR3
	Effective Pixels	2560(H)x1440(V)
	Day/Night	IR-CUT filter
	Min.Illumination	Color 0.05Lux/F1.2 , B/W 0.01 Lux/F1.2
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Lens	6mm HD Fixed Lens
	Lens Mount	M12/C/CS Mount
	IR-LED	42pcs 5 IR LED
	Illuminate Distance	40m IR distance
Compression	Compression Standard	H.264 Main Profile/High Profile 5.1
	Video Frames	Real-time PAL/NTSC 3MP@1~25FPS 4MP@1~20FPS
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	HDR	only in 2MP case ,HDR up to 100dB
	Quality	3D-DNR,BLC,AWB,auto ISO
	Resolution	Main Stream: 2560×1440 20fps(4MP), 2304×1296 25fps(3MP),1920×1080(2MP) 30fps
	Resolution	Sub Stream:,640×360,352×288,320×180(1-30fps)
Network	Parameter Settings	WEB configure and OSD supported, Real time recording, Transmission and playback, Download;Motion detection
	Privacy Mask	Support 4 area can be set
	Basic	Anti-flicker, Dual stream, Heartbeat, Password protection
	Protocol	HTTP/Onvif/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/P2P
	Alarm	Support Motion Detection, Linkage Alarm, Linkage recording, Sensor trigger alarm functions
Interface	Video Output	RJ45
Interface	Network Interface	1 RJ45 Ethernet interface, 10/100M adaptation
Other	Work Environment	-10°C- +60°C;≤95%
	Waterproof Criterion	IP66
	Power Supply	DC 12V
	Package Size	20x12x10cm
	Net Weight	0.5kg
If you need Audio, functions, please consult with us.
