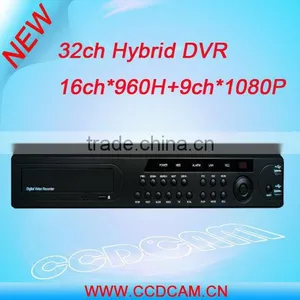

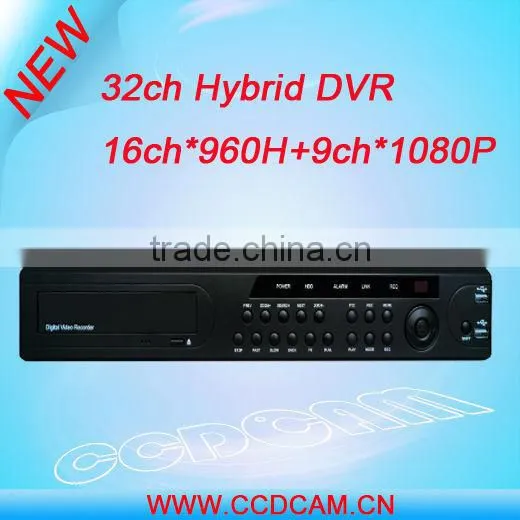

16CH 960H+16CH 1080P HVR DVR/NVR/HVR All in One P2P Cloud Support 4PCS 3TB HDD (HVR8332)

Name: 16CH 960H+16CH 1080P HVR DVR/NVR/HVR All in One P2P Cloud Support 4PCS 3TB HDD (HVR8332)
Brand: CCDCAM
SKU: 119811419

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCDCAM

Model Number:

HVR8332

Shenzhen CCDCAM Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCDCAM

Model Number HVR8332

Specifications

* 16CH 960H+16CH 1080P HVR
* Embedded linux operating systerm
* Support 4PCS 3TB HDD
* Support P2P Cloud Function

* 16CH 960H+16CH 1080P HVR
* Embedded linux operating systerm
* Support 4PCS 3TB HDD
* Support P2P Cloud Function

HVR8332: H.264 Hybrid Video Recorder

Products Decription

Features:

•Record Resolution 16CH 960H+16CH 1080P record

• Support P2P cloud, HDMI FHD Output
•Support search, playback, backup the recording files according to events;

•Support smart search in self-defined areas when playback;

•Support 16ch playback

•Supports a variety of mobile devices;
•CMS centralized network management software.

Specifiation:

Model	HVR8332
Support embedded Linux OS Support BNC and IPC Sync Input Support VGA ,HDMI,CVBS Sync video output VGA,HDMI image resolution Max to 1920*1080 Support HD preview, all channels support Main stream Support Zoom function of preview and playback Support event,playback,backup recording ,support picture playback and search Support One-key recording Support fast playback Support P2P Support 4ch 960P simultaneous playback
System
Main processor	High performance embedded microprocessor
Operating system	Embedded LINUX OS
Video spec.
Video compression format	H.264
Display Image Resolution	D1@30fps;720P@30fps;960P@30fps
Playback Image Resolution	D1@30fps;720P@30fps;960P@30fps
Motion Detection	can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable)
Privacy Masking	Support
Audio spec.
Audio compression format	adpcm, G711
Two-way audio	N/A
Recording Mode
Recording Mode	Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
Recording storage	HDD,Network
Frame rate	30 fps NTSC;25fps PAL
Recording Playback	Max support 4ch 960P synchronously playback
Backup Mode	Support HDD,USB Flash Disk store & backup

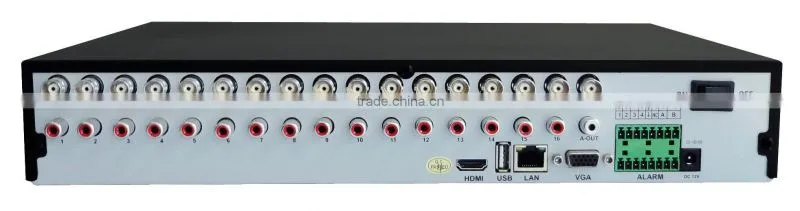

Video
Video Input	16CH BNC, 16CH 960P IPC
Video output	1ch CVBS(BNC), 1ch VGA and 1ch HDMI
Audio
Audio Input	16ch BNC
Audio Output	1ch
Alarm
Alarm Input	16ch Alarm input
Alarm Output	4ch Alarm Output
Other
Network	1x100Mbps,RJ45 port;
RS485	Standard 485 port,support half-duplex, green terminal port
USB	2 USB 2.0 ports
