P2P Function Network H.264 Standalone 20ch Hybrid Digital Recorder(HVR8320)

P2P Function Network H.264 Standalone 20ch Hybrid Digital Recorder(HVR8320) thumbnail-1
P2P Function Network H.264 Standalone 20ch Hybrid Digital Recorder(HVR8320) photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCDCAM
Model Number:
HVR8320
Contact Supplier Request Quote Chat Now
Shenzhen CCDCAM Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CCDCAM
Model Number HVR8320

Specifications

20ch Hybrid recording
16*960H+9*1080P
support 4 pcs hdd
p 2 p function supported

Packaging & Delivery

Packaging Details: 700X508X480mm(5pcs/Ctn)
Delivery Detail: 3-7 days

Specifications



20ch Hybrid recording
16*960H+9*1080P
support 4 pcs hdd
p 2 p function supported



20ch Hybrid HVR

Support 2 pcs HDD

Support 16CH 960H, and 4ch 1080P



Model HVR8320
Support embedded Linux OS
Support BNC and IPC Sync Input
Support VGA ,HDMI,CVBS Sync video output
VGA,HDMI image resolution Max to 1920*1080
Support HD preview, all channels support Main stream
Support Zoom function of preview and playback
Support event,playback,backup recording ,support picture playback and search
Support One-key recording
Support fast playback
Support P2P
Support 4ch 1080P simultaneous playback
System
Main processor High performance embedded microprocessor
Operating system Embedded LINUX OS
Video spec.
Video compression format H.264
Display Image Resolution D1@30fps;720P@30fps;960P@30fps;
1080P@30fps
Playback Image Resolution D1@30fps;720P@30fps;960P@30fps;
1080P@30fps
Motion Detection can setup 192(16×12)pcs motion detection area
each channeland multi-level sensitivity(1-6 levels adjustable)
Privacy Masking Support
Audio spec.
Audio compression format adpcm, G711
Two-way audio N/A
Recording Mode
Recording Mode Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording
Recording storage HDD,Network
Frame rate 30 fps NTSC;25fps PAL
Recording Playback Max support 4ch 1080P
synchronously playback
Backup Mode Support HDD,USB Flash Disk store & backup
Video
Video Input 16CH BNC, 4CH 1080P IPC
Video output 1ch CVBS(BNC), 1ch VGA and 1ch HDMI
Audio
Audio Input 16ch BNC
Audio Output 1ch
Alarm
Alarm Input 8ch Alarm input
Alarm Output 1ch Alarm Output
Other
Network 1x100Mbps,RJ45 port;
RS485 Standard 485 port,support half-duplex, green terminal port
USB 2 USB 2.0 ports
HDD support 2 SATA HDD
Power DC +12V /6A
Power consumption 16W-20W(not include HDD)
Operation temperature 0℃-+55℃
Operation humidity 10%-90%
Demension 365mm * 426mm * 65 mm(1.5U hight)
Weight 3.5---4.05KG(not include HDD)

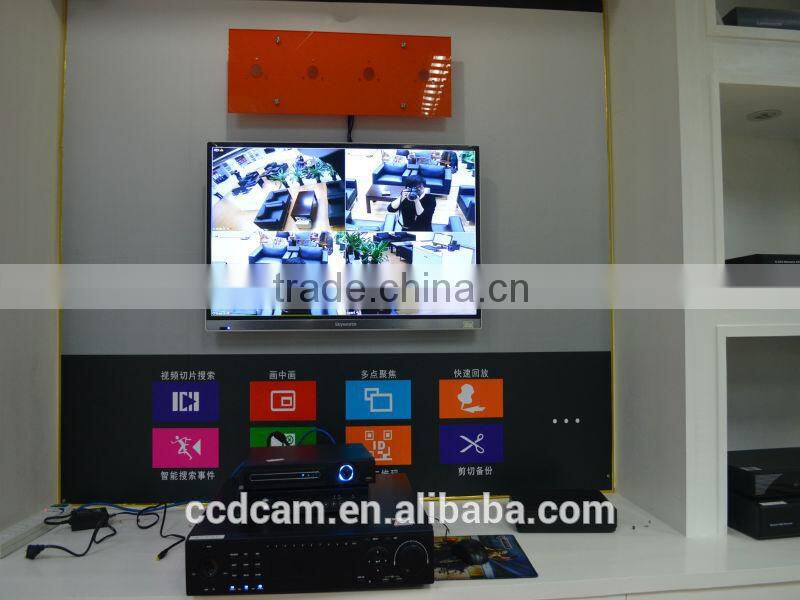

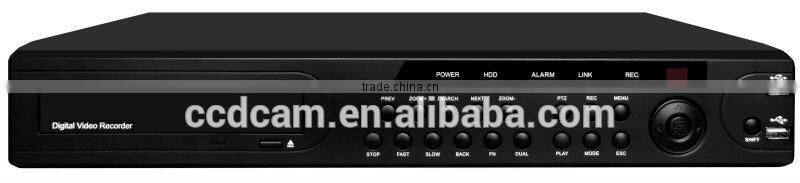

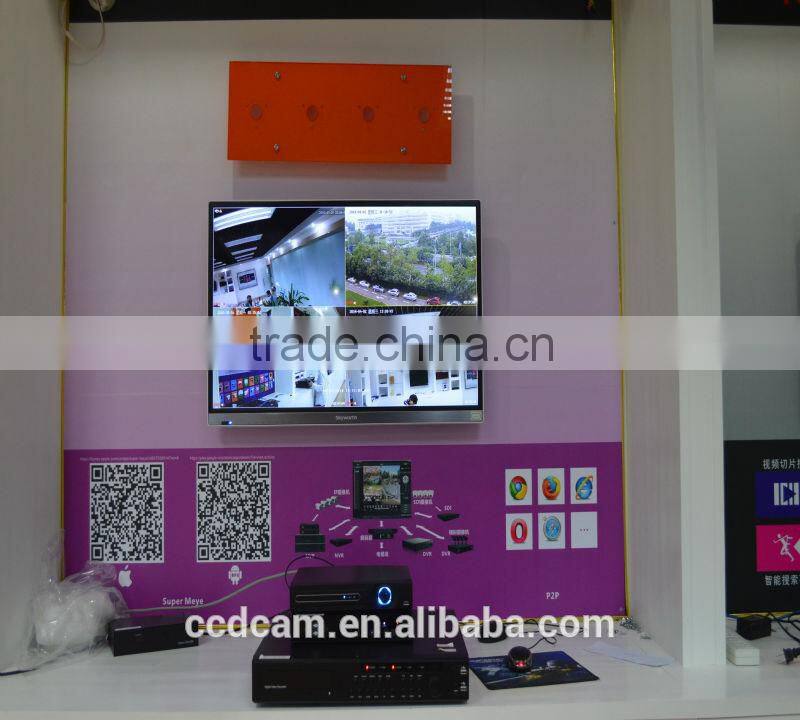

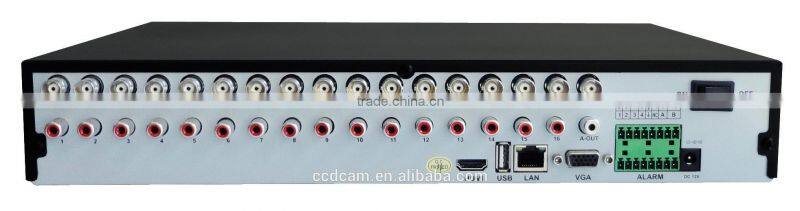

Products picture:

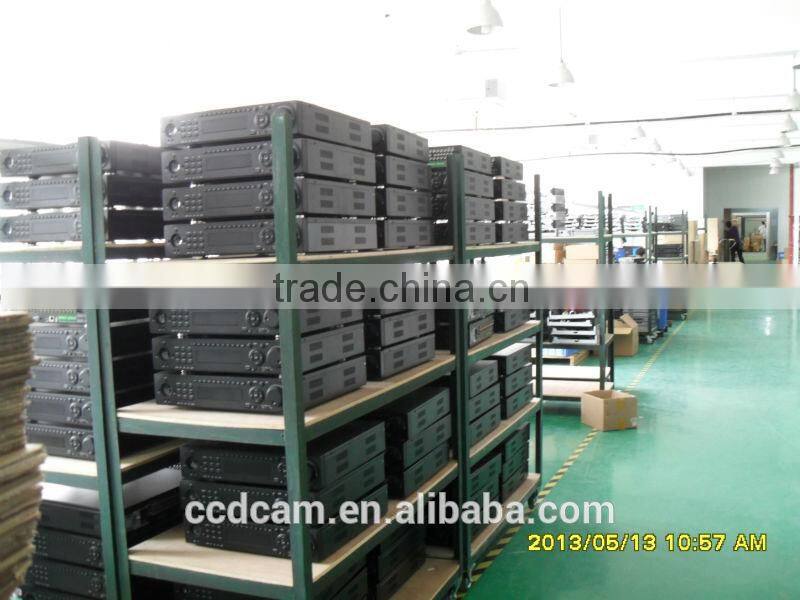

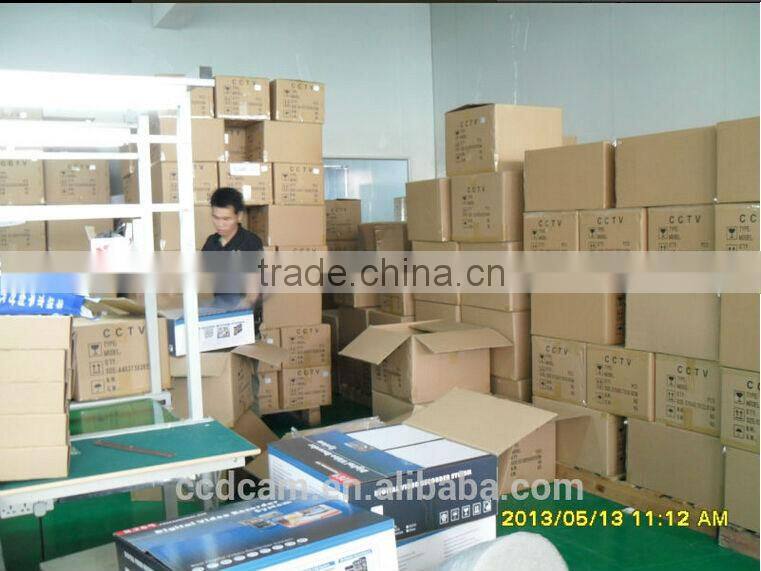

Factory picture:

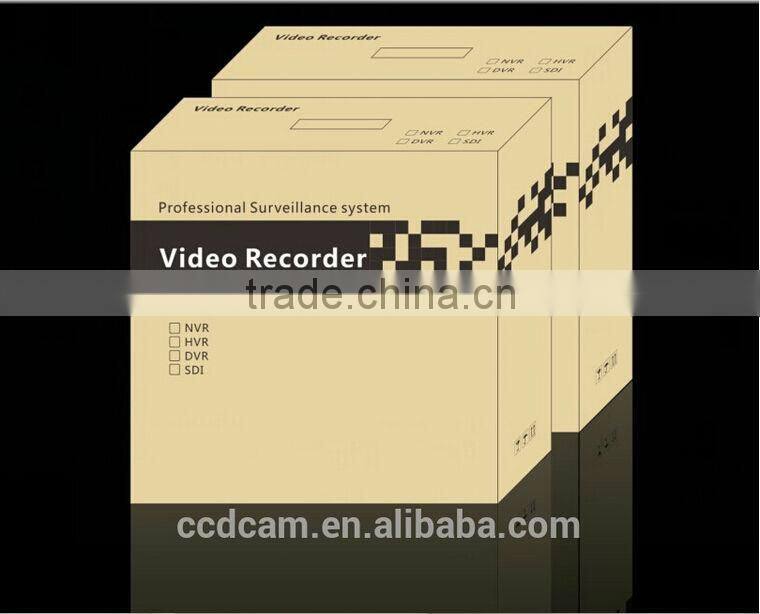

Packing:

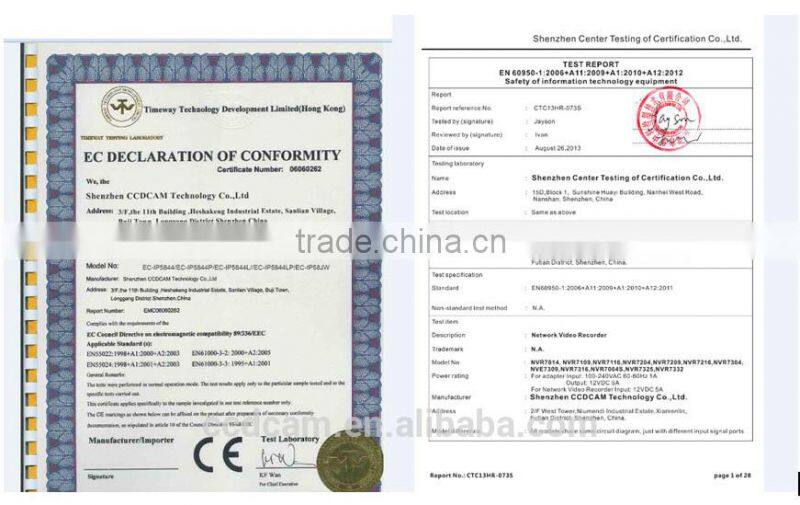

CE certificate:
