STCERA Alumina Ceramic Parts Precision Parts Electronic Push Pin
- Shenzhen
- T/T
You May Like
-

                        STCERA Alumina Industri Parts Ceramic Heater Textile Ceramic Parts Lift Pin
-

                        STCERA Technical Ceramic Pin Holder, Semiconductor Equipments Parts
-

                        STCERA Technical Precision High Quality Insulation Alumina Ceramic Lift Pin
-

                        STCERA Technical Alumina Al2O3 Ceramic High Qualiti Insulating Lift Pin Ceramic Pin
-

                        STCERA Pin Insulator Alumina Ceramic Substrate Lift Pin
-

                        STCERA Industrial 99.5% Alumina Ceramic Pin Holder
Product Details
| Place of Origin | Hunan, China | |||
| Application | Industrial Ceramic | |||
| Model Number | ST201509095 | Brand Name | STCERA |
Product Description

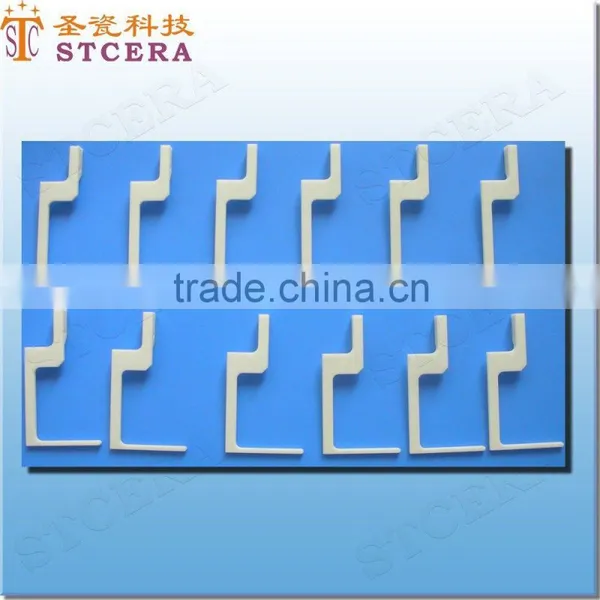

STCERA Alumina ceramic parts precision parts electronic push pin
Product Pictures Show
More products to choose
---------------------------------------------------Ceramic Robot Arm--------------------------------------
----------------------------------------------------------------Ceramic Rod------------------------------------------------------------------
---------------------------------------------------------------Ceramic Plate------------------------------------------------------------------
--------------------------------------------------------Industrial Ceramic Parts----------------------------------------------------------
Material data sheet
| Properties | Unit | Alumina | Zirconia | ||||
| 96%Al2O3 | 99%Al2O3 | 99.5%Al2O3 | 99.8%Al2O3 | 99.9%Al2O3 | 3Y-TZP | ||
| Colour | - | White | White | Ivory | Ivory | Translucent | white/black |
| Bulk density | g/cc | 3.78 | 3.88 | 3.93 | 3.93 | 3.98 | 6.03 |
| Water Absorption | % | 0 | 0 | 0 | 0 | 0 | 0 |
| Grain size | μm | 5-10 | 2-5 | 2-5 | 2-5 | 2-4 | 0.4 |
| Bending strength | MPa | 380 | 350 | 360 | 380 | 300 | 1000 |
| KIC | MPa.m1/2 | 3~4 | 4 | 3~4 | 3~4 | 3~4 | 5~8 |
| Vickers Hardness | GPa | 13 | 14 | 14.5 | 14.5 | 15 | 13 |
| Young's Modulus of Elasticity | GPa | 360 | 370 | 370 | 380 | 390 | 200 |
| Thermal Conductivity | W/m° K | 24 | 28 | 32 | 32 | 34 | 2 |
| Coefficient of Linear Expansion | 10-6/°C | 6.7 | 7.2 | 7.2 | 7.2 | 7.2 | 10.5 |
| Dielectric Constant (1MHz) | - | 9.1 | 9.5 | 9.6 | 9.6 | 9.9 | 33 |
| Dielectric Loss Angle (1MHz) | - | 0.0002 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.002 |
| Dielectric Strength | V/m | 15×106 | 15×106 | 15×106 | 15×106 | 15×106 | 11×106 |
| Volume Resistivity | Ohm.cm | >1014 | >1014 | >1014 | >1014 | >1014 | 1013 |
| (RT) | |||||||
Advanced equipments and Exquisite Machining Process
Quick Details
| Place of Origin: | Hunan, China (Mainland) |
| Type: | precision ceramic parts |
| Color: | White or Ivory |
| MOQ: | 1 piece |
| Material: | Alumina(Al2O3)Ceramics/Zirconia(ZrO2)Ceramics |
| Testing Way: | Quality Control |
| Including Shape: | Tube, Rod, Plate, Ring and so on |
| Main products: | Precision Alumina & Zirconia Ceramic Tube, Ceramic Rod, Ceramic Plate, Ceramic Ring |
| Main Properties: | Wear Resistant, Electrical Insulator, Resist High Temperature |
| Practical Application: | Semiconductor devices/Medical equipment/Electronics/LED |
| Main Forming Way: | Molding/Sintering/Dry Press/high-temperature sintering/grinding/polishing etc |
| Samples: | Custom-made is acceptable,we can provide free sample when we have the sample in stock |
| Payment: | 30% deposit in advance, the balance paid before shipment. |
| Payment Terms: | T/T, L/C, Paypal |
Packaging & Delivery
| Packaging Details: | 1. Carton with Bubble bag or foam. |
| Delivery Details: | 1. 3-25 days for sample  |
| Shipment Terms: | 1. Small order: By express, DHL/ UPS/ Fedex/ EMS etc. |
About Hunan STCERA Co.,Ltd
| About us | 1. Welcome custom-made and sample firstly;
 2. All products must pass the inspection by professional QC team; Quality guaranteed,
 3. Good After Sales service: We have responsible after sale service staff to contact
 4. STCERA Principle: Honest Operation, Customer satisfaction, Talents oriented,
 |
| About our company | 1.Hunan STCERA Co., Ltd. is a private technological enterprise which is professional in
 2. We have our own brand and factory,With a whole set of equipments;
 3. The most advanced equipments we have: Dry pressing molding, cold isostatic press  complicate shape products CNC machining and so on;
 4. We also have the most professional precision ceramic and super hard Material specialists and technician team. |
Pictures of our industrial park
| 1. How we get an offer? |
| You can send your drawing with technology requirements and the quantity you need. If you can, pls inform what’s application of your part? We will quote for you asap.
 |
| 2. can you provide sample order? |
| Yes, custom-made sample is acceptable. We can also provide free sample when we  have the sample in stock as customer requirement with freight collected.
 |
| 3. What materials do you have? |
| high purity(95%,96%,97%,99%,99.5%,99.8%) Alumina(Al2O3), Zirconia(ZrO2), Silicon Nitride.
 |
| 4. What's your best selling products? |
| ceramic tube, ceramic rod, ceramic plate, ceramic ring |
