Help CenterPermanent Magnetic Lifter
US$ 0.1 - 100
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
grandlifting
Model Number:
permanent magnetic lifter
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
grandlifting
Model Number
permanent magnetic lifter
Type
Permanent
Composite
Ferrite Magnet
Shape
Block
Application
Industrial Magnet
Specifications
1. LIFTING MAGNETIC LIFTER2. high safety factor: 3.5:1
3. According to EN13155 STANDARD
| Item No. | Rated Lifting Capacity | Dimensions mm | Max Breaking Force | |||
| kg | L | B | H | R | N | |
| ZHML-0.1T | 100 | 92 | 62 | 67 | 126 | 350 |
| ZHML-0.3T | 300 | 162 | 92 | 91 | 150 | 1050 |
| ZHML-0.6T | 600 | 232 | 122 | 117 | 196 | 2100 |
| ZHML-1T | 1000 | 258 | 176 | 163 | 284 | 3500 |
| ZHML-2T | 2000 | 378 | 234 | 212 | 426 | 7000 |
| ZHML-3T | 3000 | 458 | 286 | 264 | 521 | 10500 |
| ZHML-6T | 6000 | 600 | 430 | 355 | 180 | 19200 |

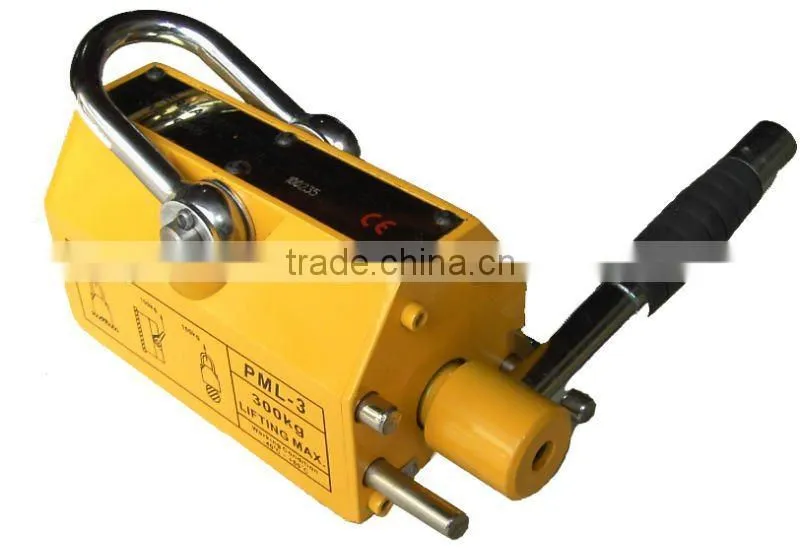

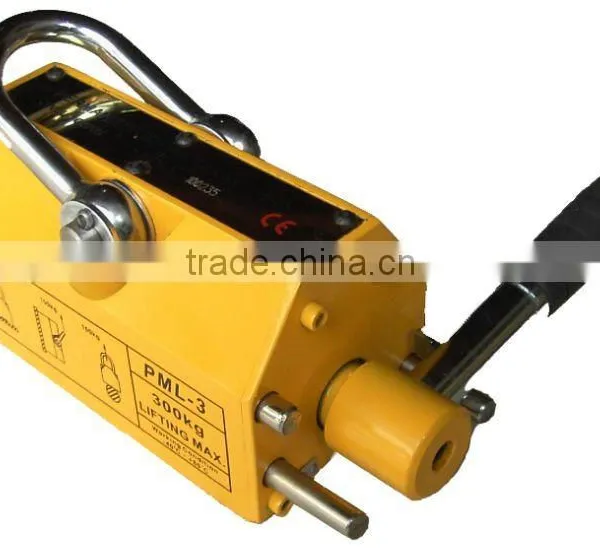

our permanent magnetic lifter
Adopted with new generation high engergy magnetic material, it has the advantage of high attractive force, small in volume and light in self weight: easy operating and safe in operation. It
is suitable for lifting, handling and pulling up of steel workpieces and raw material under normal temperature condition without making any mark to the workpieces.
high safety factor: 3.5:1

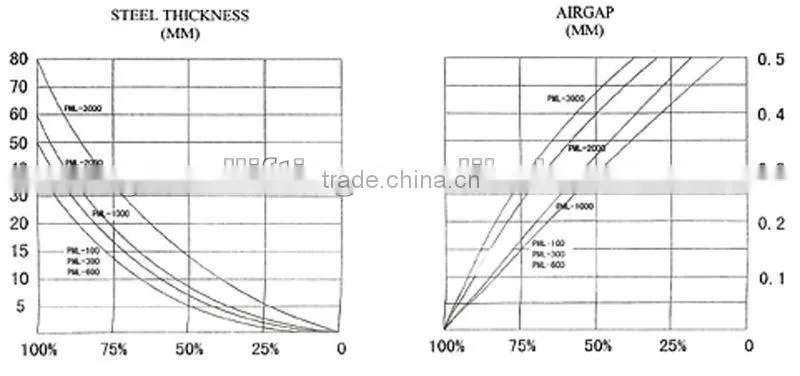

Good air gap feature, the rated plain load could still be attracted up even if the gap is smaller than 0.5mm
Easy operating long term attractive force stablity.
According to EN 13155 STANDARD
