Help CenterPUR Steel Laminating Machine
Related Products
Steel coated production line TMD
Characteristic and usage
This production line adopts wet curing reactive polyurethane hot melt(PUR),stick adornment material such as PVC, PE,PET,PETG on the whole roll steel , galvanized sheet , aluminum plate and so on , it can bended. punched after laminating curing .
Technical specification
| Mode specification | 240x1350mm |
| Board length | 600 - unlimited |
| Board width | 1220mm |
| Board thickness | Coil -0.3-1.5mm , Sheet -1.8-35mm |
| Feeding speed | 1-25m/min |
| Motivity power | 24kw |
| Heating power | 63kw |
| Paper width | 1280mm |
| Overall dimensions | 36000x2130x1800mm |
| Machine weight | 15000kg |

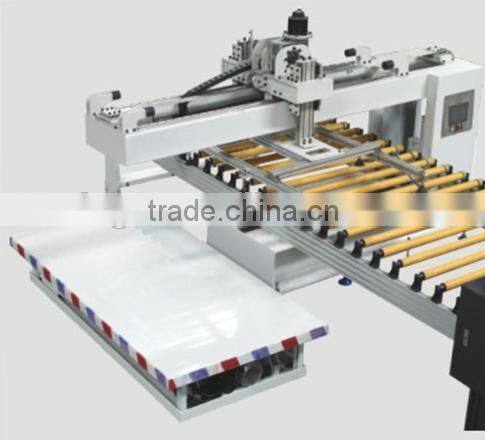

Automatic loader and unloader device
Technical specification:
| Board length | 280~2400mm |
| Board width | 200~1220mm |
| Board thickness | 10~60mm |
| Max.weight of Board | 100kg |
| ing cycle | 8times/min |
| Voltage | 380V |
| Frequency | 50/60HZ |
| Heap board prcision | less than 5mm |
| Total height | Within 1300mm |
| Feeding speed | 0~30m/min(Frequency control) |
X axis and Y axis drive : Domestic worm gear reducer motor
Feeding conveyor
Translational slide rail : linear slide rail ,move back and forth ,
Synchronous belt : Domestic high torque synchronous belt
Pneumatic components and air tube : Taiwan AIRTAC
Touch screen : Schneider
Pull over device : Roller are covered by rubber , the roller spacing can adjust and tilt .
Suction : every automatic loader with 4 vacuum generator , every vacuum generator control 4-8 suckers, the max suction of sucker is 20 kg .
Table dimension : 2200*1120mm,
The max.load capacity : 3T,
lifting stroke: 45mm;
