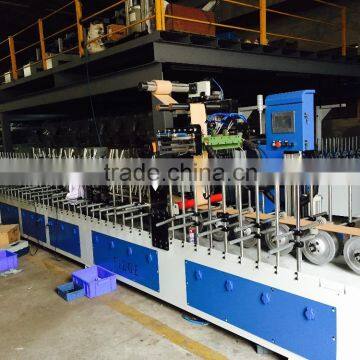

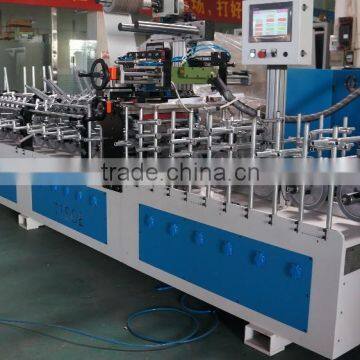

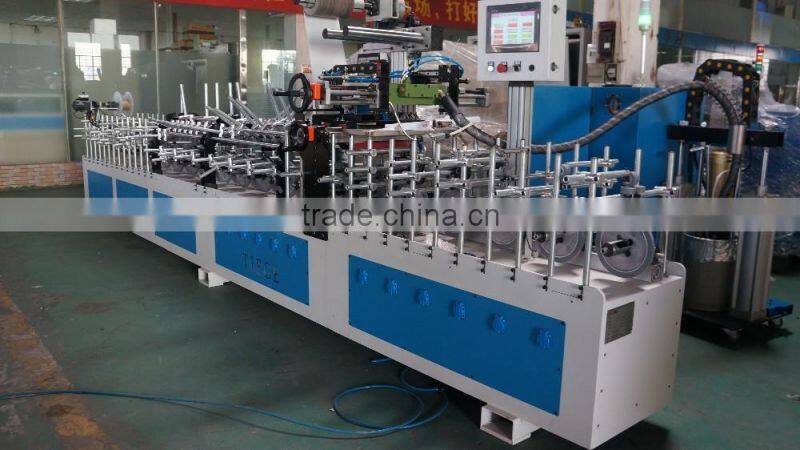

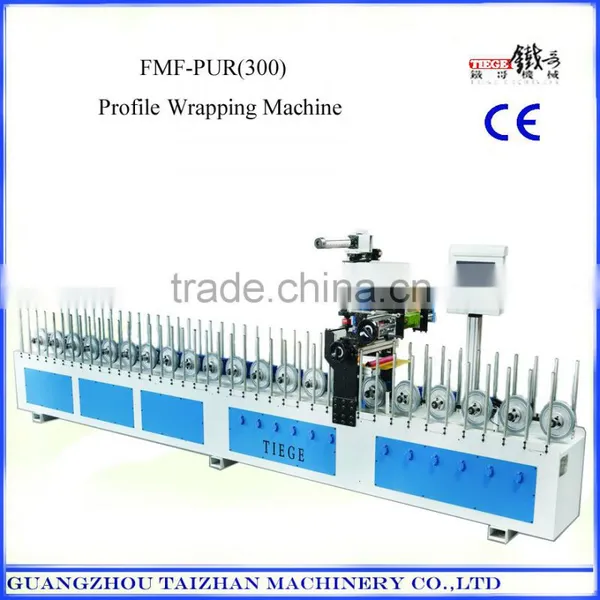

PUR profile wrapping machine :
( Wrapping PVC / high glossy PVC / leather / paper /veneer /aluminum foil / Leather / CPL on MDF, particle board, plywood ,PVC ,WPC ,aluminum, plastic steel .)
Specification:
1)With a 5 gallon PUR hot melt glue system.
2)Glue cutter , can divide and close in middle.

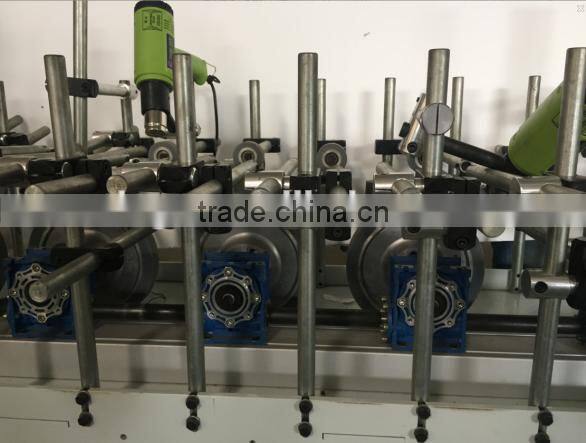

3)Stud adjust press roller.
4)Electric brand，PLC: France brand, Schneider,Pneumatic brand: Taiwan Airtac .
1、Sealing glue cutter ,spread glue on the film ,can control the width of spread glue better, can wrap any profile , it’s easy adjust width , just need to divide from middle to both sides, after finish working need to close and sealing by scotch tape .
2、The whole knife base is butterfly screw can be adjusted and moved, you can optionally adjust during productive process to alignment the glue mouth with film .
3、The fix glue cutter can be turned by transducer ,if you need to adjust little glue quantity ,you can make glue cutter to be tilt so that make glue quantity more uniform .If the film is more thin ,it can reduce resistance ,to prevent the film broken .
4、If the profile height is different ,you can adjust screw rod.

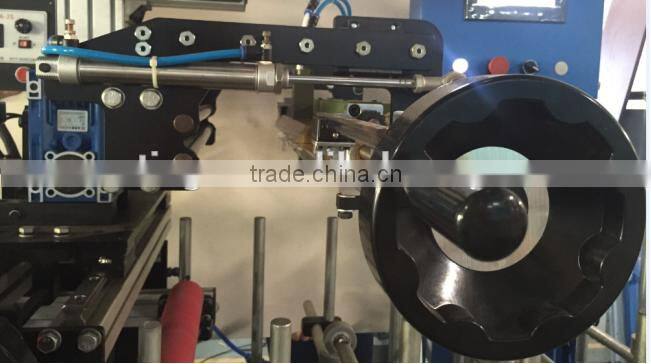

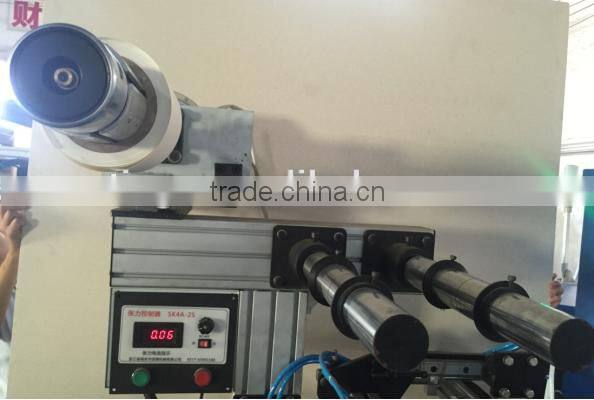

5、Brake by magnetic powder brake and tension control instrument ,efforts to control stability ,the magnetic powder brake is 2.5kg .

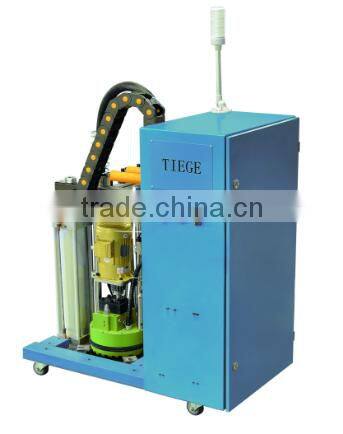

5 gallon PUR hot melt glue system , this machine use PUR glue ,after glue melting through high temperature arrived to glue cutter and spread , melting speed according to the production speed of machine to automatic adjust glue output, before the glue through the glue cutter , it need to through the filter twice ,so there won’t be particles and make glue line when spread glue .

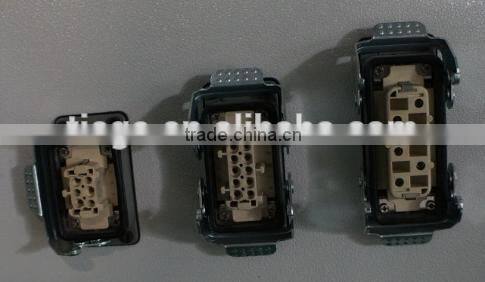

The hot melt glue system and machine wire butt joint by adopt aviation socket ,it’s easy operate .

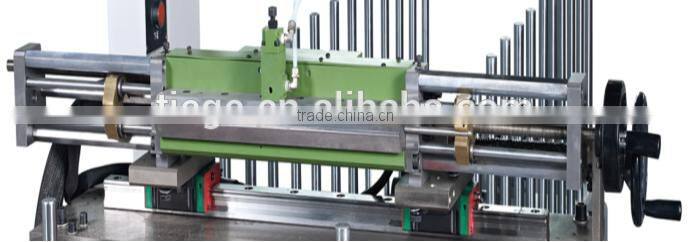

Quick divide and close ：according to the different width of profile to adjust , through the handle shaking to divide and close , it’s easy to operate .

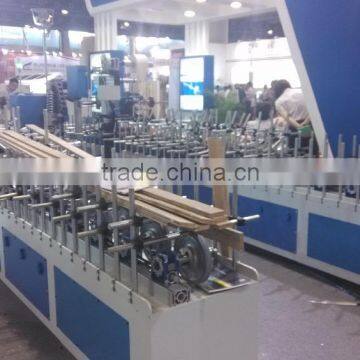

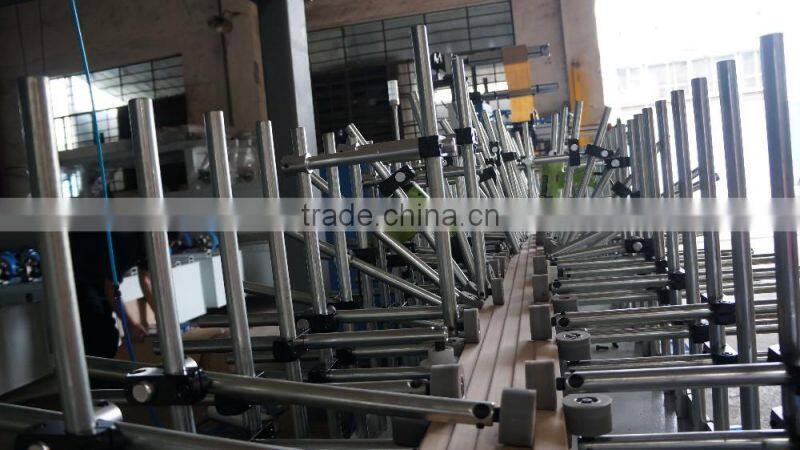

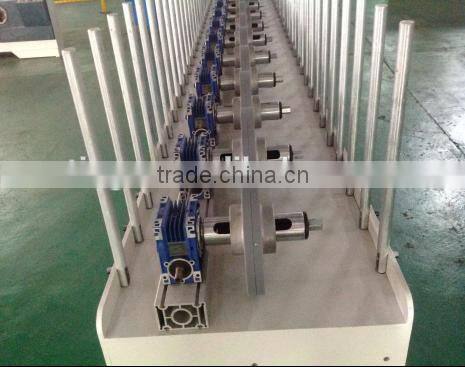

Linear profile wrapping picture, according to different profile make different adjust , profile must be parallel between line and line , the max width of cover film is 320mm .

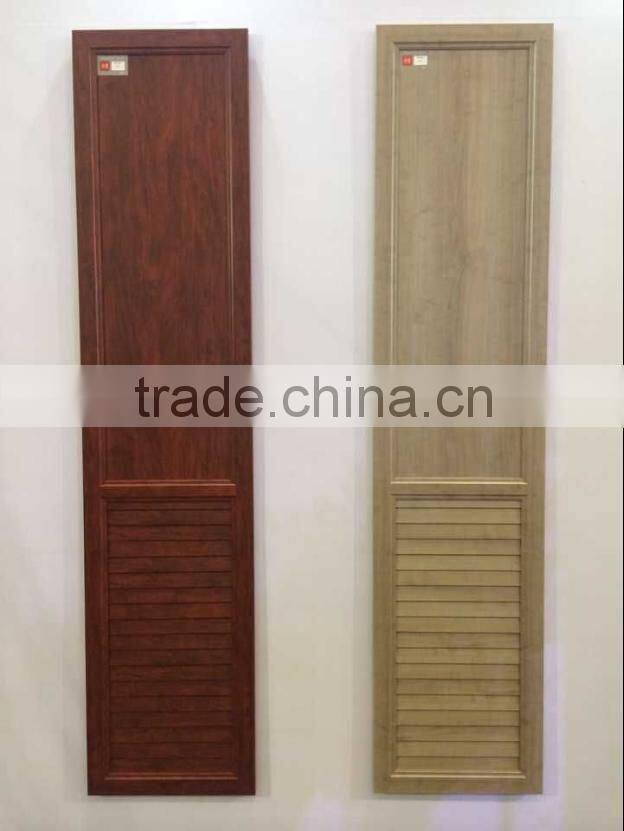

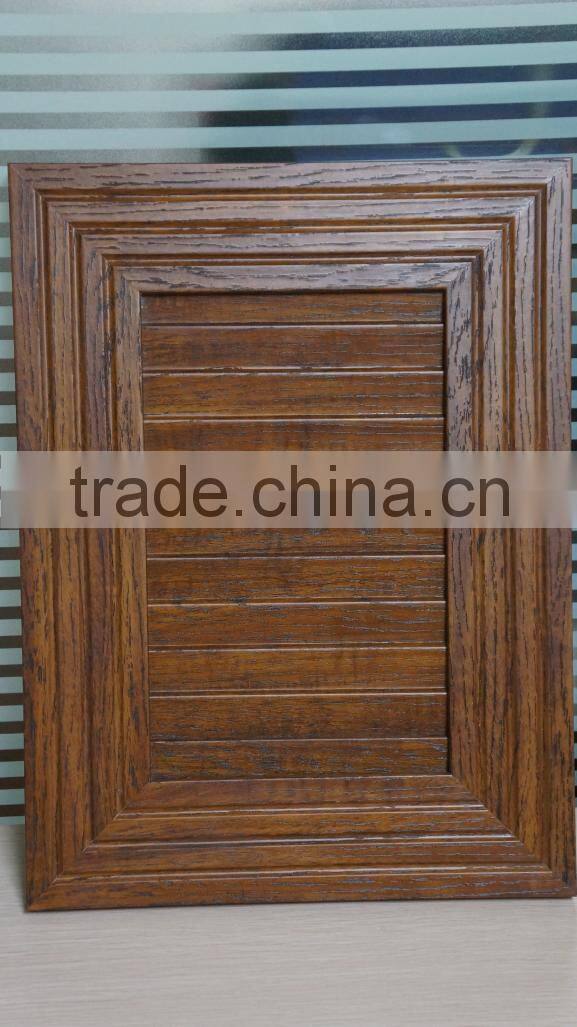

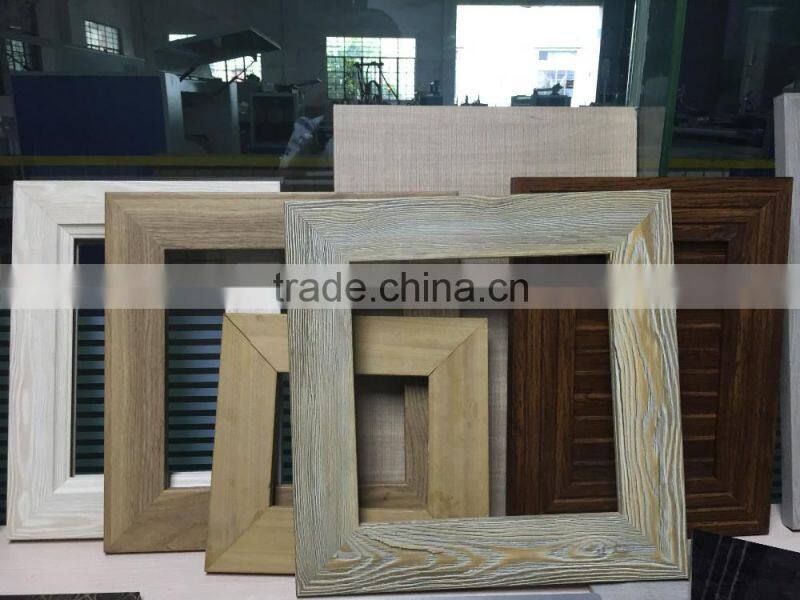

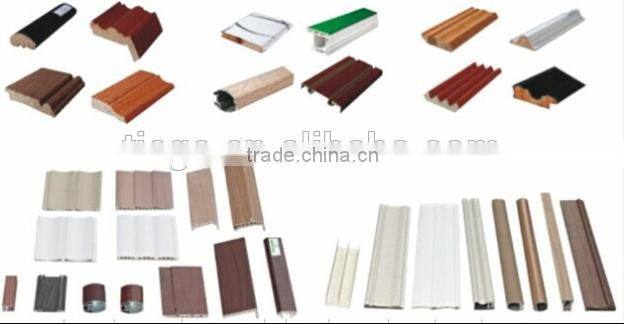

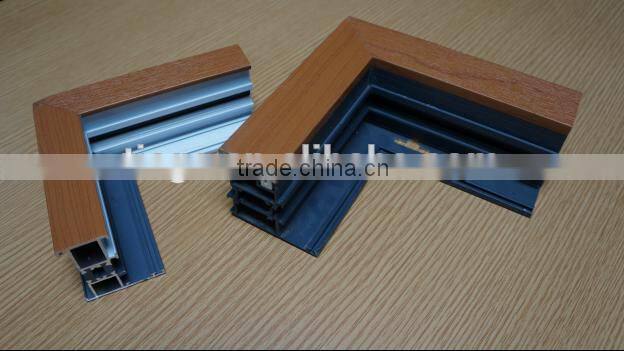

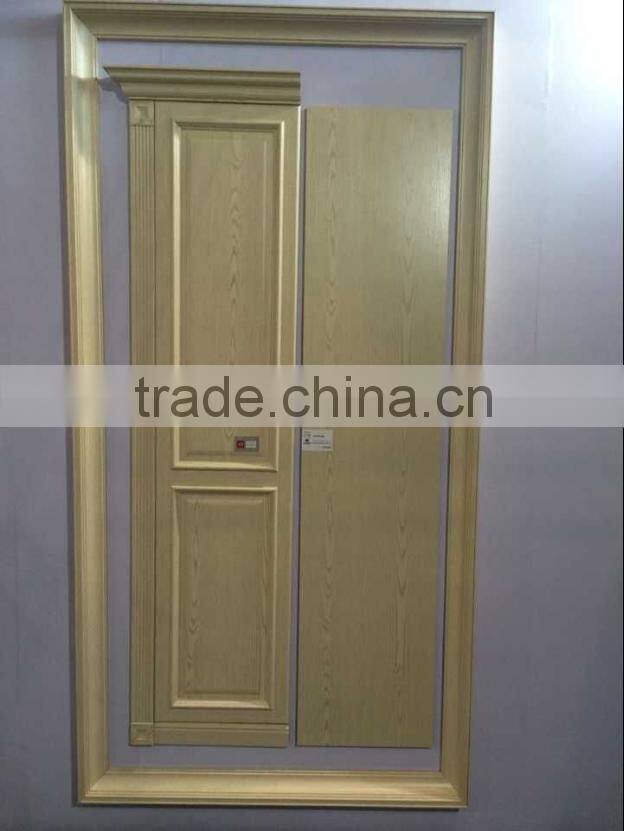

Production sample .
