Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > ET-560T 5.6 Inch HD CCTV Tester With Monitor for For CCTV Installation,on-site Demonstration and Testing

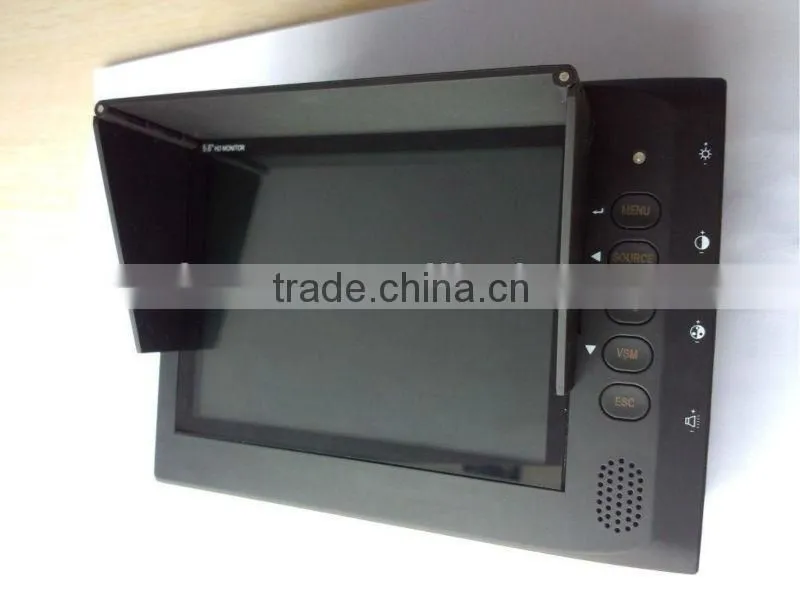

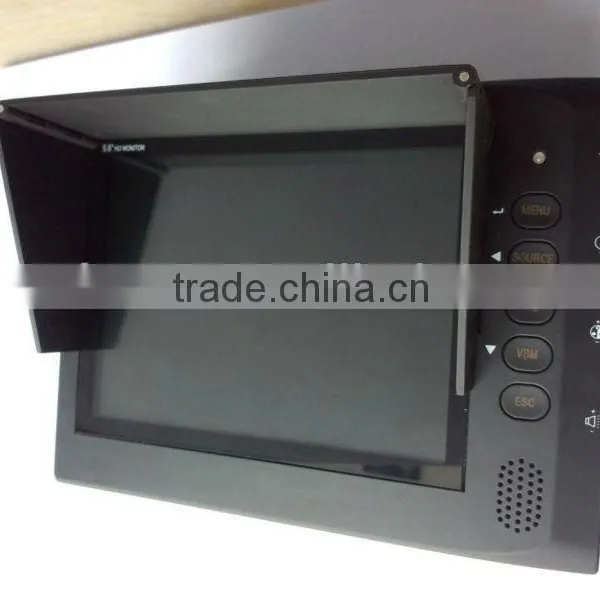

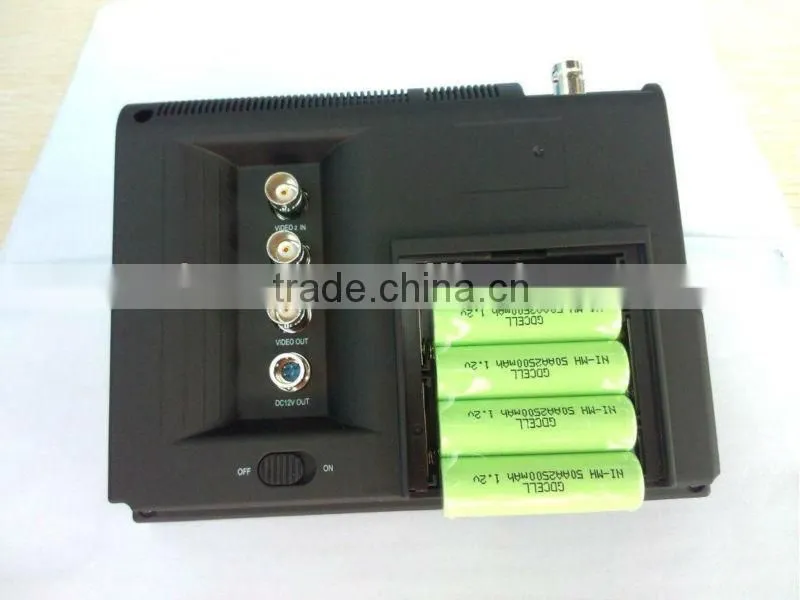

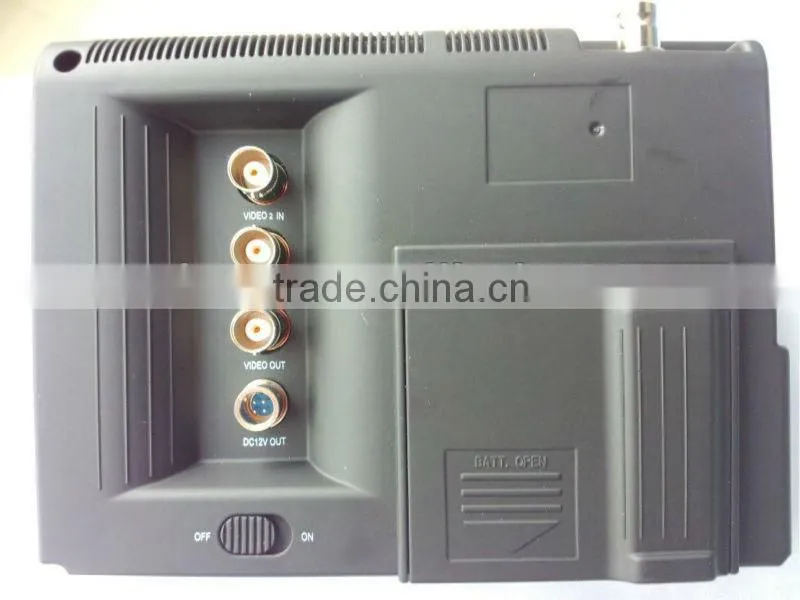

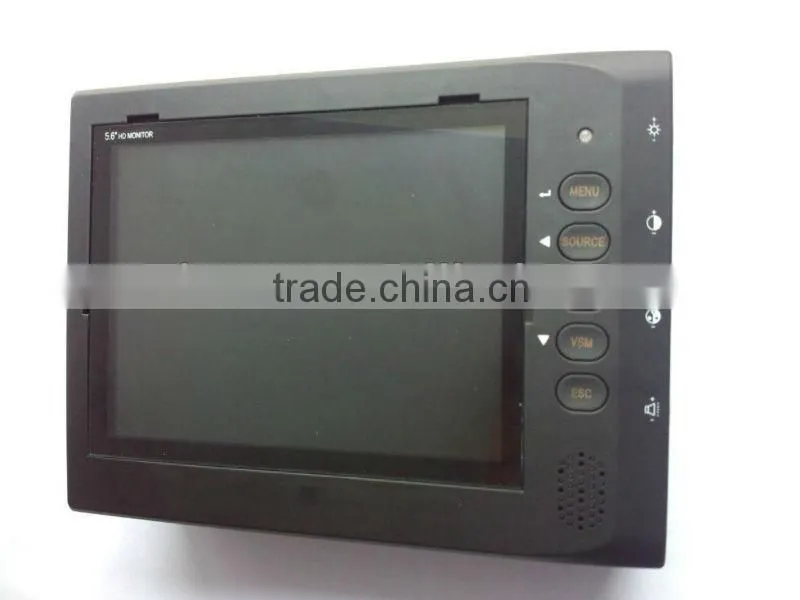

ET-560T 5.6 Inch HD CCTV Tester With Monitor for For CCTV Installation,on-site Demonstration and Testing
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCDCAM
Model Number:
ET-560T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ET-2602T 3.5" Multifunction CCTV Tester for CCTV SystemNegotiableMOQ: 1 Piece -
ET-2601T 3.5" Multifunction CCTV Tester With Cable Tracking and TDR Testing for CCTV SystemNegotiableMOQ: 1 Piece
-
EU-612A Cctv Passive Utp Balun Waterproof Video Balun Cctv BalunNegotiableMOQ: 1 Piece
-
CCTV Utp Active Video Balun for Cctv Camera System Surveillance Camera KitNegotiableMOQ: 1 Piece
-
High Quality Image Video Transmission Via UTP CAT5 Passive Video Balun for Cctv System Security EquipmentNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CCDCAM
Model Number
ET-560T
Type
Digital Camera
Style
Other
Sensor
Other
Technology
Infrared
Special Features
Other
Specifications
CCTV installation,on-site demonstration
and testing
| MODEL NUMBER | SPECIFICATION | ||||
| ET-560T | Display area | Color 5.6" LCD (LED backlight) | |||
| resolutions | 640(H)*480(V)mm(4:3) | ||||
| FEATURES | Display model | HDMI,VGA ,Video1,Video2,Testpattern, | |||
| Resolution 640x480pixels | Back light type | LED back light | |||
| Lightweight & compact size | Brightness | 300cd/m2 | |||
| NTSC/PAL auto recognition | Contrast ratio | 500:1 Typ | |||
| 2 BNC ,1HDMI,1VGA input and 1 audio input | Viewing angle | L/R :70°/70°; Up/Down:50°/70° | |||
| Test pattern generator | Stands/bracket supported | 1/4"standard screw mount on bottom | |||
| Multi-language support OSD | Power requirements | AC Input:100~240V/1.5A,50/60Hz | |||
| Carrying strap and travel case(Optional) | Power consumption | 14W | |||
| Rechargeable battery and AC adaptor | Rechargeable battery | 2500mAh | |||
| Anti-scratch & anti-reflectiveness visor | Actual visible screen size | 5.6" (112.896(H) 84.672mm(V)) | |||
| Last memory for settings when powered off | Signal input | 1xHDMI input | |||
| Provided with tempered glass against damage to screen | 1xVGA input | ||||
| Power saving while no signal input | 2xBNC Inputs | ||||
| For CCTV installation,on-site demonstration and testing | 1xAudio Input | ||||
| Test pattern generator | Output | 1 BNC ouput | |||
| 1 DC12V ouput | |||||
| Optional items: | Carrying case | ||||
| Sun visor | |||||
