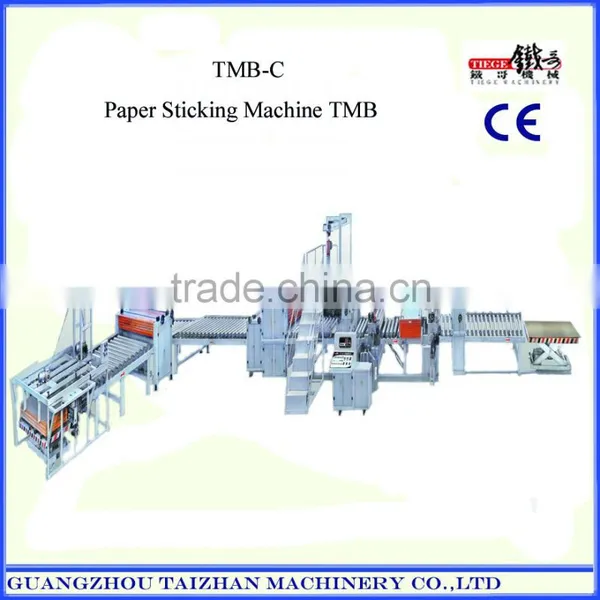

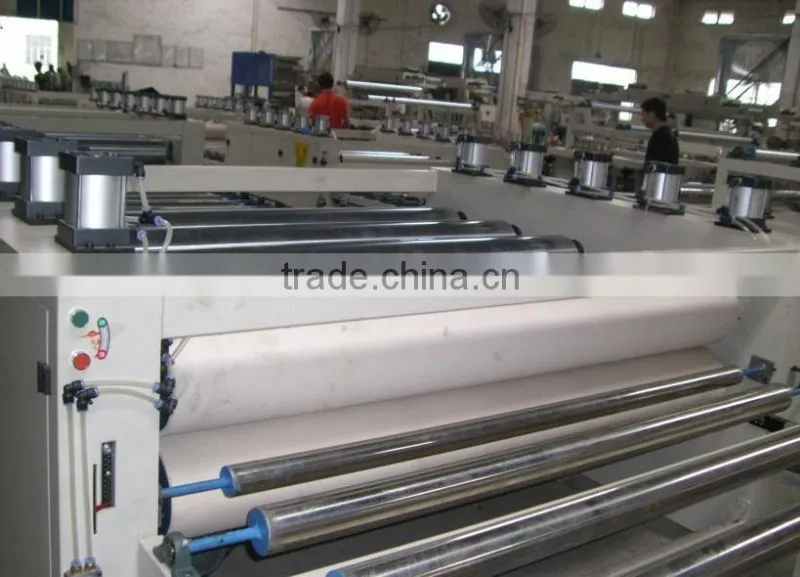

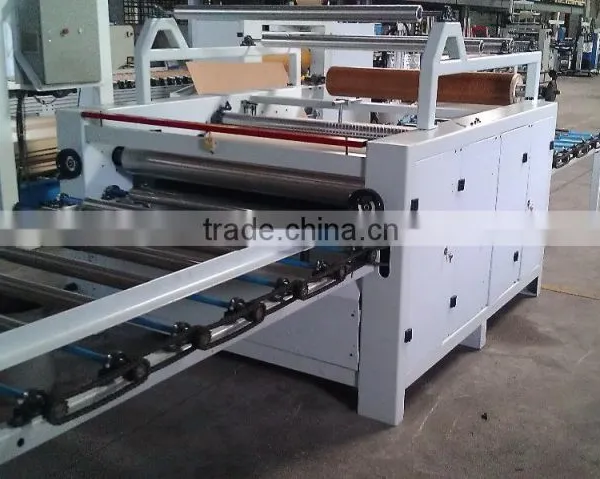

Panel Laminating Machine in Woodworking Machine Characteristic and usage:
1> TMC Paper Sticking(PVC) Machine is suitable for medium and small sized specialized manufactures, furniture and Hi-fi plant. It has such advantages as sticking paper without wrinkle and bubbles and high quality,etc.
2>With the features of advanced technical index,high precision,reasonable layout,novel structure, handy operation and advanced international level, it is the ideal choice for sticking paper or PVC on timber.
3>Equiment configure:front and rear convey plate equipment, spread glue equipment,paper sticking and holding equipment,automatic cutting paper equipment, hot press equipment.
Technical specification:
1> Mode specification: 190*1350mm
2> Board length: above 600mm
3> Board width: 1220mm
4> Board thickness: 2-30mm
5> Rate of material deliver: 5300mm/min
6> Principal axis roller diameter: 190mm
7> Motivity power: 1.5kw
8> Heating power: 4kw
9> Paper width: 1280mm
10> Structure size: 6500*1900*1700mm
11> Machine weight: 3000kg
