Cheap Cctv ip Camera Kit With Nvr Kit 4 Camera
US$ 100 - 199
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCDCAM
Model Number:
NVR704
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lowes 3g Home Security Video Phone ip Camera With Sim Card Quality ChoiceUS$ 110 - 210MOQ: 1 Piece -
High Quality 4mp Real Time 100m IR Waterproof Laser IP CameraUS$ 105 - 150MOQ: 1 Piece
-
Best Selling Cctv 2megapixel Remote Control Wifi Bullet Network ip Camera OutdoorUS$ 80 - 110MOQ: 1 Piece
-
Onvif 2mp Real Time Outdoor Long Distance Wireless Video Transmitter Receiver for Cctv IP CameraUS$ 80 - 100MOQ: 1 Piece
-
Full hd Cctv 1080p Outdoor Wireless Remote Control ip CameraUS$ 80 - 110MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
CCDCAM
Model Number
NVR704

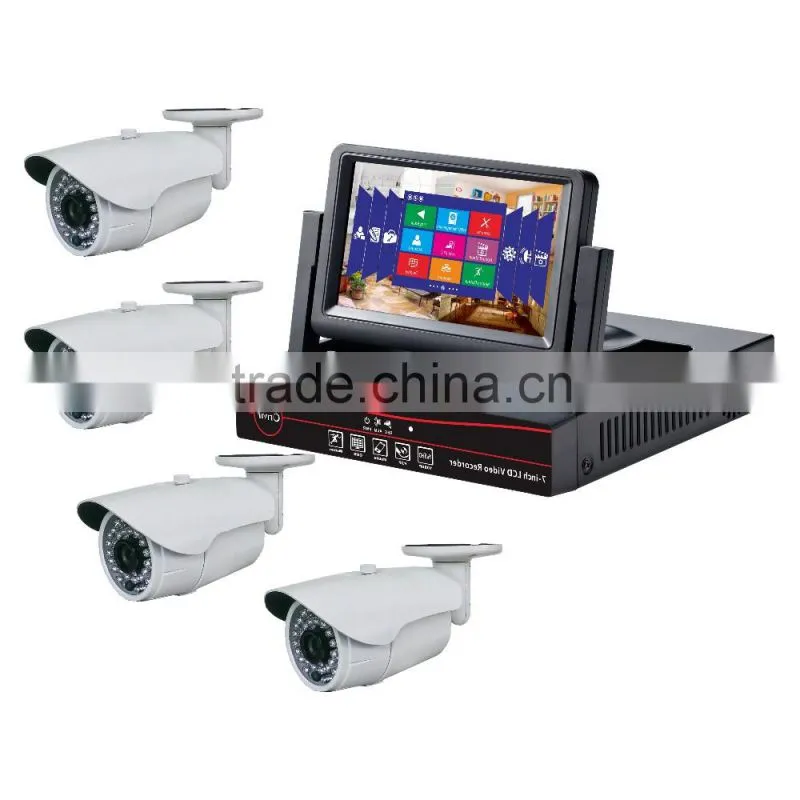

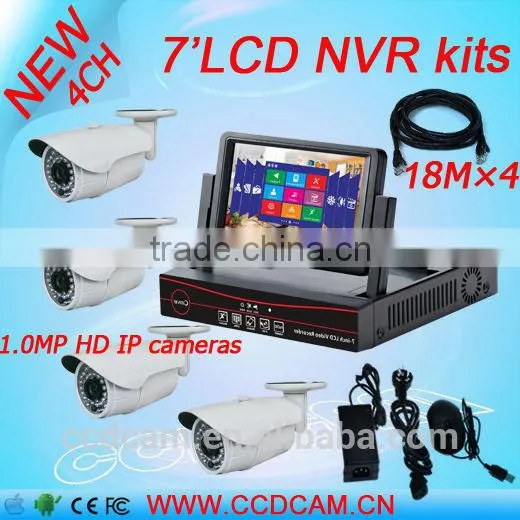

Cheap cctv ip camera kit with nvr kit 4 camera

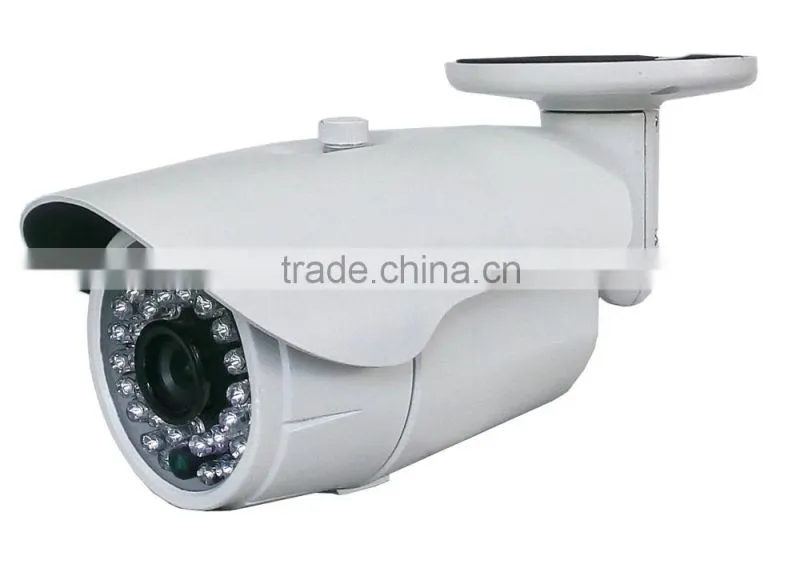

720P IP Camera
>36pcs ir led, 3.6mm fixed lens
>30M ir distance
>Waterproof IP66

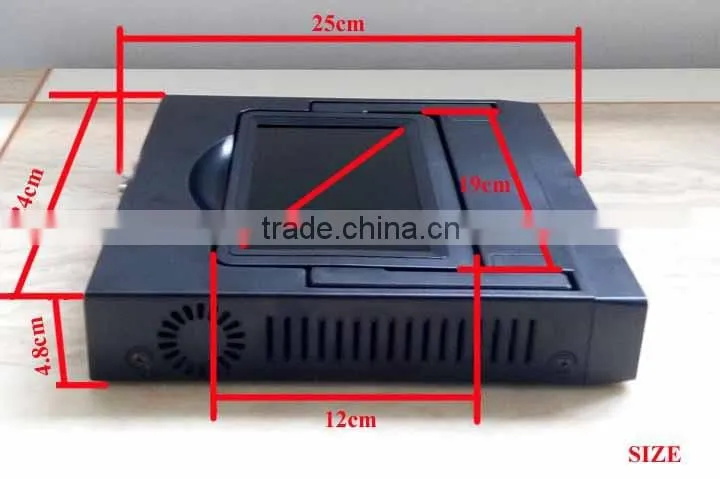

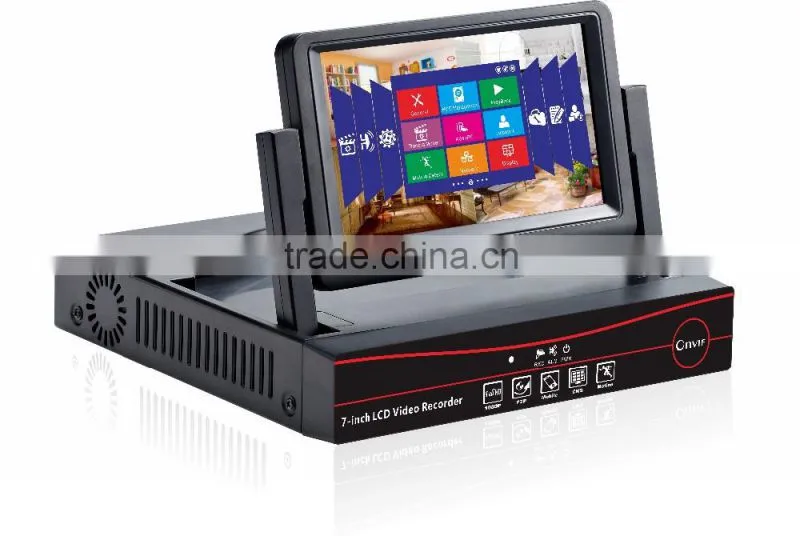

7 Inch LCD 4CH NVR
>Video input 4ch 720p
>Playback 4ch 720p
>Support USB 2.0
>1 SATA, up to 4TB
| NVR7004S7KITS | ||
| NVR | ||
| 7 inch digital LCD(Resolution 800X480 ) Support embedded Linux OS Support BNC and IPC Sync Input Support HDMI,CVBS Sync video output HDMI image resolution Max to 1920*1080 Support HD preview, all channels support Main stream Support Zoom function of preview and playback Support event,playback,backup recording ,support picture playback and search Support One-key recording Support fast playback Support P2P Support 4ch 720P/2ch 1080P simultaneous playback | ||
| System | ||
| Main processor | High performance embedded microprocessor | |
| Operating system | Embedded LINUX OS | |
| Video spec. | ||
| Video compression format | H.264 | |
| Display Image Resolution | 720P/960P/1080P 25FPS | |
| Playback Image Resolution | 4*720P 25FPS/2*1080P 25FPS | |
| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
|
| Privacy Masking | Support | |
| Audio spec. | ||
| Audio compression format | adpcm | |
| Two-way audio | 1ch | |
| Recording Mode | ||
| Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording | |
| Recording storage | HDD,Network | |
| Frame rate | 30 fps NTSC;25fps PAL | |
| Playback | Max support 4ch 720P synchronously playback | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | ||
| Video Input | 4CH 720P IPC | |
| Video output | 1ch HDMI, 7inch LCD(Resolution 800X480 ) | |
| Other | ||
| Network | 1x100Mbps,RJ45 port; | |
| RS485 | Standard 485 port,support half-duplex, green terminal port | |
| USB | 2 USB 2.0 ports | |

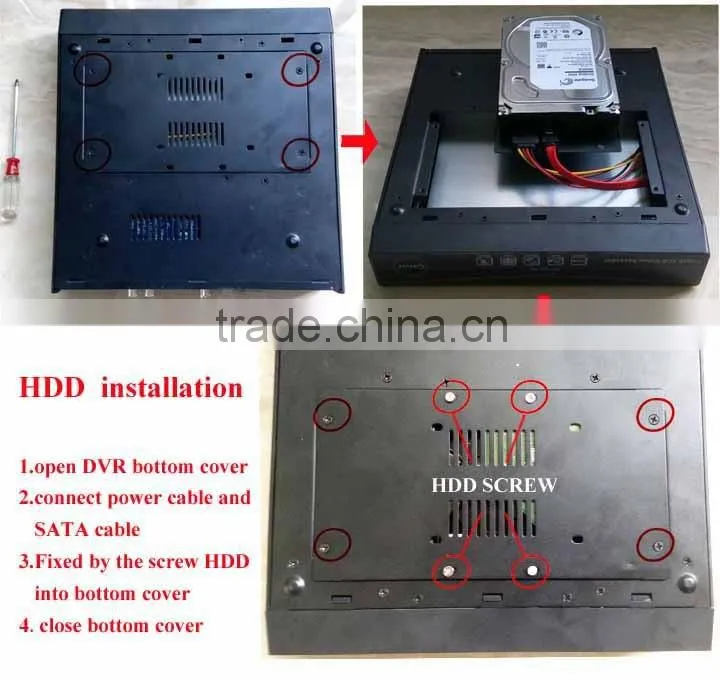

| HDD | support 1 SATA HDD (MAX 4TB) | |
| Power | DC +12V | |
| Power consumption | 16W-18W(not include HDD) | |
| 4*IP cameras | ||
| Camera Type | 720P IP Camera | |
| Camera | Image Sensor | 1/4 inch 1 Megapixel CMOS sensor |
| DSP | HI3518 DSP 32 dual-core , pure hardware compression | |
| IR-LED | 36 PCS Φ5 IR LEDS | |
| Illuminate Distance | 30m IR distance | |
| Day/Night | IR-CUT filter | |
| Min.Illumination | Color 0.6Lux/F1.2,B/W 0.08 Lux/F1.2 | |
| Electronic Shutter | 1/50(1/60)s-1/100,000s | |
| Lens | 3.6/6mm Fixed Lens | |
| Lens Mount | CS Mount | |
| Digital Zoom | 10X Digital Zoom | |
| Video | Compression standard | H.264/M-JPEG |
| Compression technology | Dual-stream compression technology | |
| Video frames | Real-time PAL 25fps,NTSC 30fps 1-30fpsAdjustable | |
| output bit rate | 32Kbps~8000Kbps Adjustable | |
| Audio coding standard | AAC/G711 Codec standard | |
| Image | Resolution | Main Stream: |
| 1280×720(video resolution); | ||
| Sub Stream:640×360, 480×270,320×180; | ||
| Network | parameter settings | Brightness, contrast, chroma saturation,Image Quality Level |
| protocol | RTSP ,FTP,PPPoE,DHCP,TCP/IP,HTTP,UDP, RTP/RTCP,UPNP,SMTP,SIP,DDNS,DNS |
|
| Alarm | Support Motion Detection, Linkage Alarm, Linkage recording, sensor trigger alarm functions |
|
| Privacy Mask | Support | |
| WIFI | Support WIFI 802.11bgn,WCMA3Gwireless networks | |
| Interface | Audio Input | 1CH input,Support the pickup input |
| Audio output | 1CH output,Support the headset or amplifier | |
| USB Interface | U disk storage | |
| Video output | 1CH Video output,Support CVBS standard,PAL/NTSC Optional | |
| Network interface | RJ4510M/100 MEthernet port | |
| Other | Power supply | DC 12V,Optional POE Remote power supply |
| Waterproof Criterion | IP66 | |
| KITS | ||
| Other | Work environment | -10℃~60℃90%RH |
Common
About Packing:
| 7'' LCD 4CH NVR | 1pcs |
| CD | 1pcs |
| Mouse | 1pcs |
| Remote Controller | 1pcs |
| Power for NVR | 1pcs |
| 1.0MP IP camera | 4pcs |
| Power for cameras | 4pcs |
