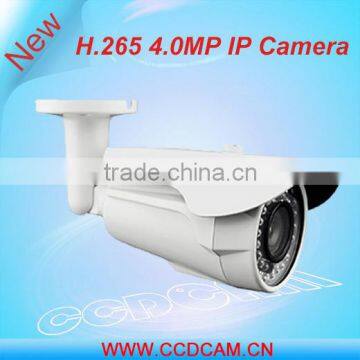

New Design Security ip Camera With Great Price

Name: New Design Security ip Camera With Great Price
Brand: CCDCAM
SKU: 119806469
Availability: InStock

US$ 47 - 49 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCDCAM

Model Number:

EC-IW7407

Shenzhen CCDCAM Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCDCAM

Model Number EC-IW7407

Type Digital Camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

Cameras features:

4 MP Waterproof WDR IP Camera

1/3 inch 4 Megapixel OV4689 CMOS sensor+ H3516D DSP

High resolution : 4MP 2592*1520*25fps

3MP 2304*1296*30fps

2MP 1920*1080*30fps

6mm fixed lens with WDR function

42pcs Φ5 leds,IR range 40M

Model		EC-IW7407
Camera Type		4.0MP real-time WDR IP Camera
Camera	Image Sensor	1/3" CMOS OV4689 + S2L 1GHz/512M DDR3
	Effective Pixels	2560(H)x1520(V)
	Day/Night	IR-CUT filter
	Min.Illumination	Color 0.05Lux/F1.2 , B/W 0.01 Lux/F1.2
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Lens	6mm fixed Lens
	Lens Mount	M12/CS Mount
	IR-LED	42pcs 5 IR LED
	Illuminate Distance	40m IR distance
Compression	Compression Standard	H.264 Main Profile/High Profile 5.1
	Video Frames	Real-time PAL/NTSC 3/2MP@1~30FPS 4MP@1~25FPS
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	HDR	with WDR function,hdr up to 100dB
	Quality	3D-DNR,BLC,AWB,auto ISO
	Resolution	Main Stream: 2592×1520 25fps(4MP), 2304×1296(3MP) 30fps
		1920×1080 60fps(2MP),1280×720(1MP) 30fps
		Sub Stream:640×360,720×480(1-30fps)
Audio	Output	1 RCA
Audio	Input	1 RCA
Network	Parameter Settings	WEB configure and OSD supported, Real time recording,
	Parameter Settings	Transmission and playback, Download;Motion detection
	Privacy Mask	Support 4 area can be set
	Basic	Anti-flicker, Dual stream, Heartbeat, Password protection
	Protocol	HTTP/Onvif/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/P2P
	Alarm	Support Motion Detection, Linkage Alarm, Linkage recording,
	Alarm	Sensor trigger alarm functions
Interface	Video Output	RJ45
Interface	Network Interface	1 RJ45 Ethernet interface, 10/100M adaptation
Other	Work Environment	-10°C- +60°C;≤95%
	Waterproof Criterion	IP66
	Power Supply	DC 12V
	Package Size	27x15x16cm
	Net Weight	1.28kg
