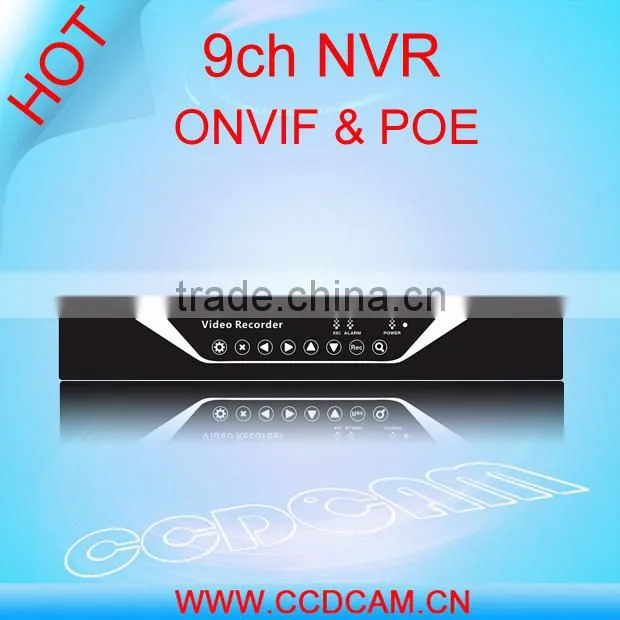

Cctv Nvr Poe 9ch Onvif P2P Nvr Poe 8ch for Surveillance System

Name: Cctv Nvr Poe 9ch Onvif P2P Nvr Poe 8ch for Surveillance System
Brand: CCDCAM
SKU: 119804603
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCDCAM

Model Number:

NVR7109-POE

Shenzhen CCDCAM Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCDCAM

Model Number NVR7109-POE

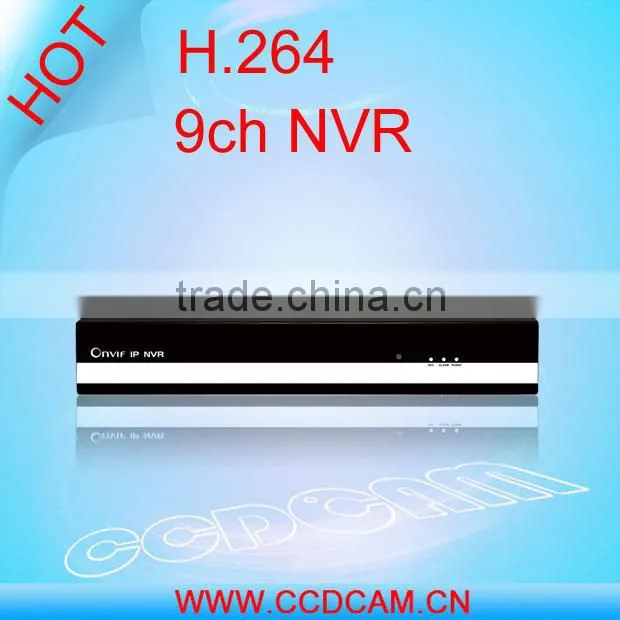

cctv nvr poe 9ch onvif P2P nvr poe 8ch for surveillance system

Resolution: 1080P/960P/720P

Playback Resolution:

960Px4ch*100fps
1080Px2ch*50fps

specification

Model		NVR7109-POE
System	Main Processor	High performance embedded microprocessor
System	Operating system	Embedded LINUX OS
Video spec.	Video compression format	H.264
	Display Image Resolution	720P@30fps;960P@30fps;1080P@30fps
	Playback Image Resolution	720P@30fps;960P@30fps;1080P@30fps
	Motion Detection	can setup 192(16×12)pcs motion detection area eachchanneland multi-level sensitivity(1-6 levels adjustable)
	Privacy Masking	depends on ipc
Audio spec.	Audio compression format	G.711
Audio spec.	two-way audio	support
Recording	Recording Mode	Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording,
	Recording storage	HDD,Network
	Frame rate	30 fps NTSC;25fps PAL
	Encode ability	Recording 9ch 1080P/720P@Playback 2ch 1080P/4ch 720P;
	Backup Mode	Support HDD,USB Flash Disk store & backup
Video	Network Video Input	9ch
Video	Video output	1ch VGA and 1ch HDMI
Audio	Audio Input	1ch by RCA (9ch by Network)
Audio	Audio Output	1ch

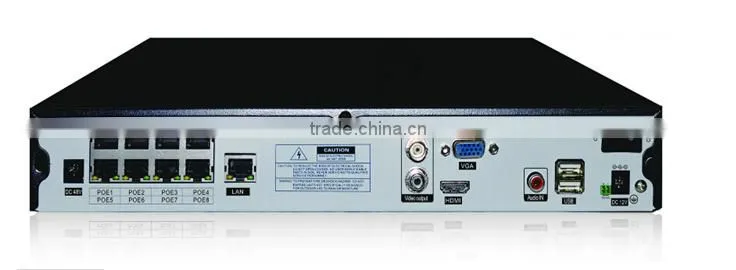

Other	Network	9x10/100Mbps,RJ45 port(8 port support POE)
	POE	8*POE (MAX 15.4W each / IEEE802.3AF)
	USB	2 USB 2.0 ports
	HDD	support 2pcs 4TB SATA HDD inside
	Power	DC +12V (DC +48V for POE)
	power consumption	16W-18W(not include HDD and PoE)
	Operation temperature	0℃-+55℃
	Operation humidity	10%-90%
	Demension	335MM252MM50mm(1U height)
	Weight	2.2KG(not include HDD)
