Product Details
Place of Origin: | China | Brand Name: | CCDCAM | Model Number: | NKIT8138W |
Product Description

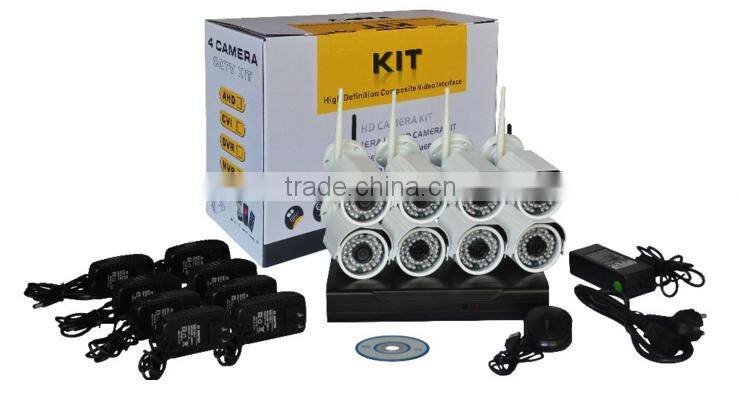

8ch cctv nvr kit with wifi camera wirless NVR kits for security
Cameras features:
4* 720P Wireless IP Camera
1/4 inch 1 Megapixel CMOS sensor
Built-in P2P for remote PC and 3G Mobile Surveillance
High resolution : 1280*720
NVR Features:
Support embedded Linux OS

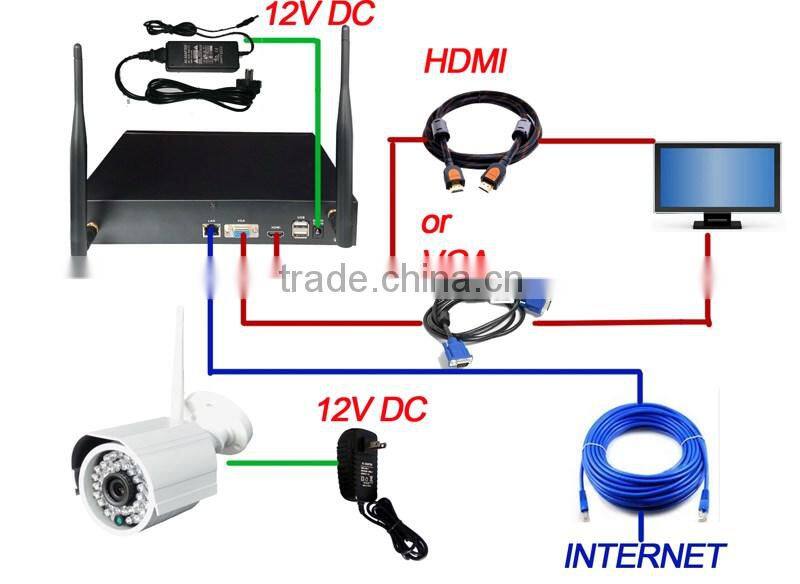

Built-in Wireless AP,install without WIFI router
2.4G All wireless Transfer video avoid from wiring problems
Support HD preview, all channels support Main stream
Specification:
NKIT8138W | ||
WIFI NVR | ||
Support embedded Linux OS | ||
Built-in Wireless AP,install without WIFI router | ||
2.4G All wireless Transfer video avoid from wiring problems | ||
Support HDMI,VGA Sync 1080P video output | ||
Support HD preview, all channels support Main stream | ||
Support Zoom function of preview | ||
Support event,playback,backup recording ,support picture playback and search | ||

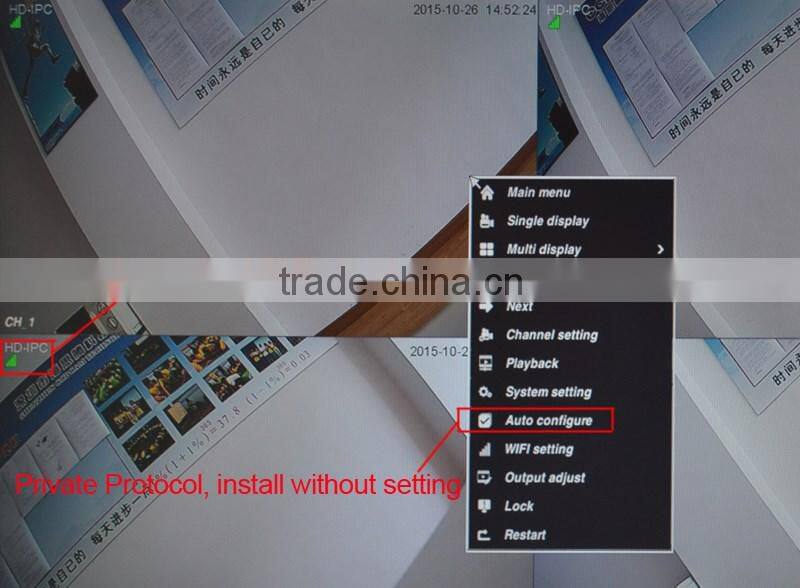

Support One-key setup and recording | ||
System | ||
Main processor | High performance embedded microprocessor | |
Operating system | Embedded LINUX OS | |
Video spec. | ||
Video compression format | H.264 | |
Display Image Resolution | 960P 1~30FPS | |
Playback Image Resolution | 960P 1~30FPS | |
Motion Detection | can setup 396(22×18)pcs motion detection area | |
each channeland multi-level sensitivity(0-100 levels adjustable) | ||
Recording Mode | ||
Recording Mode | Manual Recording,Time Recording,Motion Recording | |
Recording storage | HDD,Network | |
Frame rate | 1~30 fps | |
Playback | Max support 4ch 960P synchronously playback | |
Backup Mode | Support HDD,USB Flash Disk store & backup | |
Video | ||
Video Input | 8CH 960P IPC | |
Video output | 1ch HDMI, 1ch VGA | |
Other | ||
Network | 2.4Ghz Wireless AP,10/100Mbps Ethernet port; WIFI Barrier-free transport 100 Meters, wall transfers 30 Meters | |
USB | 2 USB 2.0 ports | |
HDD | support 1 SATA HDD (MAX 4TB) | |
Power | DC12V 3A | |
Power consumption | 16W-18W(not include HDD) | |

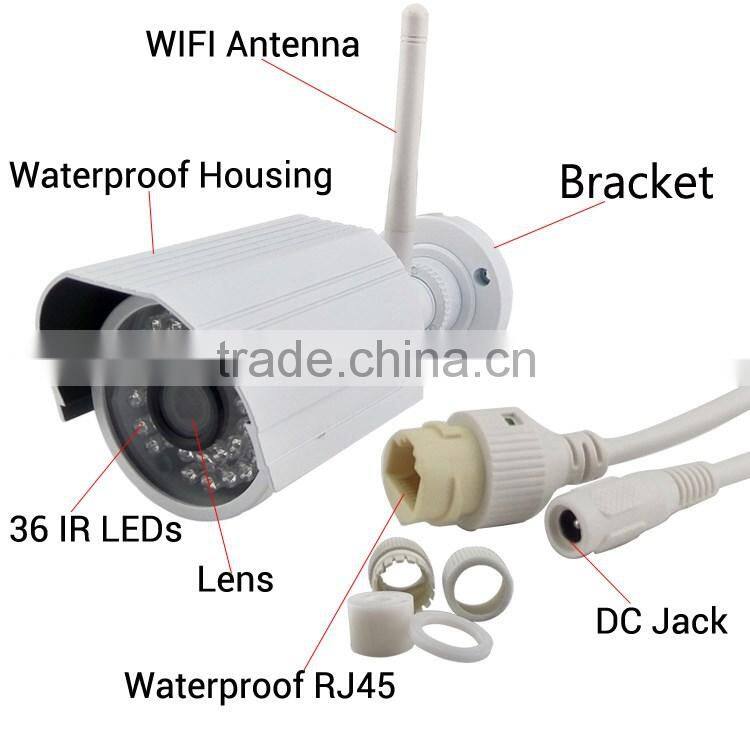

8*IP WIFI cameras | ||
Camera Type | 960P IP Camera | |
Camera | Image Sensor | AR0130 1/3" cmos sensor |
DSP | HI3518 DSP 32 dual-core , pure hardware compression | |
IR-LED | 36 PCS IR LEDS | |
Illuminate Distance | 30m IR distance | |
Day/Night | IR-CUT filter | |
Min.Illumination | Color 0.5color 0.05B&W | |
Electronic Shutter | 1/50(1/60)s-1/100,000s | |
Lens | 3.6/6mm Fixed Lens | |
Lens Mount | CS Mount | |
Digital Zoom | 10X Digital Zoom | |
Video | Compression standard | H.264 |
Compression technology | Dual-stream compression technology | |
Video frames | Real-time PAL 25fps,NTSC 30fps 1-30fpsAdjustable | |
output bit rate | 32Kbps~5000Kbps Adjustable | |
Image | Resolution | Main Stream:1280x960(video resolution); |
Sub Stream:640x360, 480x270,320x180; | ||
Network | protocol | DHCP,TCP/IP,HTTP,UDP,DNS |
Alarm | Support Motion Detection, Linkage Alarm, | |
Privacy Mask | Support | |
Vedio port | Video output | 1CH Video output,RJ45/WIFI,PAL/NTSC Optional |
Network interface | RJ4510M/100M Ethernet port /WIFI 2.4GHz | |
Other | Power supply | DC 12V |
Waterproof Criterion | IP66 | |
KITS | ||
Work environment | -10℃~60℃90%RH | |
Package Size | ||
Net Weight |
