Home Security 4mp Digital Cctv Camera Cctv Camera System

Name: Home Security 4mp Digital Cctv Camera Cctv Camera System
Brand: CCDCAM
SKU: 119803237
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCDCAM

Model Number:

EC-IW7445Z

Shenzhen CCDCAM Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen / Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCDCAM

Model Number EC-IW7445Z

Type IP Camera

Style Bullet Camera

Sensor CMOS

Technology NetWork

Special Features Waterproof / Weatherproof

H.265 surveillance network motorized auto foucs 4K-8K 4mp camera

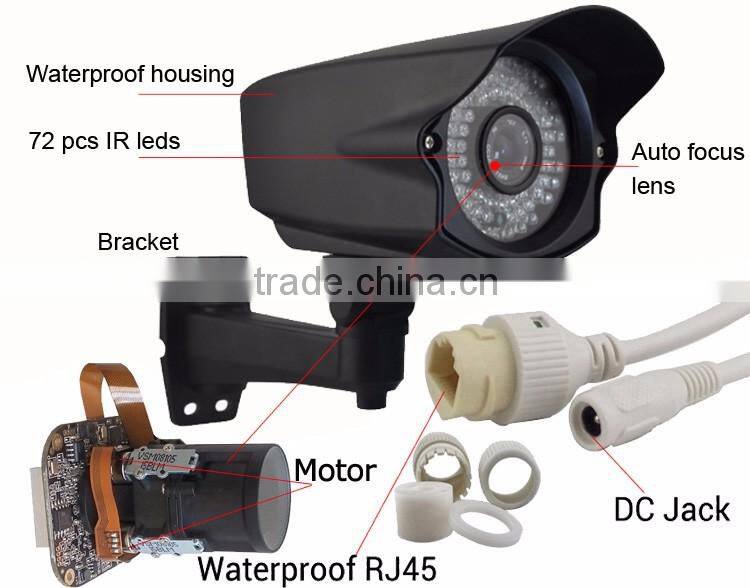

Cameras features:

4 MP Waterproof DWDR IP Camera

1/3 inch 4 Megapixel OV4689 CMOS sensor+ H3516D DSP

High resolution : 4MP 2592*1520*22fps

3MP 2304*1296*25fps

2MP 1920*1080*25fps

1MP 1280*720 *25fps

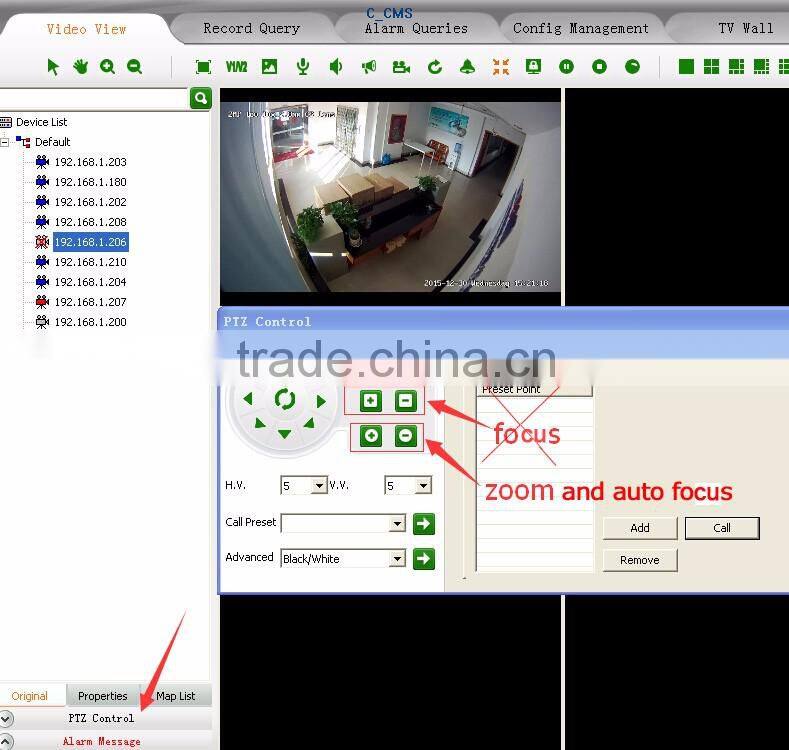

2.8-12mm Auto focus Motorized lens with WDR function

72pcs Φ5 leds,IR range 60M

Parameter

Model		EC-IW7445Z
Camera Type		4.0MP real-time DWDR IP Camera
Camera	Image Sensor	1/3" CMOS OV4689 + HI3516D
	Effective Pixels	2592(H)x1520(V)
	Day/Night	IR-CUT filter
	Min.Illumination	Color 0.05Lux/F1.2 , B/W 0.01 Lux/F1.2
	Electronic Shutter	1/50(1/60)s-1/100,000s
	Lens	2.8-12mm Auto focus Motorized Lens
	Lens Mount	CS Mount
	IR-LED	72pcs 5 IR LED
	Illuminate Distance	60m IR distance

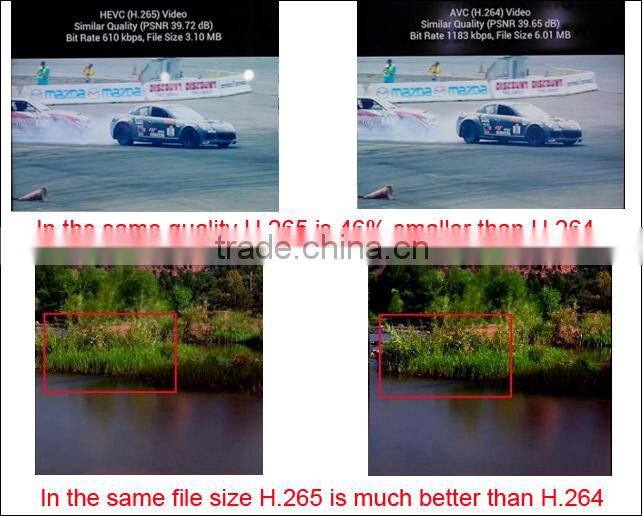

Compression	Compression Standard	H.265/ H.264 Main Profile/ MJPEG
	Video Frames	Real-time PAL/NTSC 2MP/3MP/4MP@1~30FPS
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	Quality	3D-DNR,BLC,AWB,auto ISO
	Resolution	Main Stream: 2592×1520 22fps(4MP),2304×1296(3MP) 25fps 1920×1080 25fps(2MP),1280×720(1MP) 25fps Sub Stream:640×360,720×480(1-25fps)

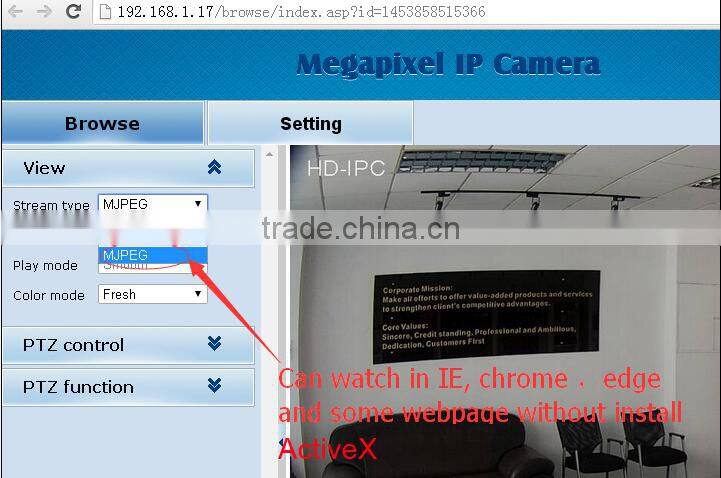

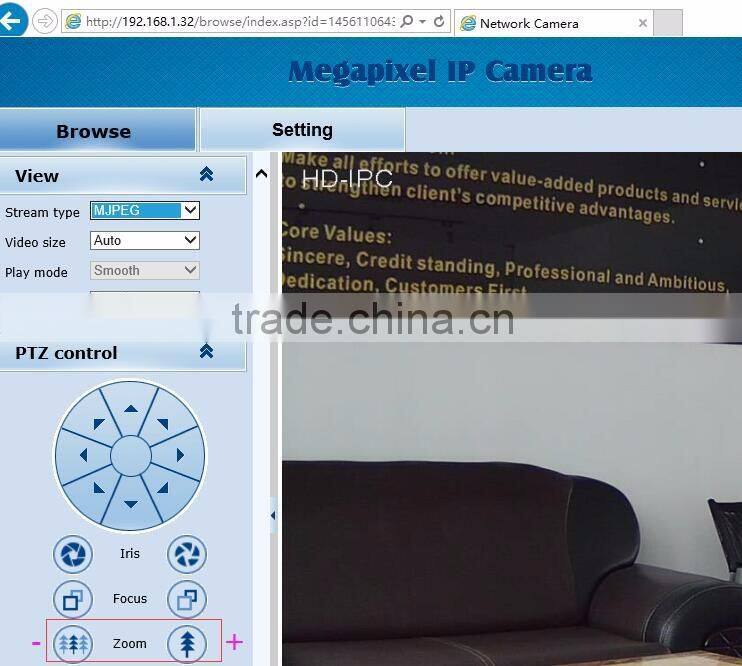

Network	Parameter Settings	WEB configure and OSD supported, Real time recording, Transmission and playback, Download;Motion detection

	Privacy Mask	Support 4 area can be set
	Basic	Anti-flicker, Dual stream, Heartbeat, Password protection
	Protocol	HTTP/Onvif/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/P2P
	Alarm	Support Motion Detection, Linkage Alarm, Linkage recording, Sensor trigger alarm functions

Interface	Video Output	RJ45
	Network Interface	1 RJ45 Ethernet interface, 10/100M adaptation
Audio interface	Audio encord	G.711
	Audio input	1ch
	Audio output	1ch
