Factory Sale 5mp Web Cam Vandalproof

Name: Factory Sale 5mp Web Cam Vandalproof
Brand: CCDCAM
SKU: 119803177

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCDCAM

Model Number:

EC-IUV7523

Shenzhen CCDCAM Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen / Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCDCAM

Model Number EC-IUV7523

Type IP Camera

Style Dome Camera

Sensor CMOS

Technology NetWork

Special Features Vandal-proof

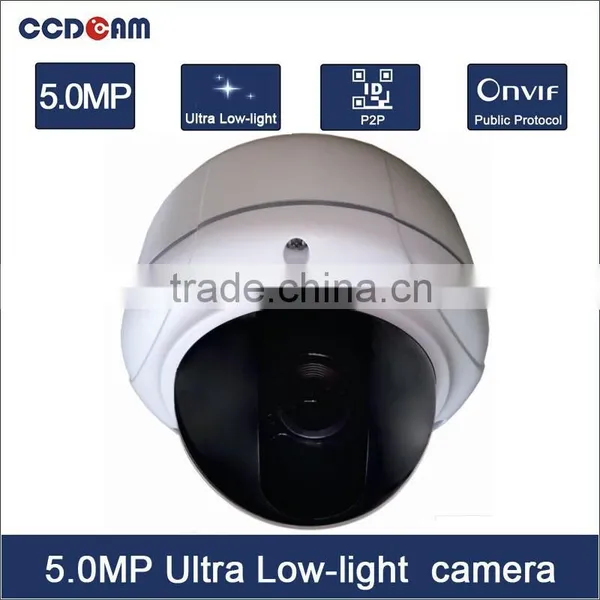

Factory sale 5mp web cam vandalproof

camera Features:

1/1.8" 5Megapixel SONY IMX178 WDR sensor

support H.265 / h.264 / Mjpeg output.

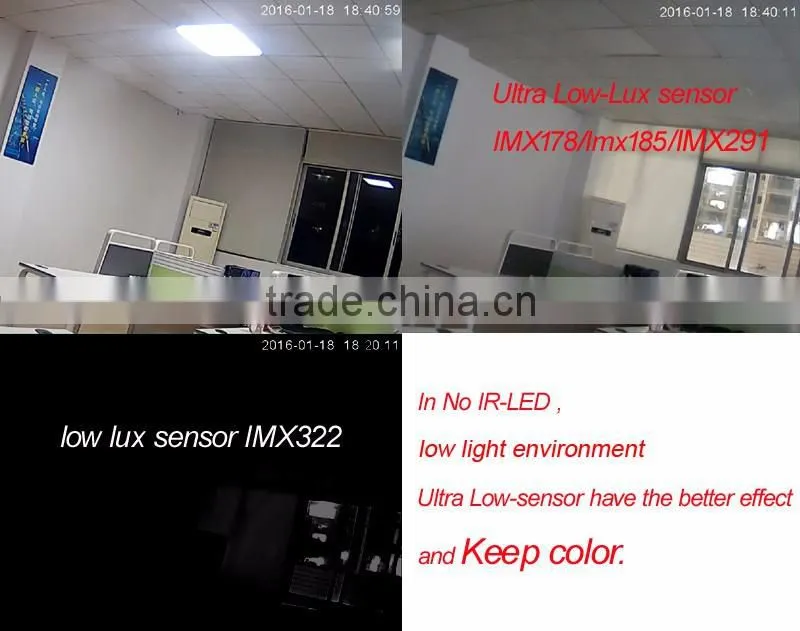

Min.llumination 0.005 Lux F1.2 color

Hi3516A DSP

Max 5MP 30FPS(2592*1944)

4/6mm CS fixed lens

IP66,3DNR,HDR>80dB

Parameter

Model		EC-IUV7523
Camera Type		5MP HD IP camera
Camera	Image Sensor	1/1.8 inch 5.0MP IMX178 Ultra low-light sensor HI3516A DSP
	Effective Pixels	2592(H)x1944(V)
	IR-LED	N/A
	Illuminate Distance	N/A
	Day/Night	keep color
	Min.Illumination	Color 0.005Lux/F1.2
	Electronic Shutter	1s-1/100,000s
	Lens	5.5mm CS Lens
	Lens Mount	CS Mount
Compression	Compression standard	H.265 / H.264 / MJPEG
	Video frames	Real-time 1-30fps Adjustable
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	Quality	AWB, AGC, BLC
	Resolution	Main Stream: 2560×1944 0~30fps Real-time,1920×1080,1280×720
		Sub Stream:640×360,352×288,320×180(25fps/30fps)
Network	Parameter settings	WEB configure and OSD supported,
		Transmission ;Motion detection
	Protocol	Onvif/PPPOE/DHCP/DDNS/P2P/HTTP
	Intelligent Alarm	Support Motion Detection, Linkage Alarm, Linkage recording,
		Sensor trigger alarm functions
	Privacy Mask	Support 4 area can be set
	Basic	Anti-flicker, Dual stream, Password protection

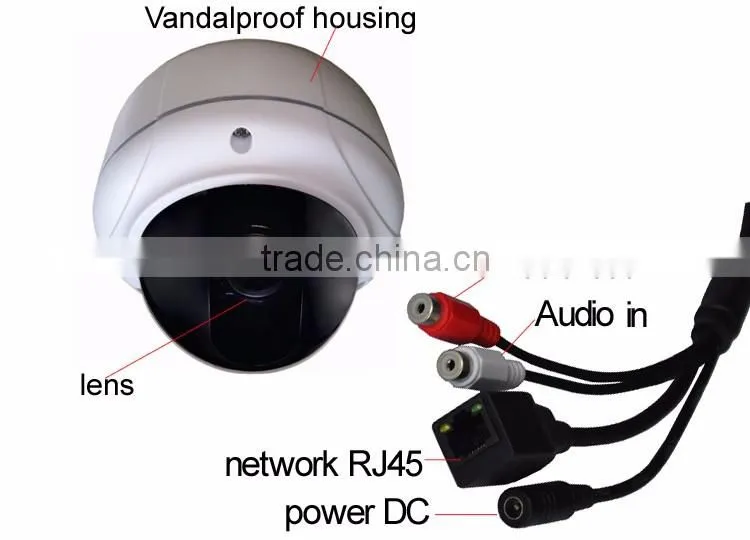

Interface	Video output	RJ45
	Power	DC jack : 12V
	Network interface	RJ45 10M/100 MEthernet port
Audio	Audio Encord	G.711
	Audio in	1ch
	Audio out	1ch
Other	Work environment	-10℃~60℃90%RH
	Waterproof Criterion	IP66
	Package Size	15X15X14cm
	Gross weight	1.2 kg
If you need POE please consult with us.
