Super Hybrid 8ch 1080P 1080P digital video recorder camera system
• H.264 Video compression
• AHD/NVR/DVR Three-in-one
• Support multi-mode switch
• AHD: 8CH*1080P(compatible with 720P 960H analog)
AHD+IP: 8CH*720P+4CH*IPC1080P;
IP: 16CH*1080P; 4CH*5M;
Playback resolution: 8CH AHD 1080P@52FPS or 720P@200FPS
8CH IPC 1080P@200FPS
Synchronous palyback:1/4/9/16CH
Specification
Model Number |
AHD8408PFA |
Video/Audio input |
H.264 |
Video compression |
H.264 |
Analog video input |
8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
Audio compression |
ADPCM |
Audio input |
4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
Two-way audio input |
1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
Video/Audio output |
|
Multi-mode switch |
AHD: 8CH*1080P(compatible with 720P 960H analog) |
HDMI/VGA output |
800x600,1024x768,1280x1024,1440x900,720P,1080P |
CVBS output |
No |
Encording resolution |
D1/960H/720P/960P/1080P/3M/5M |
Frame rate |
NTSC:1~30FPS/S;PAL:1~25FPS/S |
Video bit rate |
256kps/384Kbps/512Kbps/640kbps/768Kbps/1M/1.5M/2M/2.5M/3M/4M/5M/6M/8M |
Audio output |
1PCS RCA Port( line level , impedance : 1kΩ) |
Audio bit rate |
16kpbs |
Dual-stream |
YES |
Stream type |
combine streams/ video stream |
Playback resolution |
8CH AHD 1080P@52FPS or 720P@200FPS |
Synchronous palyback |
1/4/9/16CH |
Hard disk |
|
SATA |
2*SATA |
eSATA |
No |
Capacity |
each port support max 4TB HDD |

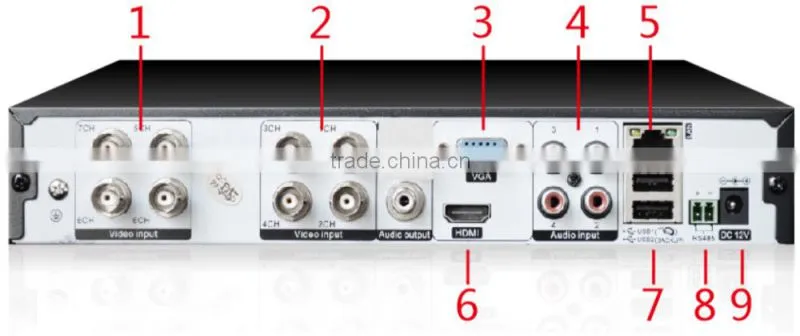

External interface |
|
Network interface |
1PCS RJ45 10M / 100M adaptive Ethernet port |
Serial interface |
1PCS RS485 |
USB interface |
2*USB2.0 |
Alarm in/out |
NO |
General |
|
Power supply |
DC12V |
Comsumption |
≤18W |
Working temperature |
-10℃--+55℃ |
Working humidity |
10%--90% |
Weight |
1.3kg |
