Magic Led Strip

Magic Led Strip thumbnail-1
Magic Led Strip photo-1
US$ 2 - 12 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
SMD/DIP LED Chip
Type:
Flex LED Strips
Input Voltage(V):
12V/24V
Contact Supplier Request Quote Chat Now
Shenzhen Bluesea Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD/DIP LED Chip
Type Flex LED Strips
Input Voltage(V) 12V/24V
Working Temperature(℃) -35, 65
Working Lifetime(Hour) 50000
Certification CE, EMC, FCC, LVD
Place of Origin Guangdong, China
Brand Name Bluesea Lighting
Model Number LHS-FPC50CWW-60H

magic led strip
available in all color
CE&RoHS

Waterproof/non-waterproof
50,000hous

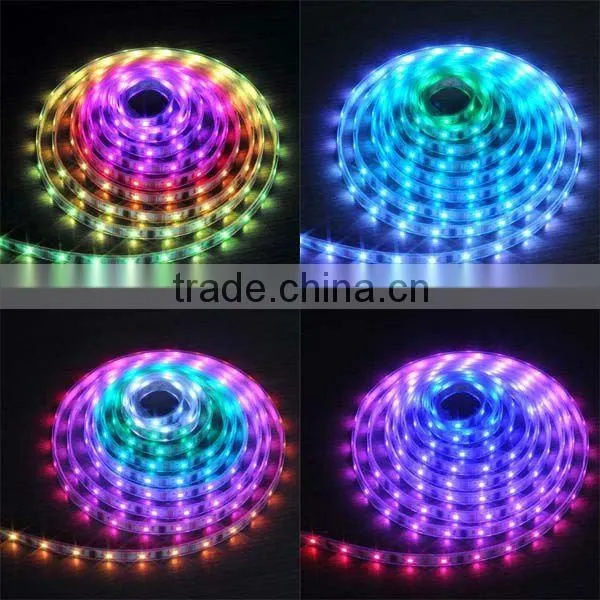

Description: magic led strip



Dream changing Magic color LED strip is a high-end interior/exterior lighting ,

LED type: SMD5050 and IC

Dream changing Magic color LED strip adopt high light-emitting devices with high efficiency, long life, light, healthy no strobe, no radiation, environmental protection, to facilitate recycling.





Features:  magic led strip





1.SMD 5050 lamps mounted, high reliability, Continuous length, packed with 5 meters.



2.LED strip lighting to fit different occasions, every 3 lamps can be cut apart.



3.Maintenance free, easy installation with attached adhesives.



4.Long life span 50,000+ hours



5.LED light bar for curving around bends



6.Completely smooth and even light spread, solving the uneven luminous problem



7.Ultra-bright but running at low temperature





Specifications figure:



magic led stripmagic led strip







  magic led strip



Parameters:



Model

PCB

size/mm

IC

type

Working current

Working voltage

Power rating

Led type

Working temperature

Storage

temperature

LHS – DC-RGB -30

5000 x

12 x 4

2801

≤1.08A

DC 5V

≤5.4W

SMD

5050

-50°C~70°C

-60°C~80°C

LHS - DC-RGB -32

1606

≤1.56A

DC 5V

≤7.8W

LHS - DC-RGB -36

3906

≤0.678A

 DC 12V

≤8.4W

LHS - DC-RGB -40

5000x15x4

1606

≤2.8A

DC 5V

≤14W





Led type

Color

Color temperature/Wave length

Light angle

Service life

Certificate

SMD5050

Red

620~625 nm

120°

50,000h

CE/RoHS

Green

515~520 nm

Blue

465~470 nm

Yellow

590 ~595 nm

Warm white

3000 ~3500K

White

6000 ~6500K

Cool white

≥7000K





Installation instructions:

1. The strip have 3M tape on the back.Tear down protective film when installation and stick to the position you want.

2. The Single driver can drive at most two pieces of strips one time,But need to add power and drive circuit when excess two pieces.

3. The method of calculate the Power consumption and design of electricity distribution: the quantity of LED strip x single strip power(Proposed that power margin should be left optional, using by 80%,used by 80% rated power.)





magic led strip

Our factory

magic led stripmagic led stripmagic led strip



Our service

Founded in 2005, we strive to excel in our manufacturing in order to give our customers the highest standard of Quality and Customer Service possible with our line of products.

Our main lights include LED High bays, LED Spots, LED Bulbs, Candles and Ceiling Lights, Par38, Tubes and Panels,  LED Strip lights, LED Rigid Bars.
Products are warmly welcomed in both European and American markets. We have rich experience in developing LED lighting products according to our customers’ ideas about what they want which makes us a “SOLUTIONS PARTNER” instead of just suppliers.


Our company has a family atmosphere which results in trust and long lasting relationships of rich practical experience that includes members of management   to operations to the production line.


The duty of our staff is to always pay close attention to customers' requirements and in doing so, many of our new products are outcomes of developing their innovative ideas and requests. This close relationship helps maintain and develop high quality new products at a very competitive and low cost.



I promise to God I'm an Honest and Hard-working seller ,I do love my Job ,thought it is hard for most people to love what they do .



How Lucky I  am !!! Hope you enjoy your purchase from us .



If any questions and ideas , just feel free to tell me ,I 'm here for you or will be back to you within 24 hours

magic led strip





  magic led strip

magic led stripmagic led stripmagic led stripmagic led strip
