Specifications
1. Fully programmable keyboard for POS systems2. MTBF: over 10 million operations per key
3. Certificate RoHS, EMC Class B

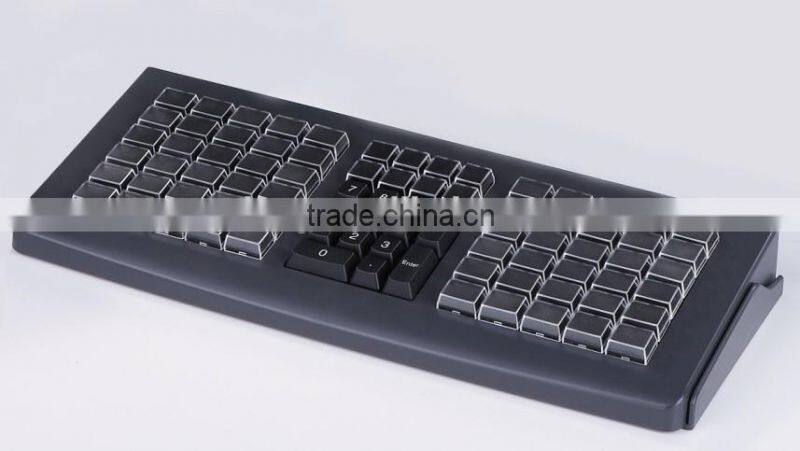

The CITAQ KB-P81 81-key fully programmable POS keyboard and KB-P81M with MSR are a range of high performance keyboards specially designed for POS systems.
Programmable Keys
81 keys, membrane
Capacity Per Key
1 to 255 characters per key
Versatile Programmability
Up to 15 multi-shift levels per key
Magnetic Stripe Reader
3 tracks
Life Cycle ≥ 500,000 operations
Comply with ISO 7812 standards
Card swipe speed 10 – 120 cm/s
OS Supported
MS-DOS, WIN 9X/ME/2000/XP
Languages Supported
English
Power Source
Input Voltage 5V DC, +/- 10%
Current ≤150mA
Electrical
Insulation resistance >50MΩ
Contact resistance < 1KΩ

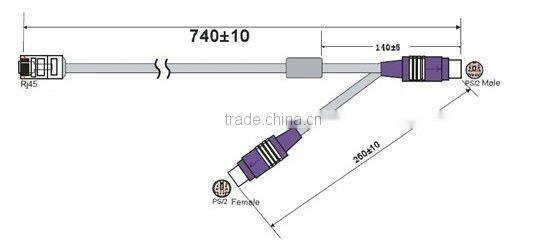

Interface
6 pin mini DIN PS/2 connector
RJ45 Interface
Key Switches
MTBF: minimum 10 million operations per key
Total Travel 4.0 – 0.5mm
Pre-travel 2.3 ± 0.4mm
Data Memory
100 years data retention without additional battery
Dimensions
390mm W x 155mm D x 42mm H
Weight
1.00kg(no cable included)
Applicable Conformity
RoHS Compliance
EMC Class B
Environmental
Operating Temperature 0C - +45C degree
Storage Temperature -20C - +50C degree
Relative Humidity 10% - 90%
