Specifications
SC Fiber Optic AdapterHigh quality ceramic ferrules
Low insertion loss
High reflection loss
High precision alignment
SC Fiber Optic Adapter Characteristics:
- Compact design
- Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
- High precision alignment
- Low insertion and return loss and back reflection
- Choice of metal or plastic housing, mount styles & flange options
SC Fiber Optic Adapter Application:
- Telecommunication networks
- Local Area Networks (LANs)
- Metro networks
- Data processing networks
- Industrial, military and medical
SC Fiber Optic Adapter Brief Introduction
TELEWEAVER offers a broad range of SC Fiber Optic Adapter that incorporate a PPS hook which returns to the original position with full functionality after days in the partial-latched position. The hook performs well under high temperatures, maintaining plug retention strength.
Simplex, duplex SC Fiber Optic Adapter are available in plastic, with or without flanges, and in horizontal and vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors. The SC simplex plastic adapter has an optional shutter. The SC Fiber Optic Adapter series is also available in metal housing, with square or rectangular flange types. Custom hook color and mount styles are available.

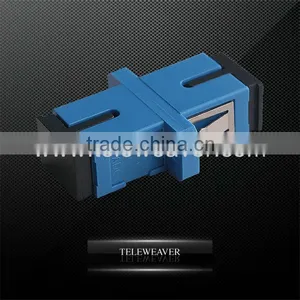

SC Fiber Optic Adapter Pictures:
-
SC Fiber Optic Adapter
SC Fiber Optic Adapter Paramters:
|
Type Parameters |
Single-mode |
Multimode |
|
Connector Type |
SC Fiber Optic Adapter |
||
Polishing Type |
PC |
APC |
PC |
Insertion Loss (dB) |
≤0.2 |
≤0.25 |
|
Tensile Strength |
F200N |
||
Durability |
n=1000 |
||
Operation Temperature (°C) |
-40°C~+80°C |
||
Sleeves Material |
Zirconia Ceramic |
||
Other Fiber Optic Adapters:
-
SC Fiber Optic Adapter
-
FC Fiber Optic Adapter
-
LC Fiber Optic Adapter
-
ST Fiber Optic Adapter
-
MU Fiber Optic Adapter
-
E2000 Fiber Optic Adapter
-
MTRJ Fiber Optic Adapter
-
D4 Fiber Optic Adapter
-
DIN Fiber Optic Adapter
-
MPO Fiber Optic Adapter
-
Hybrid Fiber Optic Adapter
