Specifications
60mm fiber cable protection tubeCrosslinked polylefin
Easy for application
Different sizes and colors available
ROHS
60mm fiber cable protection tube Characteristics:
- Single holed (pre-shrunk)
- Clear sleeve design
- Smooth stainless steel reinforcing member
- Sealing structure suitable to temperature
- Extended liner length
- Low shrink temperature
- Pre installed stainless steel or ceramic rod
- Accommodates single or ribbon fibers
- Wide range of sizes
- Operating temperature -45degree to 100degree
- Min. full recovery temp: 120degree
60mm fiber cable protection tube Application:
- Fusion splicing Fiber cable protecting
60mm fiber cable protection tube Brief Introduction
60mm fiber cable protection tube is applied to the optical fiber closure to fix and protect the optical fiber when splicing. The 40mm fiber cable protection tube can be divided into two types (single 60mm fiber cable protection tube and ribbon 60mm fiber cable protection tube) according to the function.
The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function. Ribbon 60mm fiber cable protection tube means there are several cores for the fiber. So the mass 60mm fiber cable protection tube includes 4cores, 6cores, 8cores, 12 cores (for types).
60mm fiber cable protection tube Pictures:
-

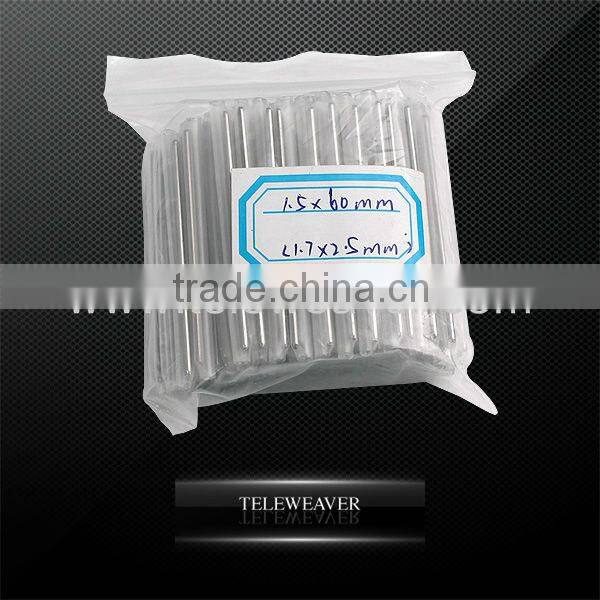

60mm fiber cable protection tube
-

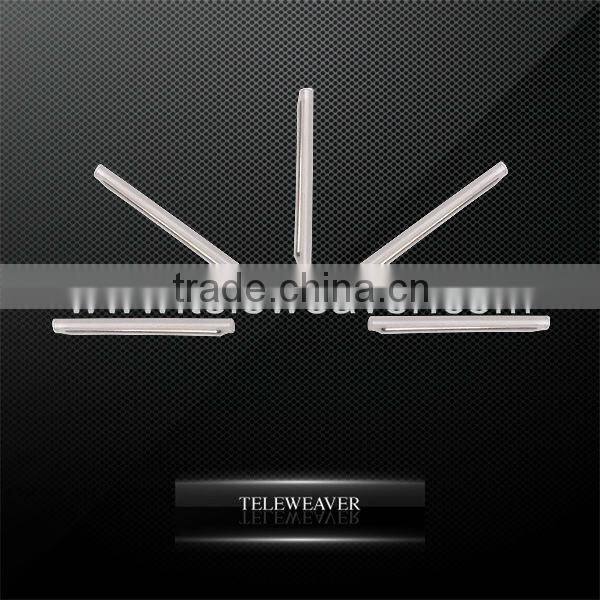

60mm fiber cable protection tube
60mm fiber cable protection tube Parameters:
Size |
Splice protector(mm) |
Fusion tube(mm) |
Steel rod(mm) |
Packing |
|||
O.D |
L |
I.D |
L |
O.D |
L |
(pcs/bag) |
|
Large sleeves | |||||||
TWSP-61 |
3 |
61 |
1.4 |
61 |
1.5 |
55 |
100 |
TWSP-45 |
3 |
45 |
1.4 |
45 |
1.5 |
40 |
100 |
TWSP-23 |
3 |
23 |
1.4 |
23 |
1.5 |
18 |
100 |
Standard sleeves | |||||||
TWSP-61T |
2.5 |
61 |
1.4 |
61 |
1 |
57 |
100 |
TWSP-45T |
2.5 |
45 |
1.4 |
45 |
1 |
41 |
100 |
TWSP-40T |
2.5 |
40 |
1.4 |
40 |
1 |
36 |
100 |
TWSP-30T |
2.5 |
2.5 |
1.4 |
30 |
1 |
36 |
100 |
TWSP-25T |
2.5 |
2.5 |
1.4 |
25 |
1 |
21 |
100 |
Mini/micro sleeves | |||||||
TWSP-40M |
1.3 |
1.3 |
0.35 |
40 |
0.5 |
40 |
100 |
TWSP-25M |
1.3 |
1.3 |
0.35 |
25 |
0.5 |
25 |
100 |
TWSP-18M |
1.3 |
1.3 |
0.35 |
18 |
0.5 |
18 |
100 |
TWSP-15M |
1.3 |
1.3 |
0.35 |
15 |
0.5 |
15 |
100 |
TWSP-10M |
1.3 |
1.3 |
0.35 |
10 |
0.5 |
10 |
100 |
