BAD87 ATEX approval 40w high quality led explosion proof lamp
- 10000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T D/P D/A
You May Like
-
BYS Ceiling mounting full plastic explosion proof anticorrosive fluorescent fixtures
-
BAD87 Explosion-proof Lights Item Type and Pure White Color Temperature(CCT) explosion proof light
-
BAD87 Cool White Color Temperature(CCT) and IP66 IP Rating Ex LED light
-
High quality LED Anti-Explosive energy saving light with highbay
-
BAD91 LED 20-150W Explosion proof highbay fixtures for industry
-
BAD87 High quality Explosion -Proof street light with LED 50-100W
Product Details
Light Source | Neon Bulbs | Input Voltage(V) | 220 | |
Lamp Power(W) | 40 | Lamp Luminous Flux(lm) | 2700 | |
Lamp Luminous Efficiency(lm/w) | 99 | Color Temperature(CCT) | Cool White | |
Working Temperature(℃) | -20, 40 | Working Lifetime(Hour) | 100000 | |
Certification | CCC, CQC | Lamp Body Material | Aluminum Alloy | |
Base Type | E40 | Place of Origin | Zhejiang, China | |
Brand Name | FPFB | Model Number | BAD87 |
Product Description

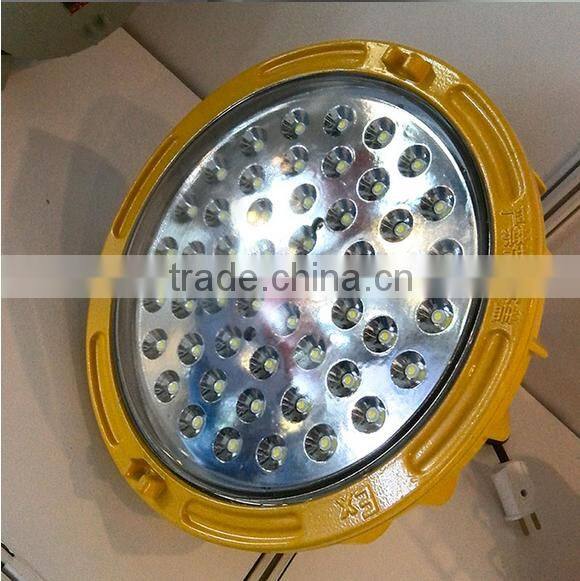

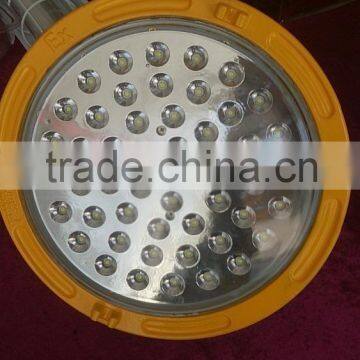

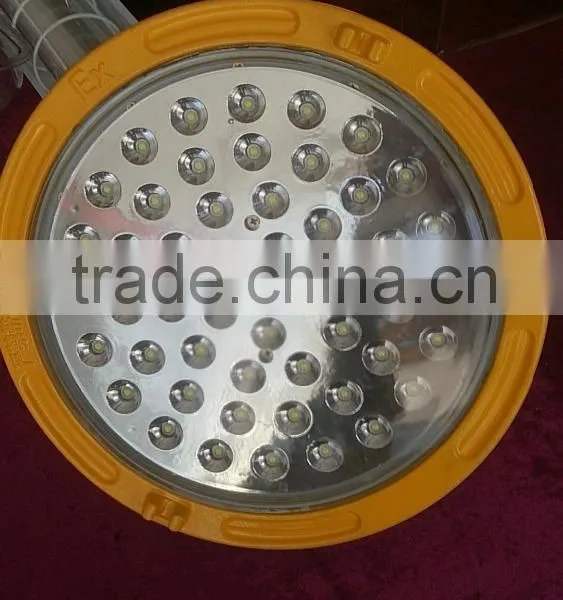

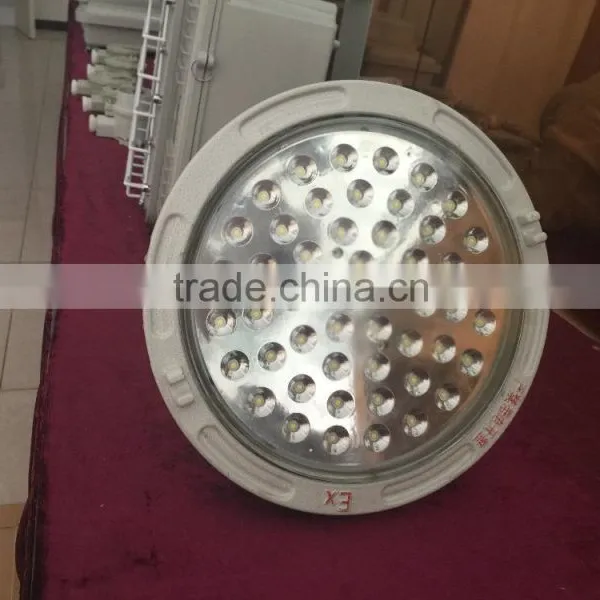

BAD87 ATEX approval 40w high quality led explosion proof lamp
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T4.
3. Lamp options: high light LED, phosphor circular fluorescent lamp.
4. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.

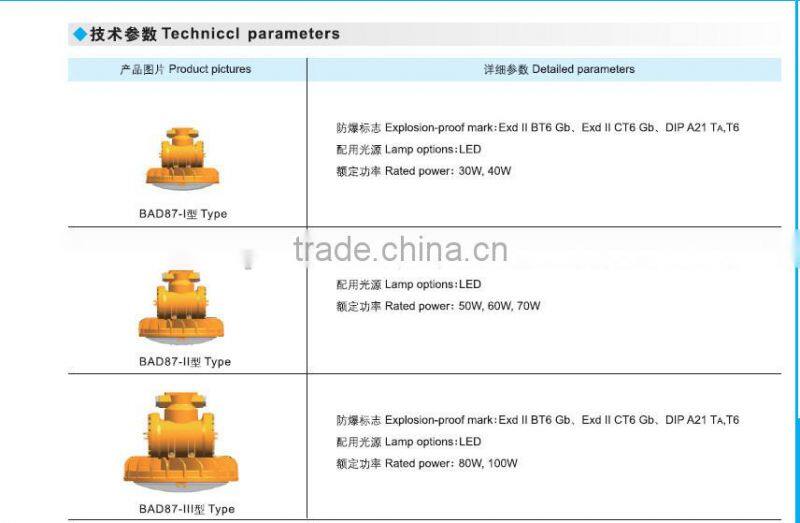

Model | Lamp | Power | Voltage | Ex-mark |
BAD87-40J | LED | 20W,30W,40W | AC220V | Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6 |
BAD87-50J | LED | 50W | AC220V | Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6 |
BAD87-60J | LED | 60W | AC220V | Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6 |
BAD87-70J | LED
| 70W | AC220 V | |
BAD87-100J | 100W |

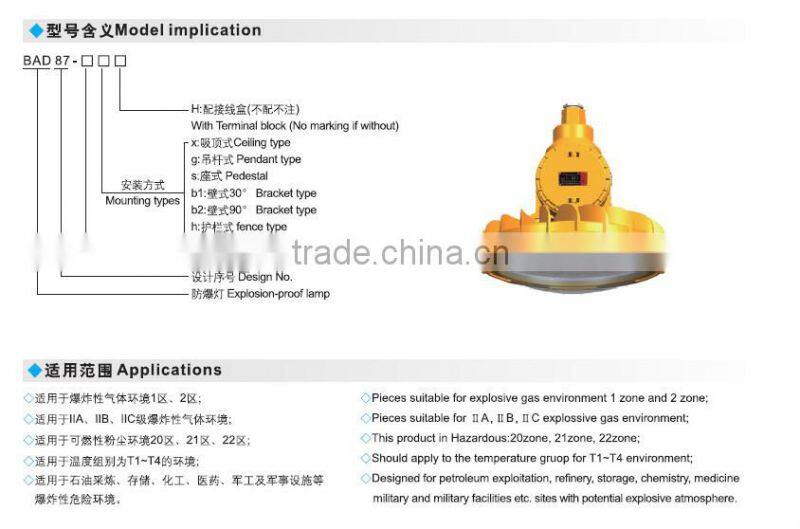

APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazardous: Zone20,21,22
- Can be used in the environment of temperature group for T1~T4.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

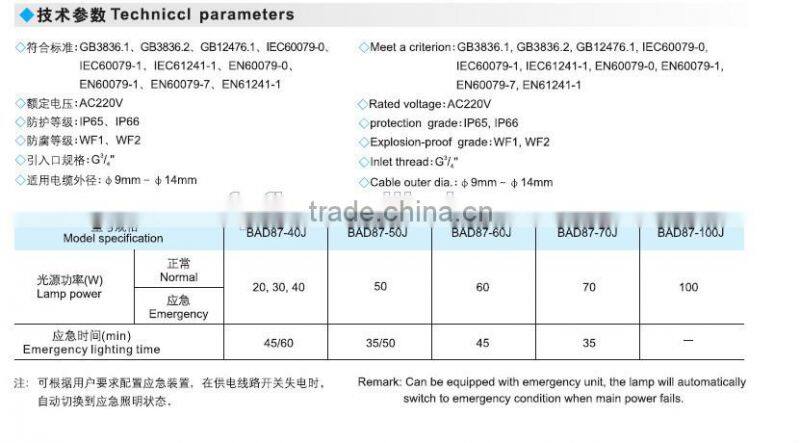

Techinical parameters:
- Meet a criterion:GB3836.1, GB3836.2, GB12476.1, IEC60079-0,IEC60079-1, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-1.
- Ex-proof Mark:Exd II BT6/CT6 Gb, DIP A21 TA,T6
- Rated voltage:AC220V
- Rated power: 30W~100W
- Ligting Source: LED
- Protection grade: IP65,IP66
- Corrosion-proof grade: WF1, WF2.
- Inlet thread: G3/4"
- Cable outer dia:Φ9mm~Φ14mm

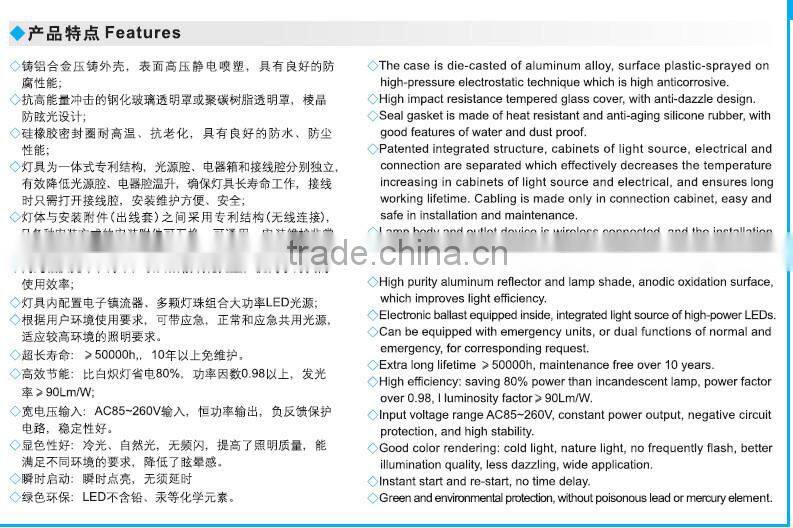

Product Features:
- Aluminum alloy enclosure, surface plastic-sprayed on high-pressure electrostatic technique.
- High impact resistance tempered glass cover, with anti-dazzle design.
- Stainless steel fasten of high aiticorrosive.
- Ex d screw and Ex d edge structure, reliable ex protection.
- Seal gasket is made of heat resistant and anti-aging silicone rubber, with features of water and dust proof.
- High purity aluminum reflector, anodic oxidation surface, leads to high reflecting efficiency.
- Adopting high-power light source, mono direction light, high efficiency, high luminous factor, good color rendering, long lifetime.
- Constant-current power supply, low power consumption, constant output power, with open circuit, short circuit and thermal protection, to ensure stable working.

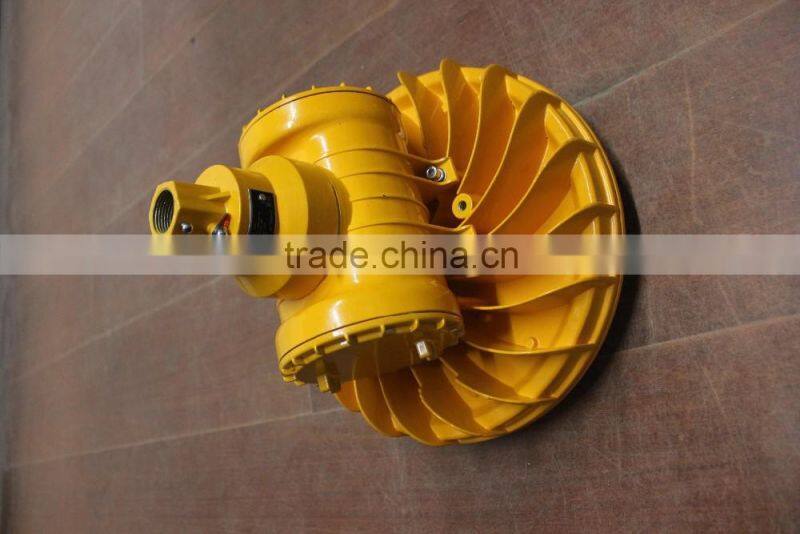

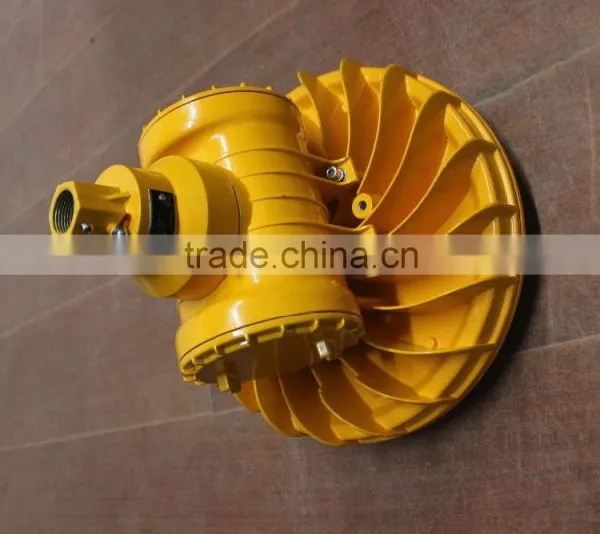

- Special radiator structure, cabinets of light source, electrical and connection are separated which ensures good radiation and long working lifetime.
- Wide input voltage range, constant luminous flux output, instant start.
- Cable connection.
Remark: Can be equipped with emergency unit, the lamp will automatically turn to emergency condition when main power fails.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
