Low Price Hazardous Location explosion proof LED lighting

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T6.
• Lighint source:T5 or T8 bin-pin tube.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079-0,IEC60079-1, IEC61241-1, EN60079-0, EN60079-1, EN61241-1
• Ex---proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6.
• Rated voltage: AC220V
• Ligting Source: Plz Refer the Selection Table.
• Protection grade:IP54, IP65, IP66*( If need IP66, need to info us)
• Corrosion-proof grade:WF1
• Inlet Thread: G¹/2"
• Cable outer dia:6mm~10mm
• Battery charging time:≤24h
• Emergency Start time:≤0.3s
• Emergency lighting duration:≥90min

Selection Table:

Product Features:

• Aluminium alloy Enclosure,high voltage electrostatic powder coated after shot blasted.
• High strength toughened glass cover.
• Exposed fasteners are of stainless steel with function of high corrosion-proof.
• With grids to adjust lighting effect and reduce the glare.
• Modular plug structure design, only need disconnect end cover draw out core to change tubes.
• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
• Inside the emergency unit designed with over charging and over discharging protection circuit.
• Screw connection type, for easy installation and maintenance.
• Power factor can be over 0.95.
• Steel conduit or cable wirings.

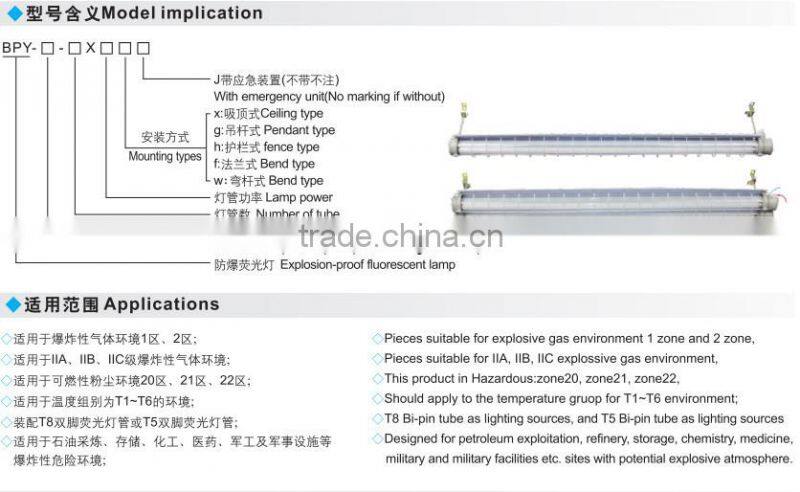

Order Information :

• Lamps has factory configuration light source, can be used directly access power;
• Take emergency unit, installation only ceiling type and boom type applicable;
• When double tube fluorescent lamp start emergency unit, Only one tube work.
• Ingress protection IP65 is available as per request.
