BYS high quality full plastic fluorescent luminare IP65

BYS high quality full plastic fluorescent  luminare  IP65

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T5.

3. Lamp options: high light, fluorescent lamp.

4. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.

5.T10single-pin instant fluorescent bube,fa6lamp holder,inductive ballast.T8 Bi-pin fluorescent tube,G13lamp holder.the ellectronic ballast T5and T8 led tube.

6.Rated voltage:AC220.

7.Lamp holder:Fa6,G13

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T5.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB3836.9, GB12476.1, IEC60079-0,IEC60079-1, IEC60079-7, IEC60079-18, IEC61241-1-1, EN60079-0, EN60079-1,EN60079-7, EN60079-18 EN61241-1-1,
• Ex-proof Mark:Exedmb II CT5 Gb, DIP A21 TA, T5.
• Rated voltage: AC220V
• Ligting Source: Plz Refer the Selection Table.
• Protection grade:IP65, IP67
• Corrosion-proof grade:WF2
• Inlet Thread: 2-M25×1.5
• Cable outer dia:9mm~14mm
• Battery charging time:≤24h
• Emergency Start time:≤0.3s
• Emergency lighting duration:≥90min

Product Features:

• SMC Glass fibre reinforced polyester(GRP) Enclosure, has benefits of high strength, impact resistance and corrosion resistance.
• Lampshade is injiected of polycarbonate with benefits of high light transmittance and impact resistance.
• Labyrinth seal structure with strong water resistance and dust resistance.
• Take name brand fluorescent tube with long service life and high light efficiency.

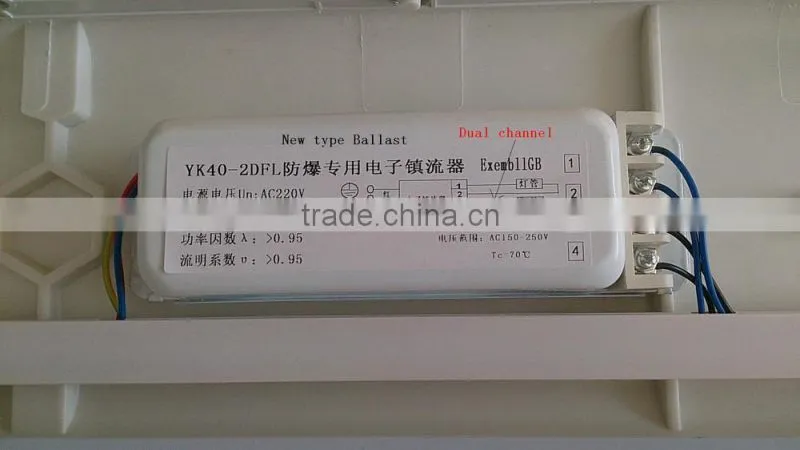

• Exclusive explosion proof ballast.

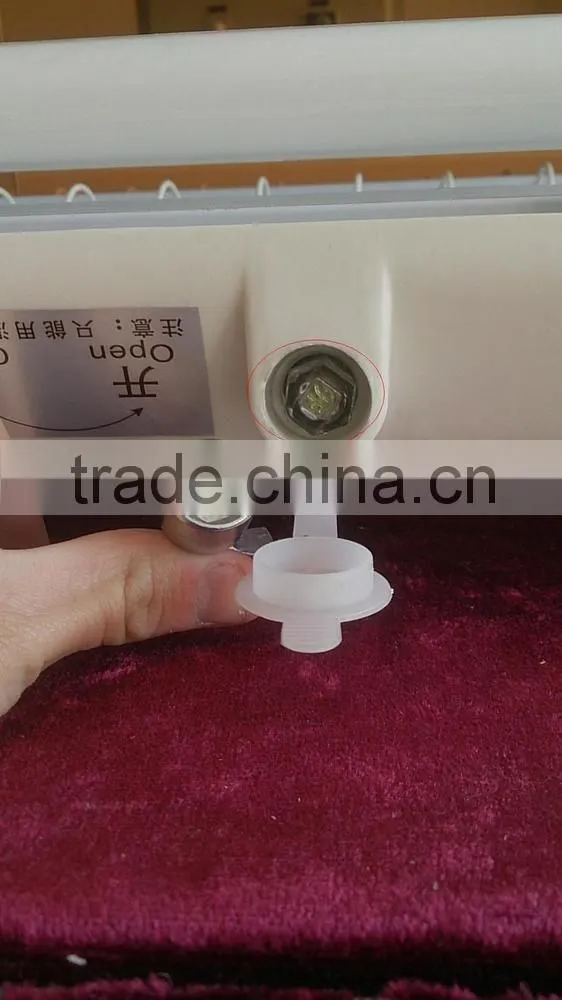

• Design with convenient opening method, turn opening mechanism as per indication to open cover.
• Built-in limit switch, de-energizing when open cover to assure the safety.
• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
• Inside the emergency unit designed with over charging and over discharging protection circuit.
• Steel conduit or cable wirings.

Order Information :

• Lamps has factory configuration light source, can be used directly access power;
• Take emergency unit, installation only ceiling type and boom type applicable;
• When double tube fluorescent lamp start emergency unit, Only one tube work.
• It is default pendant type is side entry type. Plz indicate when need upwards entry.
