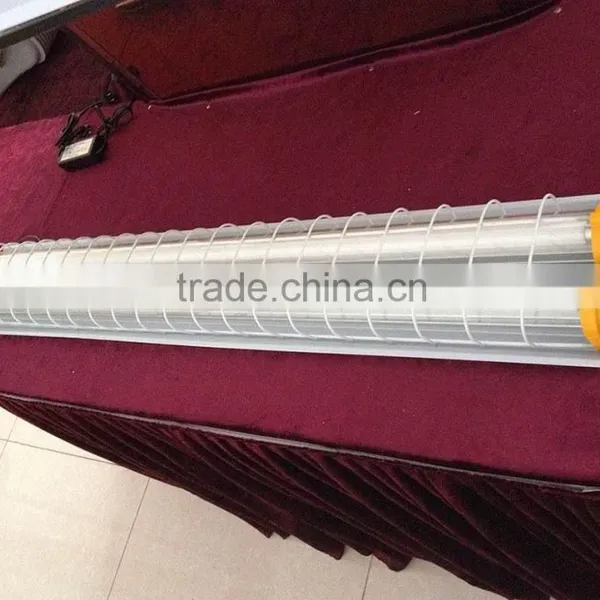

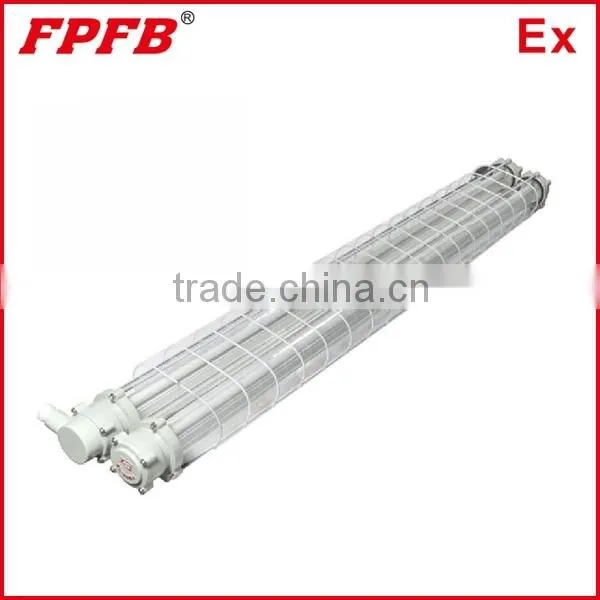

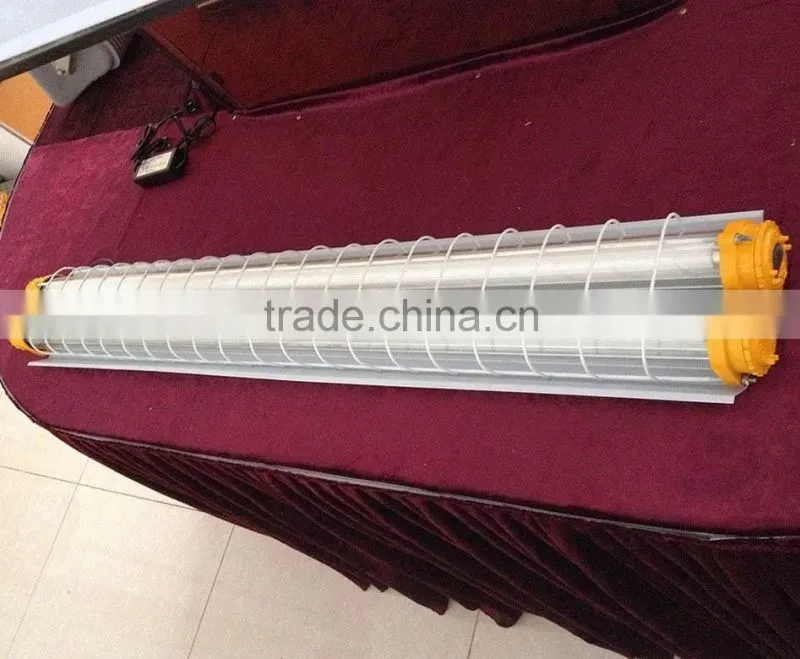

Explosion-proof led tube light 2x16w 2x36w

APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.
• Suitable for IIA,IIB,IIC explosive gas environment.
• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
• Can be used in the environment of  temperature group for T1~T6.
• Lighint source:T5 or T8 bin-pin tube.
• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079-0,IEC60079-1, IEC61241-1, EN60079-0, EN60079-1, EN61241-1
• Ex---proof Mark:Exd II BT6 Gb, Exd II CT6 Gb, DIP A21 TA, T6.
• Rated voltage: AC220V
• Ligting Source: Plz Refer the Selection Table.
• Protection grade:IP54, IP65, IP66*( If need IP66, need to info us)
• Corrosion-proof grade:WF1
• Inlet Thread: G¹/2"
• Cable outer dia:6mm~10mm
• Battery charging time:≤24h
• Emergency Start time:≤0.3s
• Emergency lighting duration:≥90min

Selection Table:

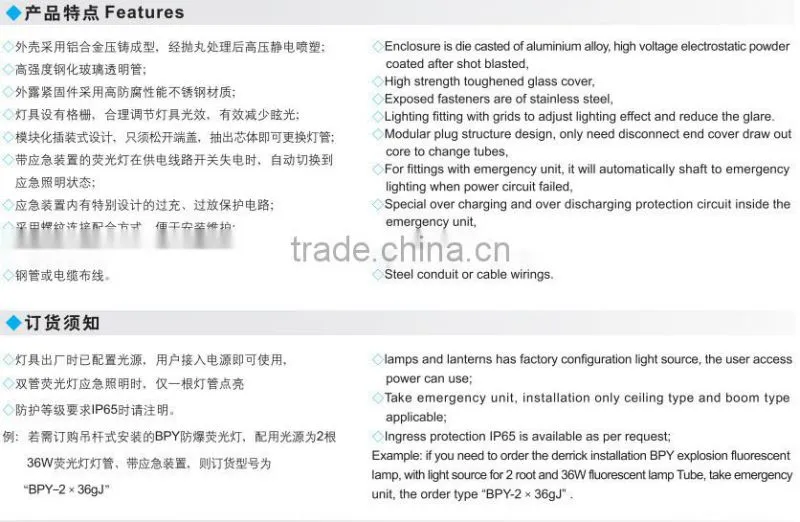

Product Features:

• Aluminium alloy Enclosure,high voltage electrostatic powder coated after shot blasted.
• High strength toughened glass cover.
• Exposed fasteners are of stainless steel with function of high corrosion-proof.
• With grids to adjust lighting effect and reduce the glare.
• Modular plug structure design, only need disconnect end cover draw out core to change tubes.
• For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
• Inside the emergency unit designed with over charging and over discharging protection circuit.
• Screw connection type, for easy installation and maintenance.
• Power factor can be over 0.95.
• Steel conduit or cable wirings.

Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.

We have wide range explosion proof products of lamp & light fixtures, electrical equipments,  and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.

Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.

We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.

Dear Customers,

1. What is our advantage in the industry?

    Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.

    Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.

2. What is our sales and distribution policy?

    We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.

3. Do you have warranty policy?

    We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.

 1. Standard export packing or customized packing available.

2. Shipping arrangement according to buyers request.
