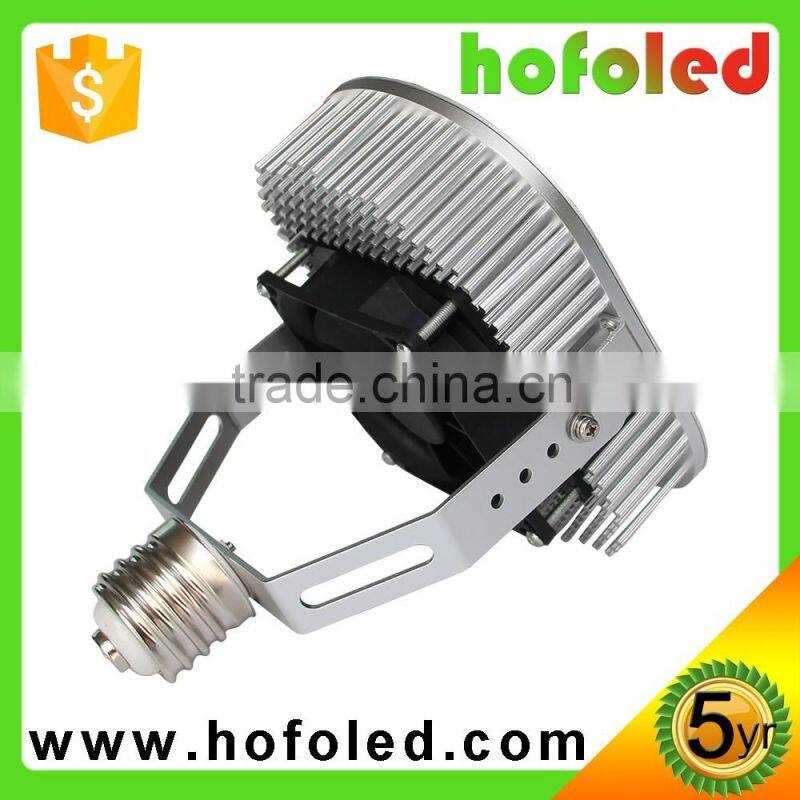

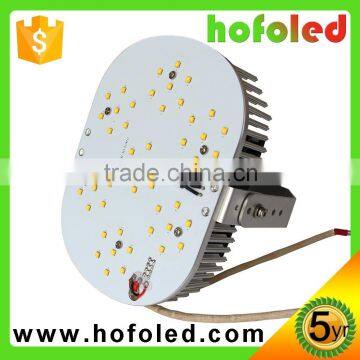

High Lumen Shoebox Lighting Led Retrofit Kit 100w to 400w

High Lumen Shoebox Lighting Led Retrofit Kit 100w to 400w photo-1
High Lumen Shoebox Lighting Led Retrofit Kit 100w to 400w photo-2
High Lumen Shoebox Lighting Led Retrofit Kit 100w to 400w photo-3
US$ 75 - 105 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
CREE,XTE,1-5W
Warranty(Years):
5
Input Voltage(V):
100-277V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source CREE,XTE,1-5W
Warranty(Years) 5
Input Voltage(V) 100-277V
Lamp Power(W) 100
Lamp Luminous Flux(lm) 10000
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, WW:3000K,NW:4000K,CW:6000K
Working Temperature(℃) -40, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CE, ETL
Place of Origin Guangdong, China
Brand Name Hofoled
Model Number HF-RK100W

High lumen shoebox lighting led retrofit kit 100w to 400w

project to replace gas stations canopy ight retrofit in New York, United States

 100-277V DLC CUL UL led retrofit kit 100w to replace 400w metal halide



LED Retrofit KitS 100W Technical Sheet:

Product Specification
Product name LED Retrofit Kits
Product Model HF-RK100W
Input Power 100W
LED Brand CREE
LED Type XTE,1-5W or XPE, 1-3W
LED QTY 49 PCS

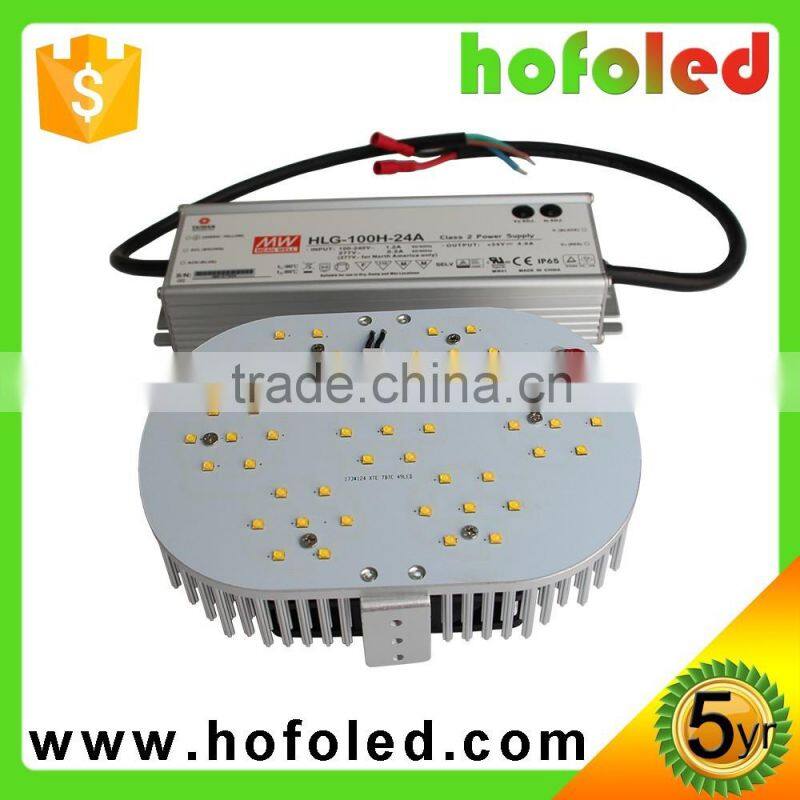

Driver model Meam well, HLG-100H-24A
Viewing Angle 120 Degree
Input Voltage AC85-265V, AC100-277V 50/60HZ
PFC >0.95
Equivalent 600W incandescent / 200W CFL
Dimension 174*146*60mm
Color temperature 2800-3200K 4000-4500K 5500-6000K 6000-6500K
CRI >80 >80 >80 >80
Lumen 8500LM 9000LM 9000LM 10000LM
Lumen Efficacy 85LM/W 90LM/W 90M/W 100LM/W
IP Code IP40
Material Aluminum
Housing color Gray
Working Temperature -30℃ to 50℃
Storage Humidity 10%-95%
Application LED high bay,street light,flood light,wall pack light
Certification CE RoHS
Warranty Time 5 Years





LED retrofit kits Advantages:

1) Using high quality CREE chips
2) Mean Well UL/CUL driver, very easy for repair/replacement
3) Various options: 100-277V,85-265V,high voltage 347-480V etc
4) Higher lumen and long lifespan
5) Positive cooling technology with Fan on the back, E39/E40 adaptor bracket
6) Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7) Industry-leading thermal management utilizing patented technology
8) Top quality with warranty of 5 years warranty
9) LM79, LM80.IES testing reports available



LED retrofit kits install with E39/E49 adaptor, and good connector. Warranty for 5 years, free to replace.

High lumen shoebox lighting led retrofit kit 100w to 400wHigh lumen shoebox lighting led retrofit kit 100w to 400wHigh lumen shoebox lighting led retrofit kit 100w to 400w

High lumen shoebox lighting led retrofit kit 100w to 400w

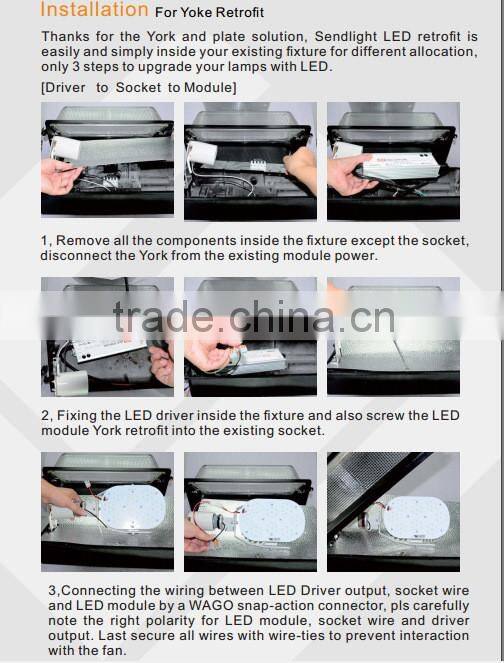

Our LED retrofit kits are simple to use and easy install

1.Remove the existing ballast and bulb.

2.Remove the existing reflector. It is not needed as our LED lights are directional

3.Install the LED driver where the old ballast was.

4.Screw in the LED Retrofit kit into the existing socket. We have both E26,E27 and E39 sockets.

5.Wire the driver to the LED Head. The socket is only used to hold the retrofit kit. It remains un-powered.

6.Close the fixture.

 High lumen shoebox lighting led retrofit kit 100w to 400w

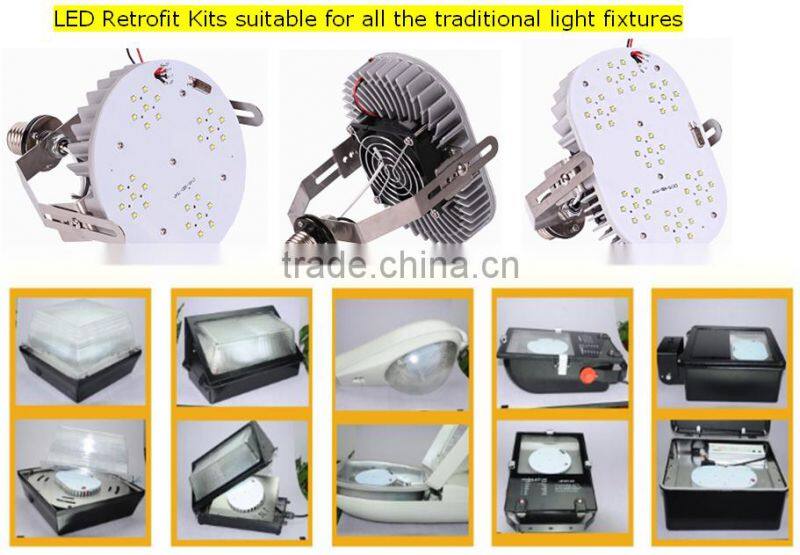

Application

Suitable for all the traditional light fixtures
HPS/MHD light source
Area Light,Shoesbox
Wall Pack Light
Canopy Light/Garage Light/Ceiling Light
Flood Light/High Pole Light
High Bay Light
Roadway Light/Street Light
Billboard Light
Sports Light
Post Top Light

High lumen shoebox lighting led retrofit kit 100w to 400w

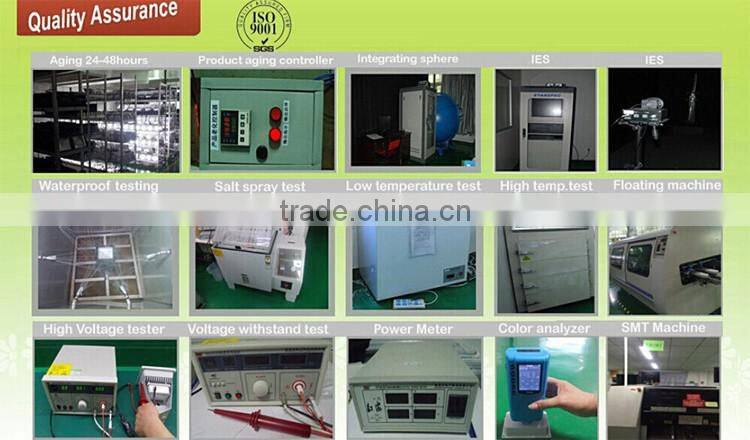

Certification of LED retrofit kits and our factory production line.

We sell led lights all over the world and support OEM ODM service.



Payment and shipping:

1.Payment T/T,L/C,Paypal,Western Union.Small order is 100%, for large amount,30% down payment, 70% balance before shipping

2. MOQ: 10 pcs, Discounts are offered based on order quantity.

3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days

4. Supply Ability: 50,000 Piece/Pieces per Month

5. Any inquire about our product will be reply in 8 hours
