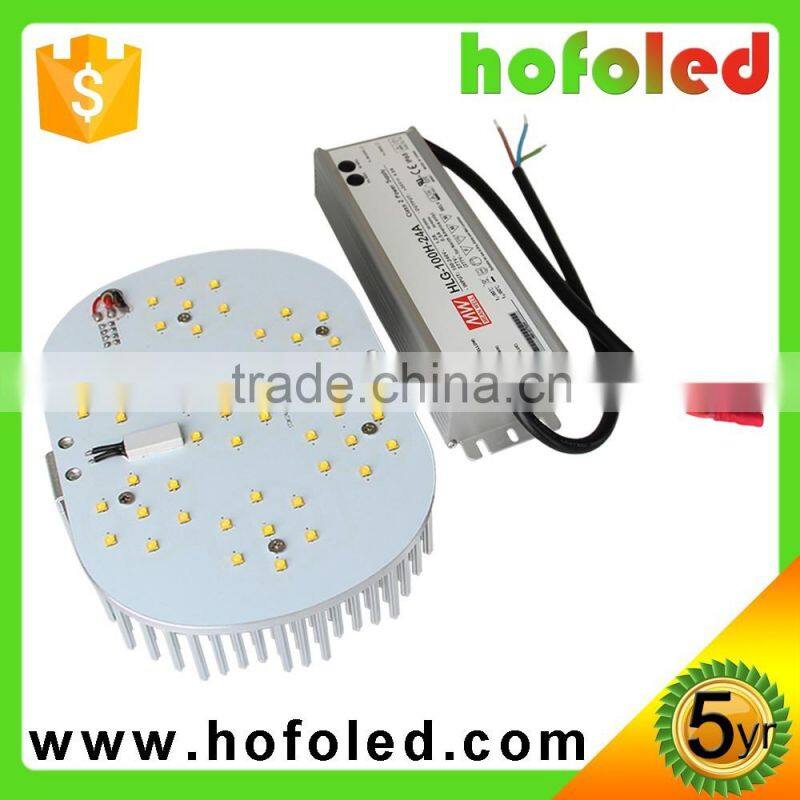

mean well driver dimmable led retrofit downlight kits
LED retrofit kitS 100W Technical Sheet:
| Product Specification | ||||
| Product name | LED Reteofit Kits | |||
| Product Model | HF-RL100W | |||
| Input Power | 100W | |||
| LED Brand | CREE | |||
| LED Type | XTE,1-5W or XPE, 1-3W | |||
| LED QTY | 49 PCS | |||
| Driver model | Meam well, HLG-100H-24A | |||
| Viewing Angle | 120 Degree | |||
| Input Voltage | AC85-265V, AC100-277V 50/60HZ | |||
| PFC | >0.95 | |||
| Equivalent | 600W incandescent / 200W CFL | |||
| Dimension | 174*146*60mm | |||
| Color temperature | 2800-3200K | 4000-4500K | 5500-6000K | 6000-6500K |
| CRI | >80 | >80 | >80 | >80 |
| Lumen | 8500LM | 9000LM | 9000LM | 10000LM |
| Lumen Efficacy | 85LM/W | 90LM/W | 90M/W | 100LM/W |
| IP Code | IP40 | |||
| Material | Aluminum | |||
| Housing color | Gray | |||
| Working Temperature | -30℃ to 50℃ | |||
| Storage Humidity | 10%-95% | |||
| Application | LED high bay,street light,flood light,wall pack light | |||
| Certification | CE RoHS | |||
| Warranty Time | 5 Years | |||
LED retrofit kits Advantages:
1) Using high quality CREE chips
2) Mean Well UL/CUL driver, very easy for repair/replacement
3) Various options: 100-277V,85-265V,high voltage 347-480V etc
4) Higher lumen and long lifespan

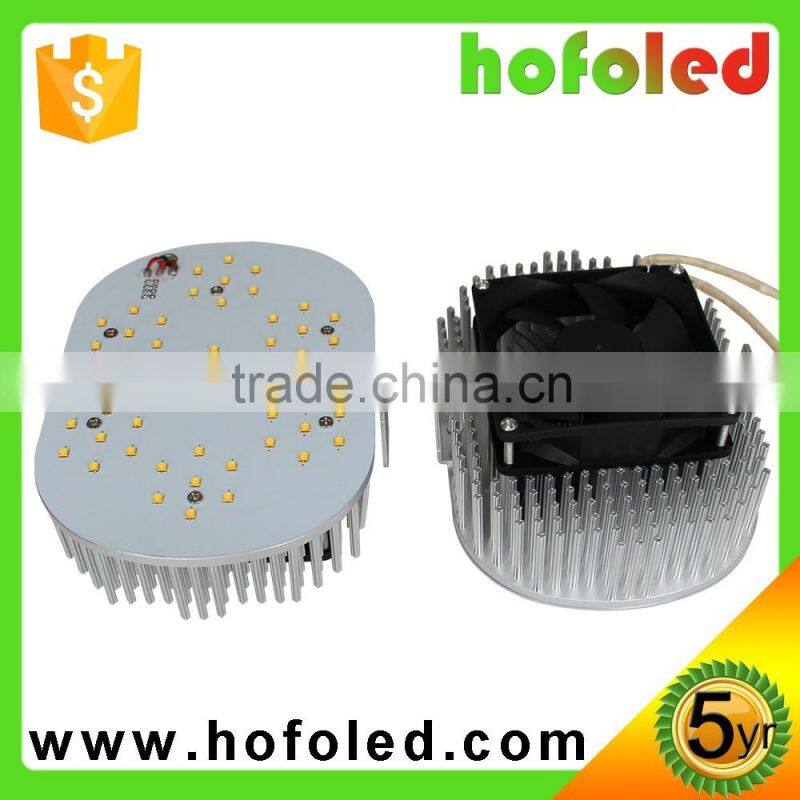

5) Positive cooling technology with Fan on the back
6) Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7) Industry-leading thermal management utilizing patented technology
8) Top quality with warranty of 5 years warranty
9) LM79, LM80.IES testing reports available
LED retrofit kits can install with a bracket, and good connector. Warranty for 5 years, free to replace.
Our LED retrofit kits are simple to use and easy install
1.Remove the existing ballast and bulb.
2.Remove the existing reflector. It is not needed as our LED lights are directional
3.Install the LED driver where the old ballast was.
4.Screw in the LED Retrofit kit into the existing socket. We have both E26,E27 and E39 sockets.
5.Wire the driver to the LED Head. The socket is only used to hold the retrofit kit. It remains un-powered.
6.Close the fixture.
Certification of LED retrofit kits and our factory production line.
We sell led lights all over the world and support OEM ODM service.
LED retrofit kits 1W LED replace about 3W traditional light MH/HPS For example: 100W LED replace 300-400W Metal halide.
We can offer LED Retrofit Kits from 60W to 150W.Customer can replace street light, wall pack light, high bay,flood light etc widely application
Payment and shipping:
1.Payment T/T,L/C,Paypal,Western Union.Small order is 100%, for large amount,30% down payment, 70% balance before shipping
2. MOQ: 10 pcs, Discounts are offered based on order quantity.
3. Delivery time: Sample in 3- 7 working days, large order 7-15 working days
4. Supply Ability: 50,000 Piece/Pieces per Month
5. Any inquire about our product will be reply in 8 hours
