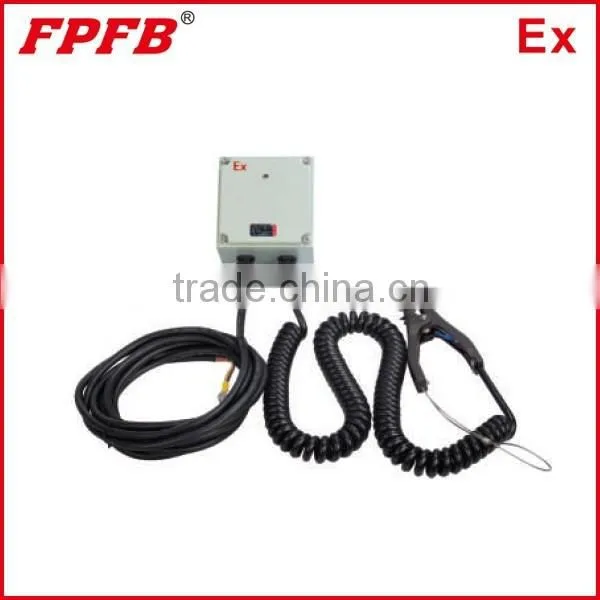

BJB-02 china supplier explosion proof electrostatic earthing alarm device

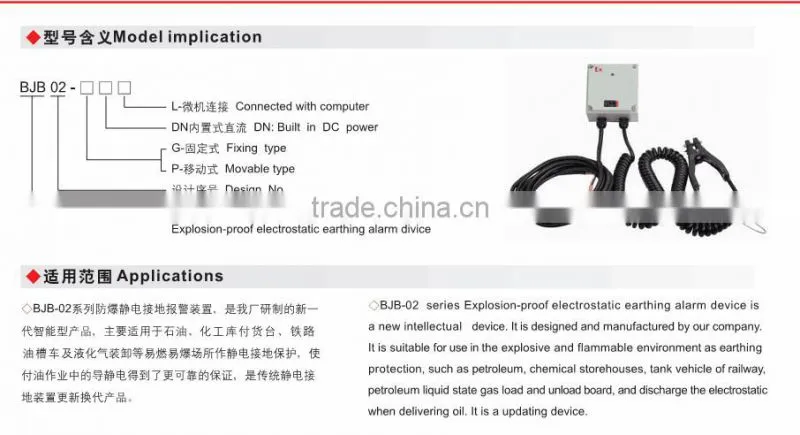

1.This product is a new intellectual device.
2.This item is suitable for use in the explosive and flamemable environment as earthing protection.
3.Digital circuit.
4.Alarm resistnce can be set in according to the locale.
POWER Voltage |
Temperature class |
Hazardous area |
Cable outer dia |
Rated power |
DC3V |
T1-T4 |
zone1.2 zone20.21.22 |
10-14mm 12-18mm 15-26mm |
1kw 3kw 6kw 9kw 12kw 15kw |
Techinical parameters:
- Meet standard: GB3836.1, GB3836.2, GB3836.3, GB12476.1, IEC60079
- Explosion-proof mark: Exde II BT4 Gb, Exde II CT4 Gb, DIP A21 TA,T4.
- Rated capacity:0.5kVA, 1kVA.
- Primary voltage: AC220/380V
- Secondary voltage: AC6.3/12/24/36/110/127
- Protection grade: IP54, IP65
- Explosion proof grade: WF1
- Inlet thread: 2-G3/4", G1"
- Cable outer dia: Φ9mm~Φ14mm, Φ11~Φ18mm

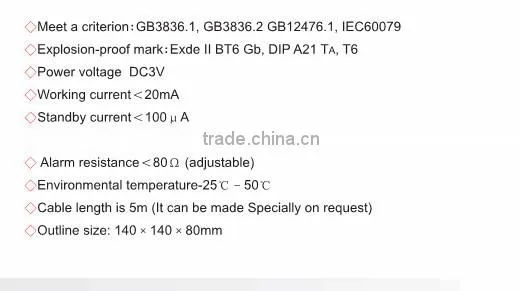

Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB12476.1, IEC60079.
- Ex-proof Mark:Exde II BT6 Gb, DIP A21 TA, T6.
- Power voltage: DC3V
- Working current: <20MA
- Standby current: <100μA
- Responding time: <2S
- Alarm resistance:<80Ω (adjustable)
- Environmental temperature: -25℃~50℃
- Cable length is 5m (It can be made Specially on request)
- Outline Size: 140*140*80mm

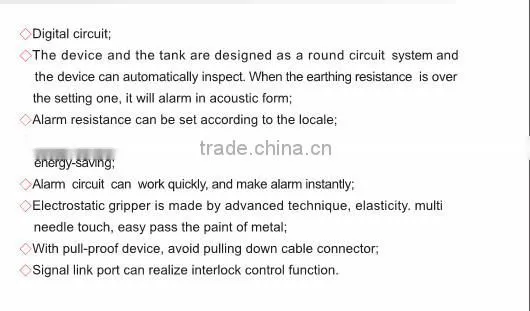

Product Features:
- Digital circuit.

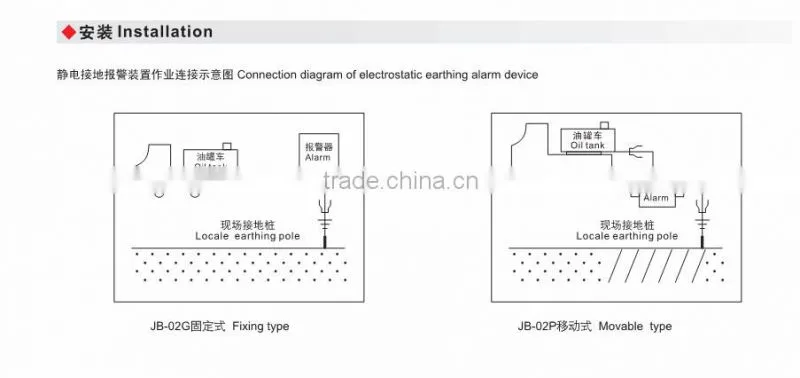

- The device and the tank are designed as a round circuit system and the device can automatically inspect. When the earthing resistance is over the setting one, it will alarm in acoustic form;
- Alarm resistance can be set according to the locale;
- Operate without switch, 24 hours on duty, low power consumption and energy-saving;
- Alarm circuit can work quickly, and make alarm instantly;
- Electrostatic gripper is made by advanced technique, elasticity. multineedle touch, easy pass the paint of metal;
- With pull-proof device, avoid pulling down cable connector;
- Signal link port can realize interlock control function.
