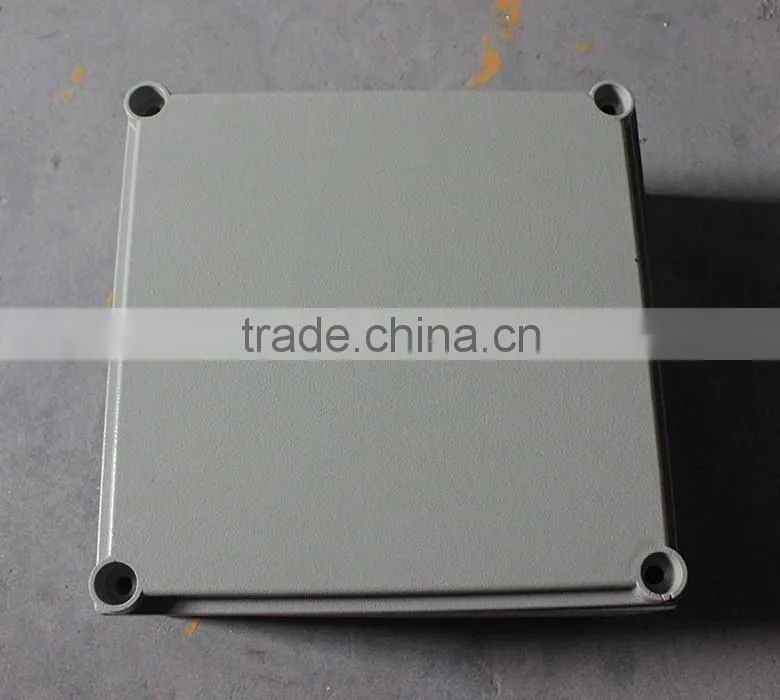

420*720mm explosion proof ip65 enclosure
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T4.
3. Enclosure is cast with aluminnium alloy,surface is sprayed with plastic,fine outline.
4. With overload and short circuit protection functions.
5. Mould structure,each branch circuit can be assemled freely.
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Designed for Combustible dust Zone20,Zone21,Zone22.
- Can be used in the environment of temperature group for T1~T6.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
- Used for power distribution in illumination or power circuit.
Techinical parameters:
- Meet a criterion: GB3836.1,GB3836.2, GB3836.3, GB12476.1, IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-1.
- Ex-proof Mark: Exde II BT4/CT4 Gb, DIP A21 TA,T4
- Rated voltage:AC220/380V
- Rated current:≤630A
- Current of branch:≤400A
- Protection grade:IP54, IP65
- Corrosion proof:WF1
- Inlet thread:G1/2"~G4"
- Cable outer dia: 6mm~80mm
- Into the outlet: Posts into, out of or into the( routine for the next into the out,please indicate the other direction.)

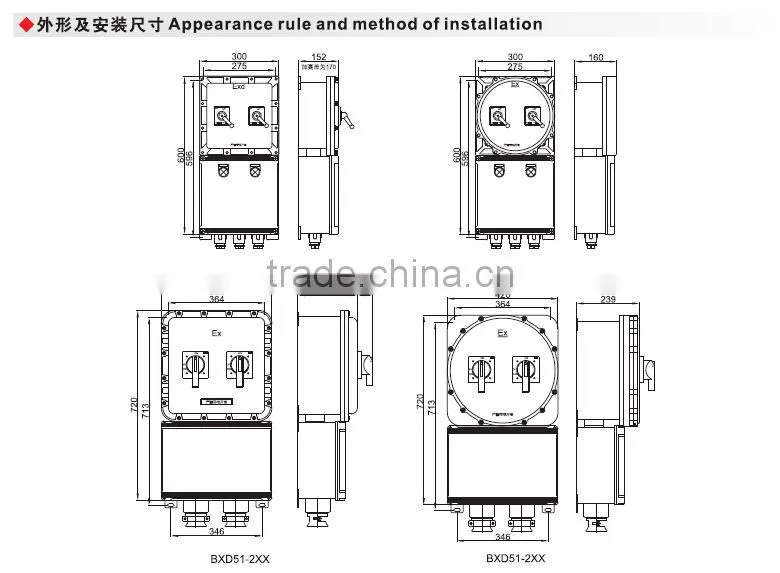

- Installation method: Hanging type, vertical type.

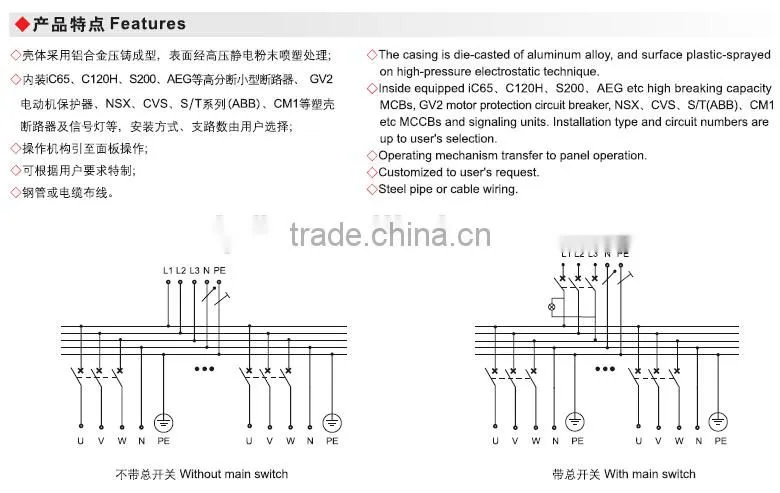

Product Features:
- Aluminum alloy enclosure, surface plastic-sprayed on high-pressure electrostatic technique.
- Inside equipped iC65, C120H,S200,AEG etc high breaking capacity MCBs, GV2 motor protection circuit breaker, NSX,CVS,S/T(ABB),CM1 etc MCCBs and signaling units. Installation type and circuit numbers are up to users' selection.
- Operating mechanism transfer to panel operation.
- Can be customized on request.
- Steel pipe or cable wiring.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
