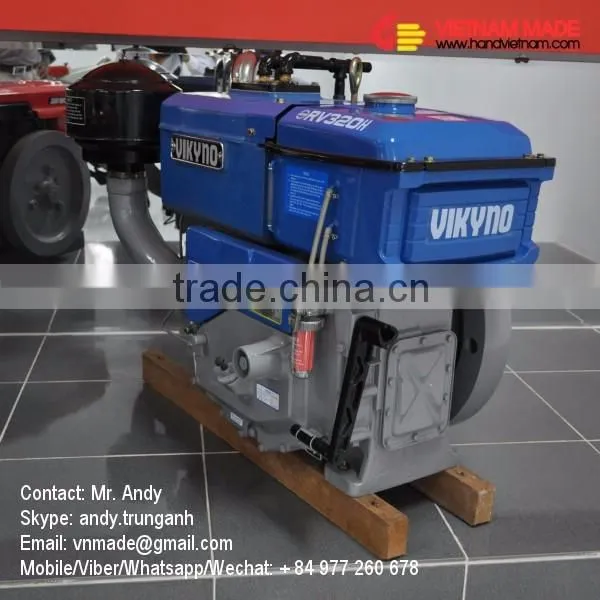

Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp

Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp thumbnail-1
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp thumbnail-2
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp thumbnail-3
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp thumbnail-4
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp thumbnail-5
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp thumbnail-6
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp photo-1
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp photo-2
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp photo-3
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp photo-4
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp photo-5
Water Cooled Single Cylinder Diesel Engine RV320H Radiator Without Lamp photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Water Pump/Generator,Farming Machinery,Tractor/ Power Tiller
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Viet Nam Made Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ho Chi Minh Viet Nam
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Water Pump/Generator,Farming Machinery,Tractor/ Power Tiller
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Vietnam
Brand Name VIKYNO
Model Number RV320H
Dimension(L*W*H) 1028 x 492 x 762
Weight 230
After-sales Service Provided No overseas service provided

Company Information

    SOUTHERN VIETNAM ENGINE AND AGRICULTURAL MACHINERY CO., LTD (SVEAM)  has been merged between two State-owned companies VIKYNO CO., LTD (Established in 1967) and  VINAPPRO CO., LTD (Established in 1968) under Vietnam Engine & Agricultural Machine Corporation (VEAM) since January 01st., 2009.


VIETNAM MADE CO.,LTD is top exporter of Vikyno engines and other Vikyno products made in Vietnam & Japan. Since established, from AGRITECH CO.,LTD and now VIETNAM MADE CO.,LTD, we are now supply and provide high quality agricultural machinery to many countries in the world such as Myanmar, India, Sri Lanka, Panama, Chile, Indonesia, Malaysia, Philippines, Iran, Tanzania...to increase the effective and efficiency of farmer around the world.



We have strong sales team online 24/7 to support all customers who are searching for products such as vikyno diesel engine, rice reaper, KUBOTA products categories as below

  • KUBOTA diesel engine model RT80+, RT90+, RT125DI, RT140DI…
  • KUBOTA tractor model B2420 (24hp), L3108 (31hp), L3408 (34hp), L4508 (45hp), M6040 (60hp), M9540 (95hp).
  • KUBOTA combine harvester model DC-35 (35hp), DC-60 (60hp), DC-60 with corn kit CK-60, DC-70(70hp)
  • KUBOTA transplanter SPW-48C (4 rows, walking behind), NSPU-68C (6 rows, riding)
  • KUBOTA implements such as rotary tiller, disc plough, disc harrow
  • KUBOTA genuine spare parts
VIETNAM MADE CO.,LTD under direction of Mr. Andy will lead the agricultural machinery sector of Vietnam come to next stage. We are welcome all customers visit Vietnam and build strong relationship with our company. When you want to find any agricultural machinery such as diesel engine, brand VIKYNO, KUBOTA..., Mr. Andy will be the first one to serve you.

water cooled single cylinder diesel engine RV320H radiator without lamp
Mr. Andy - Vietnam Made Co.,ltd invited customers to visit VIKYNO & VINAPPRO factory

water cooled single cylinder diesel engine RV320H radiator without lamp

Mr. Andy - Vietnam Made Co.,ltd in warehouse of KUBOTA


water cooled single cylinder diesel engine RV320H radiator without lamp

Mr. Andy - Vietnam Made Co.,ltd and KUBOTA tractors

Product Description



Model

RV320H

   Type

4 cycle, 1 cylinder, horizontal

   Bore x Stroke (mm)

120 x 125

   Displacement (cm3)

1413

   Continuous output (HP/r.p.m)
   Maximum output

26/2200
30/2400

   Maximum torque (kgm/rpm)

9.7/1400

   Compression ratio

18.5

   Fuel

Light diesel oil

   Fuel tank capacity (l)

17

   Specific fuel consumption (g/HP/hr)

190

   Nozzle opening pressure(Kg/cm2)

220

   Lubricating oil

SAE30,20,10w-30

   Lubricating oil capacity (l)

6

   Combustion system

Drect injection

   Starting system

Handle starting –Electric starter

   Cooling system

Hopper

   Cooling water capacity (l)

24

   Weight (kg)

230

   Dimensions:L x W x H (mm)

1028 x 492 x 762



water cooled single cylinder diesel engine RV320H radiator without lamp

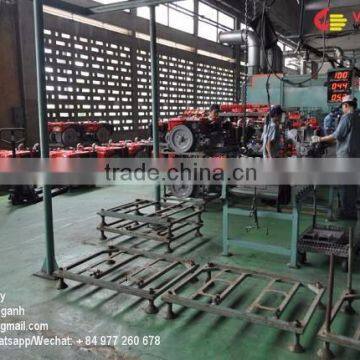

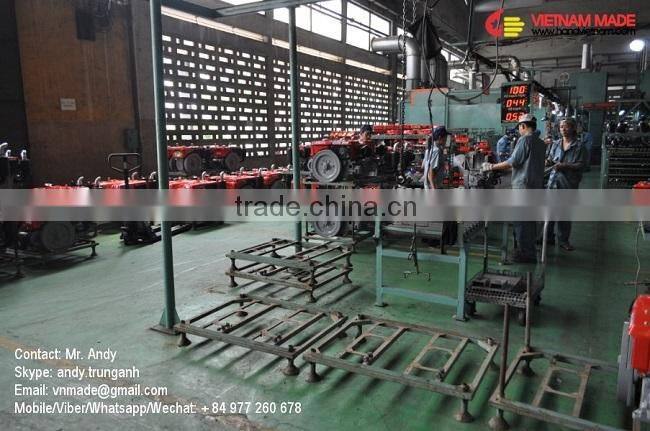

All the diesel engines will be assembled in this place
water cooled single cylinder diesel engine RV320H radiator without lamp

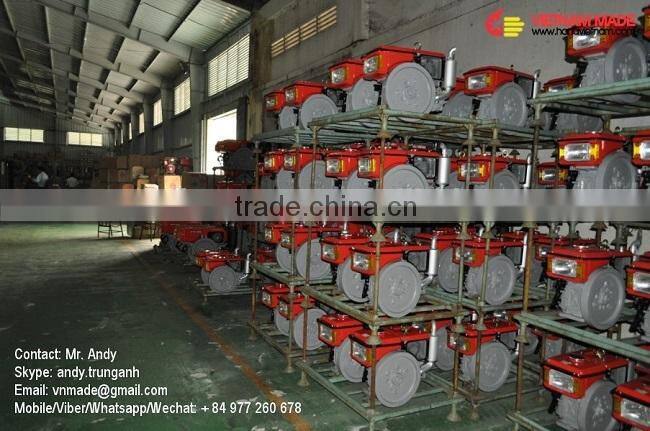

Warehouse of VIKYNO
water cooled single cylinder diesel engine RV320H radiator without lamp

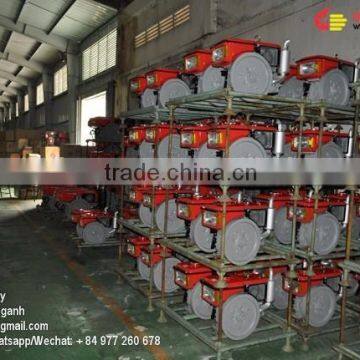

VIKYNO diesel engines in the warehouse
water cooled single cylinder diesel engine RV320H radiator without lamp

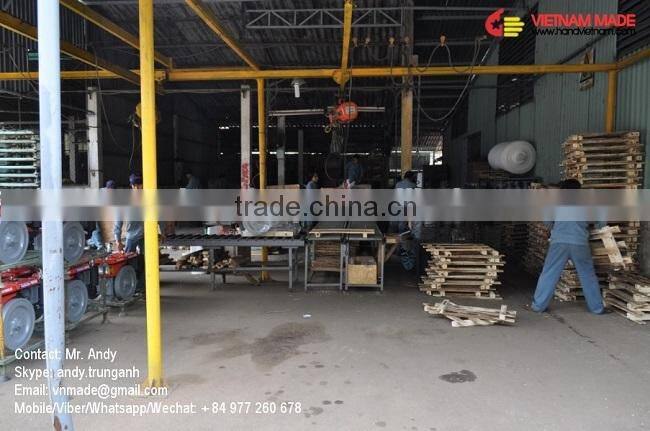

Vikyno engines are packaging by workers
water cooled single cylinder diesel engine RV320H radiator without lamp
Vikyno engines package
water cooled single cylinder diesel engine RV320H radiator without lamp

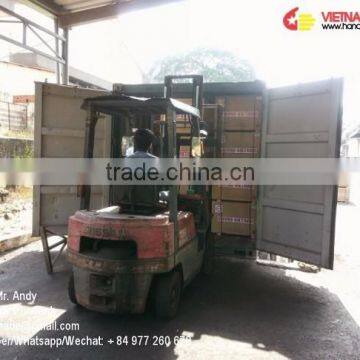

Vikyno engine in the container & ready to ship
water cooled single cylinder diesel engine RV320H radiator without lamp
Vikyno engines are wating to be loaded into the containers
water cooled single cylinder diesel engine RV320H radiator without lamp
Mr. Andy in Vikyno factory & warehouse tracking the loading
water cooled single cylinder diesel engine RV320H radiator without lamp
Vikyno workers checks the arrangement of engine
water cooled single cylinder diesel engine RV320H radiator without lamp
Vikyno engines are complete loading.
