FDZ52 engineering plastic tri-proof circuit breaker corrosion proof junction box
1. Enclosure is die casted of aluminnium alloy, high voltage electrostqtic powder coated surface.
2. Compound structure, main compartment is of flameproof structure and connection compartment is of increased safty type.
3. With overload short circuit, undervoltage protection, used for on-off electrical apparatus and illumination circuit.
| Model | Rated voltage | Inlet thread | Anti-corrosion | Protection grade |
Body Size (MM) |
| FDZ52 |
AC220V AC380V |
G1/2-G2 1/2" | WF2 | IP65 |

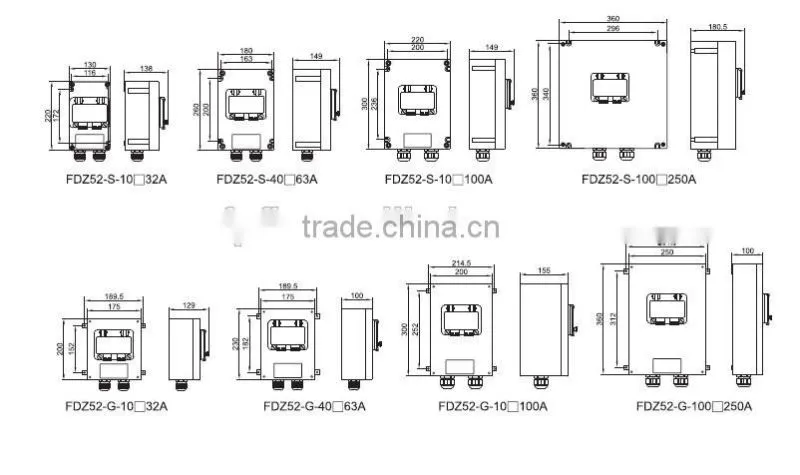

10A-100A:225*150*110 400A:520*400*300 630A:420*720*230 |

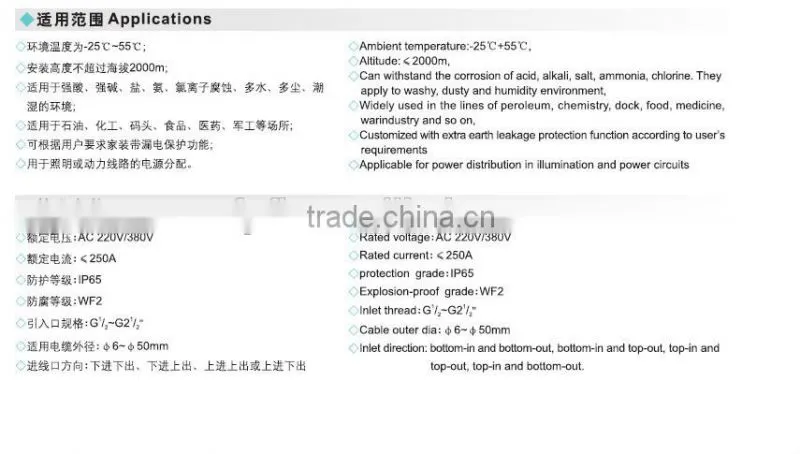

APPlications:
- Ambient temperature:-25℃~55℃.
- Altitude:≤2000m.
- Can withstand the corrosion of acid, alkali, salt, ammonia, chlorine. They apply to washy, dusty and humidity environment.
- Widely used in the lines of peroleum, chemistry, dock, food, medicine, warindustry and so on.
- Customized with extra earth leakage protection function according to user's requirements.
- Applicable for power distribution in illumination and power circuits.
Techinical parameters:
- Rated voltage: AC220/380V
- Rated current: ≤250A
- Protection grade: IP65
- corrosion-proof grade:WF2
- Inlet thread: G1/2"~G21/2"
- Cable outer dia:Φ6mm~Φ50mm
- Inlet direction: bot-in and bot-out, bot-in and top-out, top-in and top-out, top-in and bot-out.

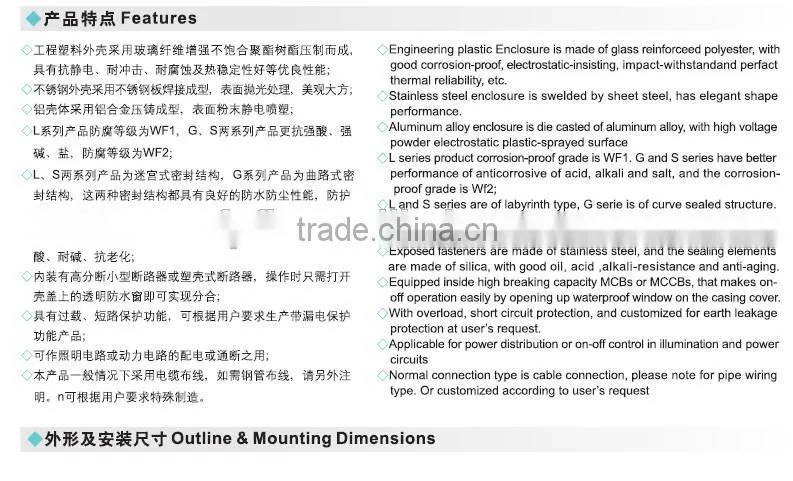

Product Features:
- Engineering plastic Glas reinforced polyester enclosure, with the elegant shape, corrosion resistance, static, electricity, resistance, impact resistance and good thermal reliability.
- Stainless steel enclosure is swelded by sheet steel, has elegant shape performance.
- Aluminum alloy enclosure is die casted of aluminum alloy, with high voltage powder electrostatic plastic-sprayed surface.
- L series production can resis the acid, salt and alkli, and its corrosion-proof grade is WF1.
- G and S series have greater function of resisting the acid, salt and alkli, and its corrosion-proof grade is WF2.
- L and S series are of labyrinth type, G series is of curve sealed structure. Both of them assure the high water-proof and dust-proof, protection grade are all IP65.
- Exposed fasteners of stainless steel material, and the sealing elements are made of silica, with good oil, acid, alkali-resistance and anti-aging.
- Equipped inside high breaking capacity MCBs or MCCBs, that makes on-off operation easily by opening up waterproof window on the casing cover.
- With overload, short circuit protection, and customized for earth leakage protection at users' request.
- Applicable for power distribution or on-off control in illumination and power circuit.
- Suitable for cable wiring. If need steel pipe wiring plz note. or customized on request.
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
