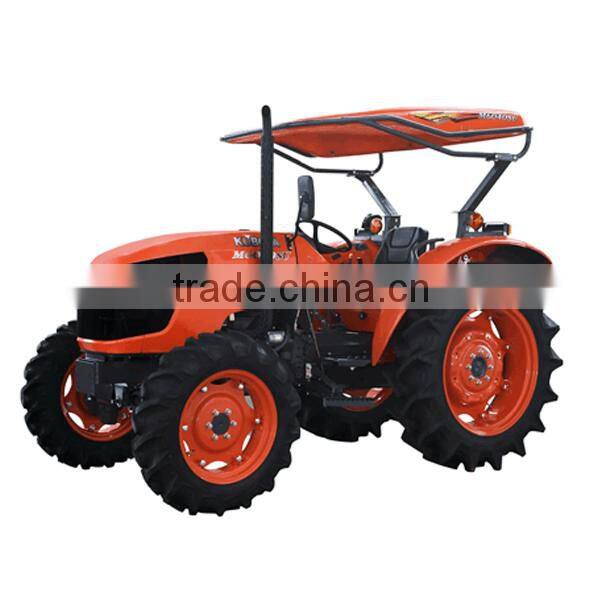

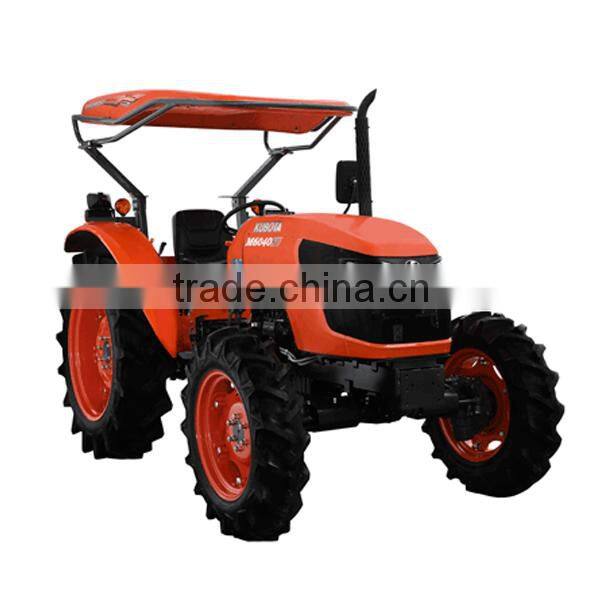

Help CenterTractor KUBOTA M6040 >50HP
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Gear Drive
Brand Name
KUBOTA
Model Number
M6040
Place of Origin
Japan
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
For paddy fields, dry fieldsMulti-purpose paddy fields and rice fields dry
M product line to meet the new higher level of job
For paddy fields, dry fields
Introducing a new line of tractors M6040SU for a simple hard work.
M product line to meet the new higher level of job performance.
Multi-purpose paddy fields and rice fields dry
All of the technologies are converging in Kubota tractors for paddy fields and dry fields. Easy operation brings breath of fresh air in the work field.
FEATURES

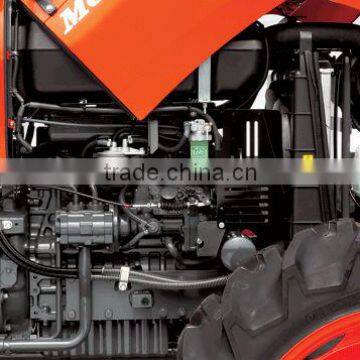

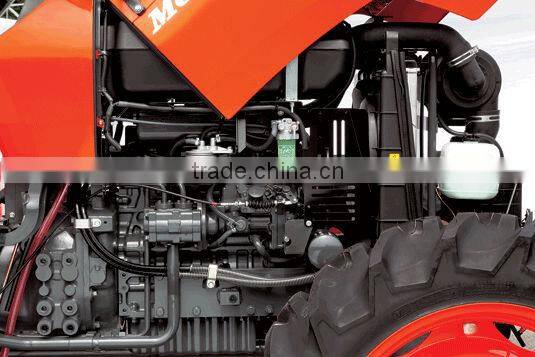

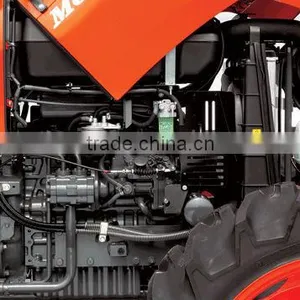

Powerful engine but fuel economy
M6040SU new tractor engines use TE2 V2403 - DI - powerful but fuel-efficient . The engine is equipped with 4 -cylinder , direct fuel injection system with turbocharger ( turbo ) to create the actual capacity of the engine is 59HP and 52HP high power PTO brings all the power you need in about low revs to force out the difficult tasks and activities that require greater traction . In addition, emissions of low engine tractor M6040 will be very good for productivity , and profitability as well as the environment .

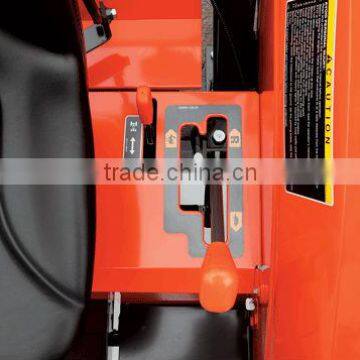

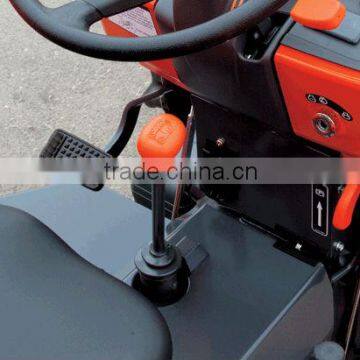

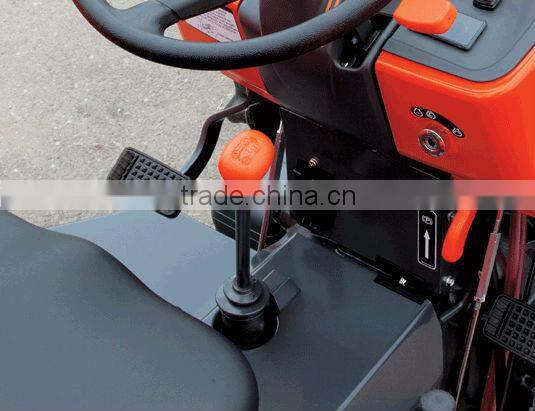

Transmission speeds using copper
Tractors equipped M6040SU 8 forward and 4 reverse some use to increase efficiency at the same speed move . The shift lever can be easily controlled thanks to the contract between the transmission speed ( slow level ) and stop and move backwards to help more effectively .

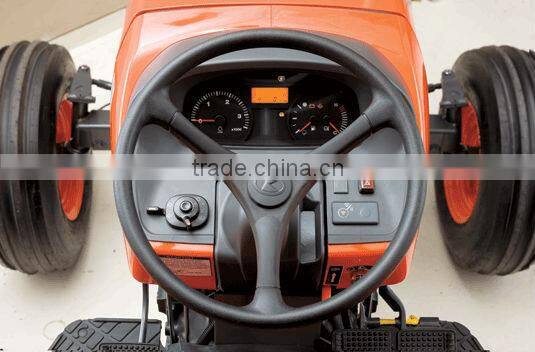

Table LCD digital clock
A panel LCD digital clock helps to observe the important parameters such as the rotational speed of the PTO and hour meter information even when vision is obstructed . Directive large sized needle gauges including engine speed , coolant temperature and fuel level . There, the battery warning light battery to prevent unexpected damage .

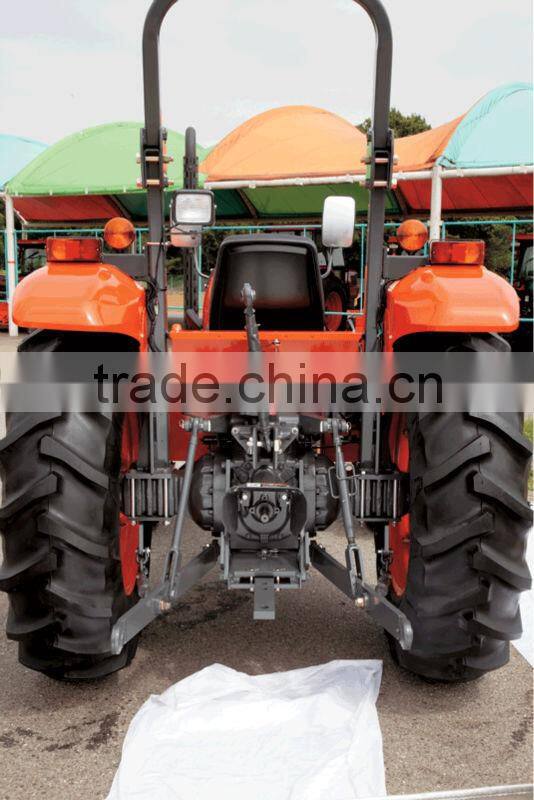

3 point lifting
Type I & II 3 point lifting hook can be hooked on adjustable weight screw Turnbuckle Turnbuckle and chained to farm equipment assembly followed fast and easy . 1900kg maximum lift capacity at lift point .
SPECIFICATION
| Specifications | |
| Drive Train System | 4-Wheel Drive |
| Engine System | |
| Engine type | Kubota Diesel Engine - Center Direction Injection Type: 4-Cylinder, 4-Cycle, In-line Water Cooled |
| Model | V2403-DI-TE2 |
| Net HP | 60 (hp) |
| PTO HP | 52 (hp) |
| Max Output | 2,700 (rpm) |
| Displacement | 2,434 (cc) |
| Bore X Stroke | 87 x 102.4 (mm) |
| Battery capacity | 12 (volt) |
| Fuel Tank | 57 (litre) |
| Traveling System | |
| Standard tire size | Front: 9.5-22 (inch) |
| Rear: 16.9-28 (inch) | |
| Transmission | Synchromate |
| Directional gear | Synchro Shuttle (L & R only) |
| Clutch | Dry type single plate |
| Transmission speed | 8 forward and 4 bankward |
| Steering | Hydrostatic power steering |
| Braking system | Wet multiple disc brake immersed in oil |
| Front wheel drive train system | Bevel Gear |
| Differential lock system | - |
| Speed | Forward: 2.5-28.3 (km/hr) |
| Backward: 3.2-9.9 (km/hr) | |
| Power Take-off System (PTO Shaft) | |
| PTO / Engine speed | 540 / 2,259 (rpm) |
| Hydraulic System | |
| Hydraulic pump flow rate | 41.6 (litre/min) |
| 3-point hitch control system | Position Control, Draft Control and Mix Control |
| 3-point hitch | SAE No. 1 & 2 |
| Max. lift force at lift points | 1,900 (kg) |
| Max. lift force - 24 inch behind lift points | 1,500 (kg) |
| Dimensions / Weight | |
| Weight (without counter weight) | 1,800 (kg) |
| Length (front bumper-rear wheel) | 3,420 (mm) |
| Width (left - right tire bead) | 1,865 (mm) |
| Wheel base (front - rear tire) | 2,000 (mm) |
| Height | 2,340 (mm) |
| Ground clearance | 435 (mm) |
| Tread Width (Left-Right) | Front: 1,360-1,460 (mm) |
| Rear: 1,420-1,720 (mm) | |
FARM EQUIPMENT

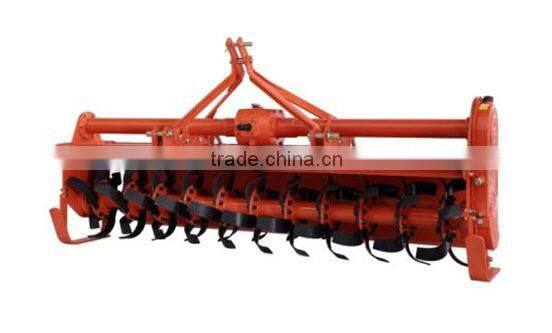

Tiller RX220H
- Uses: Used in field cultivators

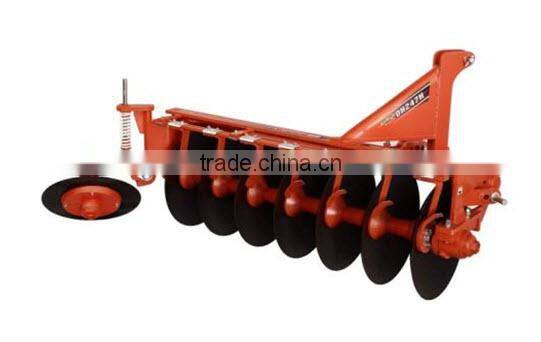

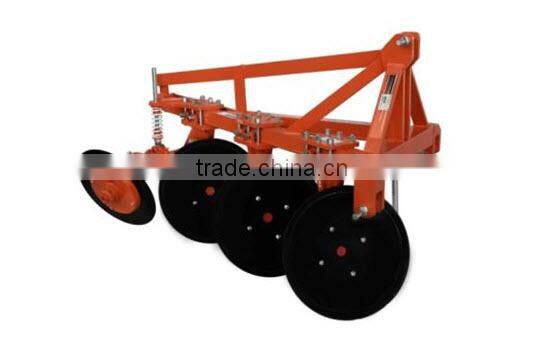

Plough Disc DP243H
- Purpose: Used in the plow soil in rice fields and dry fields
Plough Disc DH246F
- Uses: Used in harrowing rice fields and dry fields
