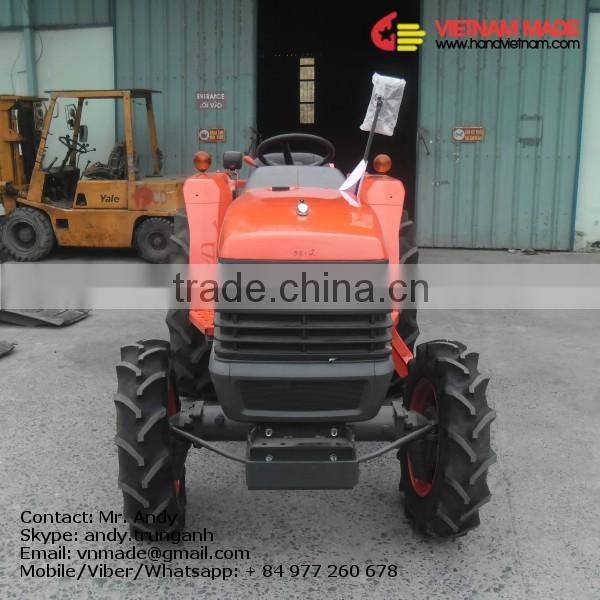

Lawn Tractor L3108

Lawn Tractor L3108 thumbnail-1
Lawn Tractor L3108 thumbnail-2
Lawn Tractor L3108 thumbnail-3
Lawn Tractor L3108 thumbnail-4
Lawn Tractor L3108 photo-1
Lawn Tractor L3108 photo-2
Lawn Tractor L3108 photo-3
Lawn Tractor L3108 photo-4
Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Viet Nam Made Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
HOCHIMINH VIETNAM
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Brand Name KUBOTA
Model Number L3108
Place of Origin Japan
After-sales Service Provided No overseas service provided
Product Description

Specifications


Model

L3108

Engine

Type

Kubota D1703-M-DI

No. of cylinders

3

Total displacement ( cc )

1647

Engine gross power ( HP )

31.6@2700 rpm

Engine net power ( HP )

30.2@2700 rpm

PTO power ( HP )

26.8@2700 rpm

Fuel tank capacity ( l )

34

Dimensions

Overall length (without 3P)

2920

Overall width ( mm)

1305

Overall height (Top of steering wheel) ( mm)

1500

Wheelbase ( mm)

1610

Min. ground clearance ( mm)

340

Tread

Front ( mm)

1095

Rear ( mm)

1020

Weight(with mass) ( kg )

1050

Clutch

Dry type Single stage

Traveling System

Tires

Front

 7 – 16

Rear

11.2 – 24

Steering

Integral type power steering

Transmission

Gear shift, 8 forward and 4 reverse

Brake

Wet disk type

Min. turning radius (with brake) ( m )

2.5

Traveling speed ( km/h )

21.1

Hydraulic

Hydraulic control system

Position control

Pump capacity ( l/min )

23.9

Three point hitch

Category I

Max. lift force

At lift points ( kg )

906

24 in. behind ( kg )

651

PTO

PTO (Engine speed) ( rpm )

540 (2,430), 750 (2,596)



lawn tractor L3108



lawn tractor L3108



lawn tractor L3108



lawn tractor L3108



lawn tractor L3108

Packaging & Shipping

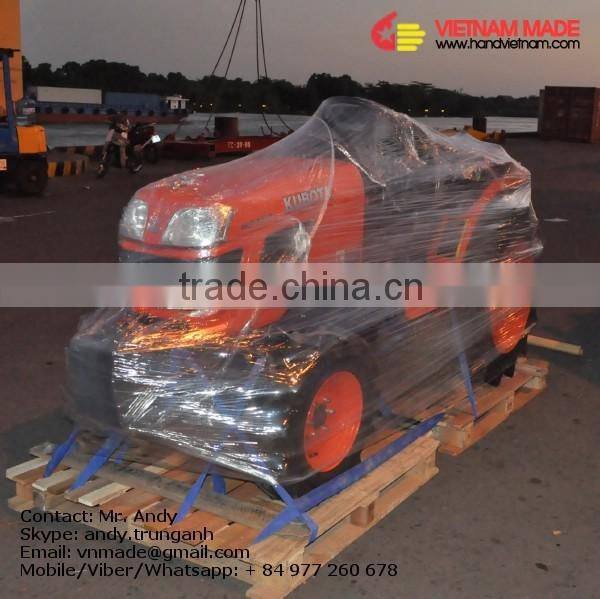

LCL SHIPPING

Carefully cover with plastic on the pallet

lawn tractor L3108

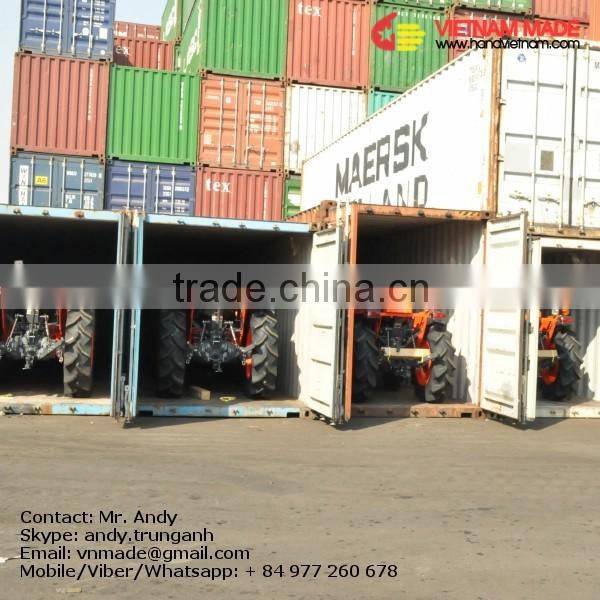

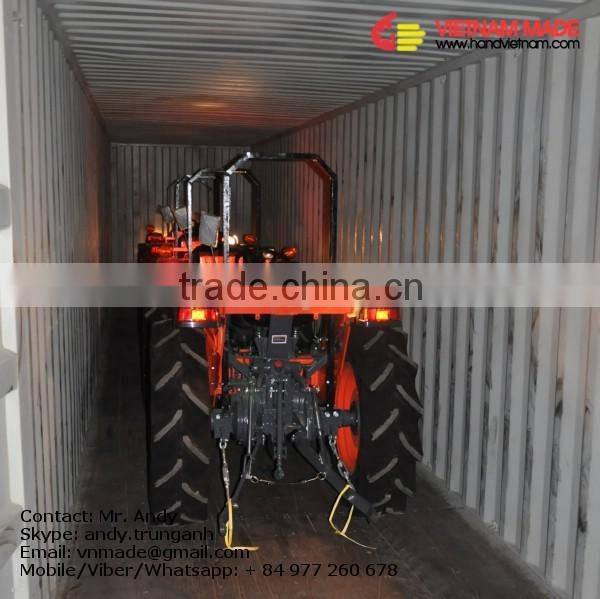

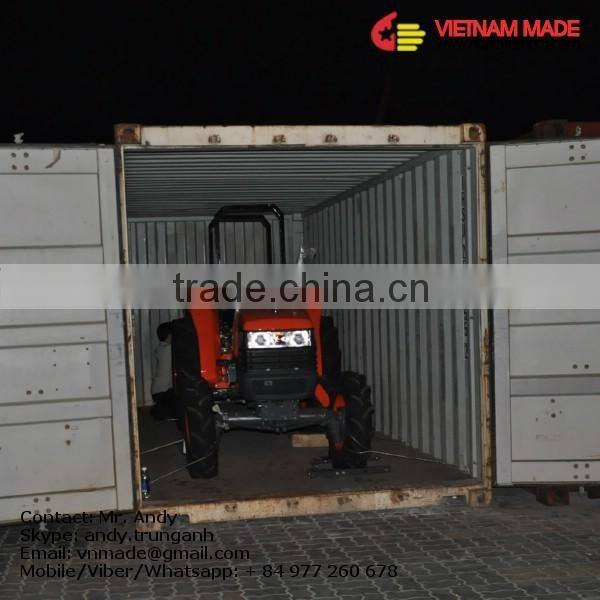

FCL SHIPPING

Loading complete tractor in the container as below



20FT: 2 sets

lawn tractor L3108



40FT: 4 sets

lawn tractor L3108



lawn tractor L3108
