Help CenterKUBOTA Diesel Tractor M9540
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Gear Drive
Brand Name
KUBOTA
Model Number
M9540
Place of Origin
Vietnam
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Multi-purpose paddy fields and rice fields dryAll of the technologies are converging in Kubota tractors for paddy fields
FEATURES
Exeptional hydraulic system with high performance
With 2 handles sheathed Nan lift device 3 chambers connected devices can improve the connection between khaong weighing up to 2.5 kg . pump intensity increased 64.3 liters / minute , helping to lift the connector cavity devices are faster in just 2:41 seconds
Exeptional rigdity for the front wheel chassis
Design wheel hub sealed to prevent water , dust and dirt . There is a large structure strong to withstand forces well , maybe moving through any terrain , in addition to the wheel hub teeth and the teeth are oblique to increase energy for plant operations
Exeptional system smoothly numbers quickly
Need the number to 8 and 8 reverse gears , shifters without having to stand back , can be adjusted to suit the terrain on each to help carry out the work more quickly , more efficiently
It should turn : to be no need to clutch , gear lever backward and forward speed as nahu , rapid progress makes the work more suitable for frequent need to move forward, backward
3 point lifting
Type I & II 3 point lifting a link adjust valve lift bar and chain to test assembly faster and easier than pulling farm equipment near the rear. 1900kg lifting capacity at the end of the bar is associated with the horizontal bar links .
The system needs to move 2 : can be installed and removed without need some downtime , increased autonomy and safety , especially in steep spots
Anti-shock system front wheel automatic
during operation , move the front wheels straight , dongkhoa will automatically lock the front wheels to help further enhance the operational capabilities of the front wheel , high efficiency at work
Subsystems : the wet type is controlled by hydraulic drive increased longevity of alcohol, gently help in the clutch should be able to rotate activities all day without fatigue and does not need frequent mode of freedom ,
Brake
brake discs dipped in oil , mercury control by braking helps to be gentle
Exeptional design trendy
With perfect design from the front to the back to create special kah1c luxurious , eye-catching design with curved arches
Spacious cockpit
Comfortable, working continuously for long , adjustable seat cushions , soft shock absorbing support . In addition , the joystick is designed to help regulate the tractors and equipment more convenient connection compartment
Electronic monitor
Displays speed and uptime tubers machine correctly , readability visible even in the dark
Power steering
Strong , light can be adjusted higher as you like
SPECIFICATION
| Specifications | |
| Drive Train System | 4-Wheel Drive |
| Engine System | |
| Engine type | Kubota Diesel Engine - Center Direction Injection Type: 4-Cylinder, 4-Cycle, In-line Water Cooled |
| Model | V3800-DI-TI |
| Net HP | 95 (hp) |
| PTO HP | 84 (hp) |
| Max Output | 2,600 (rpm) |
| Displacement | 3,769 (cc) |
| Bore X Stroke | 100 x 120 (mm) |
| Battery capacity | 12 (volt) |
| Fuel Tank | 90 (litre) |
| Traveling System | |
| Standard tire size | Front: 12.4-24 (inch) |
| Rear: 18.4-30 (inch) | |
| Transmission | Synchromate |
| Directional gear | Synchro Shuttle |
| Clutch | Multiple Dry Clutch plates immersed in oil, Controlled by hydraulic |
| Transmission speed | 8 forward and 8 bankward |
| Steering | Hydrostatic power steering |
| Braking system | Disc brake immersed in oil, controlled by hydraulic |
| Front wheel drive train system | Bevel Gear and planetary gear |
| Differential lock system | Automatic (Limited Slip) |
| Speed | Forward: 2.6-32.4 (km/hr) |
| Backward: 2.6-32.2 (km/hr) | |
| Power Take-off System (PTO Shaft) | |
| PTO / Engine speed | 540 / 2,205 (rpm) |
| Hydraulic System | |
| Hydraulic pump flow rate | 64.3 (litre/min) |
| 3-point hitch control system | Position Control, Draft Control and Mix Control |
| 3-point hitch | SAE No. 2 |
| Max. lift force at lift points | 3,900 (kg) |
| Max. lift force - 24 inch behind lift points | 3,300 (kg) |
| Dimensions / Weight | |
| Weight (without counter weight) | 2,710 (kg) |
| Length (front bumper-rear wheel) | 3,760 (mm) |
| Width (left - right tire bead) | 2,010 (mm) |
| Wheel base (front - rear tire) | 2,250 (mm) |
| Height | 2,535 (mm) |
| Ground clearance | 450 (mm) |
| Tread Width (Left-Right) | Front: 1,660 (mm) |
| Rear: 1,540-1,940 (mm) | |
FARM EQUIPMENT
Tiller RX220H
- Uses: Used in field cultivators
Plough Disc DP243H
- Purpose: Used in the plow soil in rice fields and dry fields
Plough Disc DH246F
- Uses: Used in harrowing rice fields and dry fields

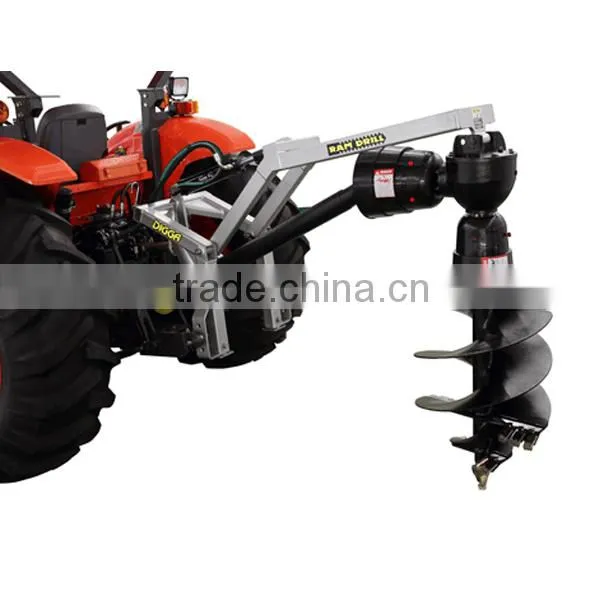

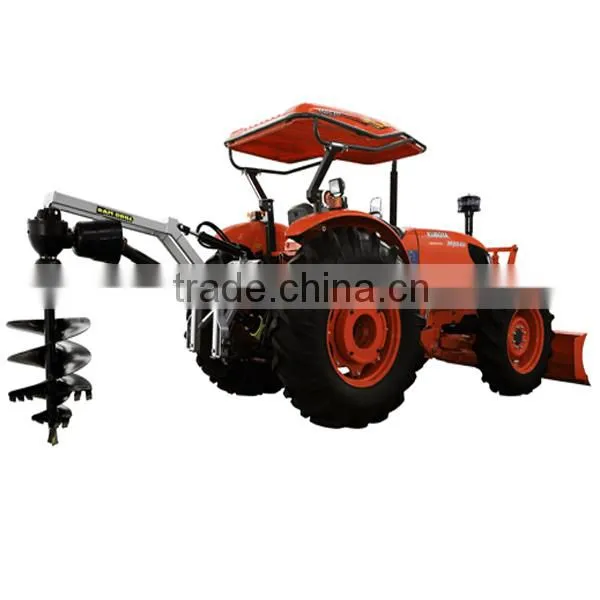

Axis drilling equipment
- Uses: Used in drilling holes for tree planting rubber
PRODUCT PHOTO
