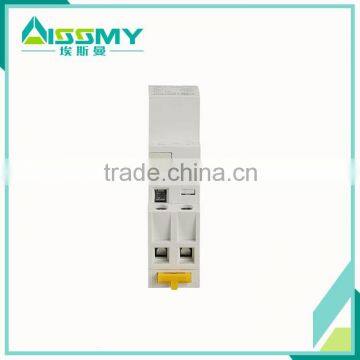

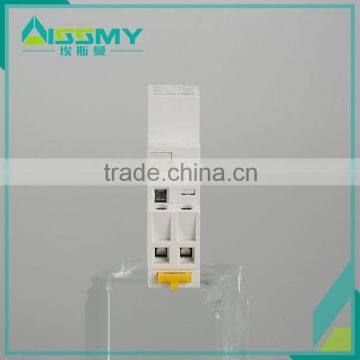

The original product in Aissmy 380V 1P household AC 25A 50/60Hz NO NC modular contactor

The original product in Aissmy 380V 1P household AC 25A 50/60Hz NO NC modular contactor

Application

 CT modular contactor is applicable to alternative circuit with rated voltage up to 400V, rated current up to 100A and rated frequency 50/60Hz. The product is used for remote switching and controlling of power circuit.

Product Description

CT contactors are available in two versions:

Contactors without manually-operated

Contactors with manually-operated

The breadth of the CT contactor range satisfies most application cases.

CT contactors can be combined with auxiliary control, protection and indication functions.

Normal operation and mounting requirement

1.Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.

2.Altitude above sea level less than 2000 m.

3.Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.

4.Installation class II or III.

5.Pollution class 2.

6.Installation method DIN Rail mounting type.

7.The external magnetism shall not be more than 5 times of terrestrial one.

8.Product shall be installed at the place where there shall be no severe impact and vibration.
