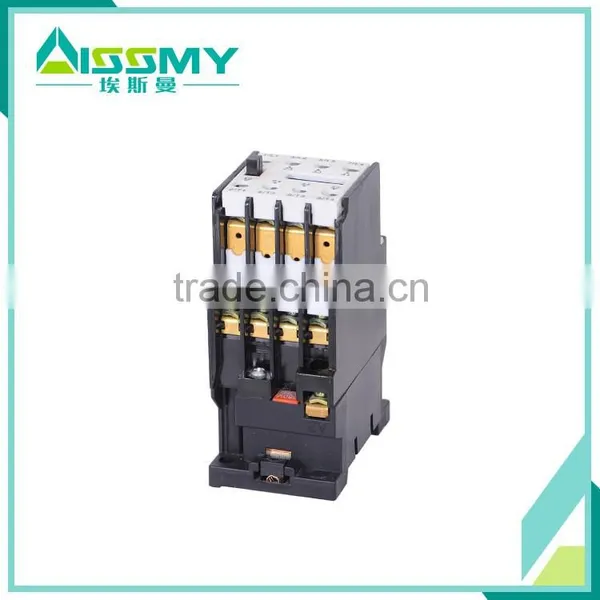

Aissmy Mechanical Interlocking Reversing ac Contactor, ac Contactor 32a, Motor Protective Cj20 ac Contactor photo-4
US$ 0.5 - 60 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aissmy
Model Number:
CJ20
Contact Supplier Request Quote Chat Now
Shanxi Aisiman Electric Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Aissmy
Model Number CJ20
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, 220v 380v 660v
Main Circuit Rating Current Other, 32a

CJ20 AC Contactor Low Voltage Household Contactor

Scope of application

CJ20 series AC contactor(hereinafter referred to as the contactor),is mainly used in the circuit of AC 50Hz or 60Hz ,rated working voltage up to 660V ,reted current up to 630A for remote switch on and off the circuit ,and can combine with the appropriate thermal overload relay , to protect the circuit which may operate over the load.



The contactor conforms to the IEC60947-4-1 and GB14048.4 standards.



Main technology

Model  Rated insulation voltage (V)  Rated operating voltage of Ve (V)  Agreed heating current Ith (A)  Rated operating current (AC-3)(A)  Rated control power(AC-3)(KW)  Rated operating frequency (AC-3)(/h)  With the coordination of SCPD's (Note 2)  Operation characteristic Coil power control (VA/W)
Start Holding
CJ20-10 690 220 10 10 2.2 1200 RDT16-20/660

The pull in voltage range of 0.85-1.1Us

Release voltage range of 0.2-0.75Us

 65/47.6 8.3/2.6
380 10 4 1200
660 5.2 4 600
CJ20-16 220 16 16 4.5 1200 RDT16-32/660 65/47.8 8.5/2.6
380 16 7.5 1200
660 13 11 600
CJ20-25 220 32 25 5.5 1200 RDT16-50/660 93.1/60 13.9/4.1
380 25 11 1200
660 14.5 13 600
CJ20-40 220 55 40 11 1200 RDT16-80/660 93.1/82.3 19/16.5
380 40 22 1200
660 25 22 600
CJ20-63 220 80 63 18 1200 RDT16-160/660

The pull in voltage range of 0.85-1.1Us

Release voltage range of 0.2-0.75Us

 480/153 57/16.5
380 63 30 1200
660 40 35 600
CJ20-100 220 125 100 28 1200 RDT16-250/660 570/175 61/21.5
380 100 50 1200
660 63 50 600
CJ20-160 690 220 200 160 48 1200 RDT16-315/660

The pull in voltage range of 0.85-1.1Us

Release voltage range of 0.2-0.75Us

 885/32 85.5/34
380 160 85 1200
660 100 85 600
CJ20-160/11 1140 1140 200 80 85 300
CJ20-250 690 220 315 250 80 600 RDT16-400/660 570/175 152/65
380 250 132 600
CJ20-250/06 660 200 190 300
CJ20-400 220 400 400 115 600 RDT16-500/660 570/175 152/65
380 400 200 600
CJ20-400/06 660 250 220 300
CJ20-630 220 630 630 175 600 RDT16-630/660 3578/790 250/118
380 630 300 600
CJ20-630/06 660 400 400 350 300
CJ20-630/11 1140 1140 400 400 120



 Product display



Ordering instructions

The fllowing must be pointed out when an order is placed:product model name , coil operating voltage and frequency number
