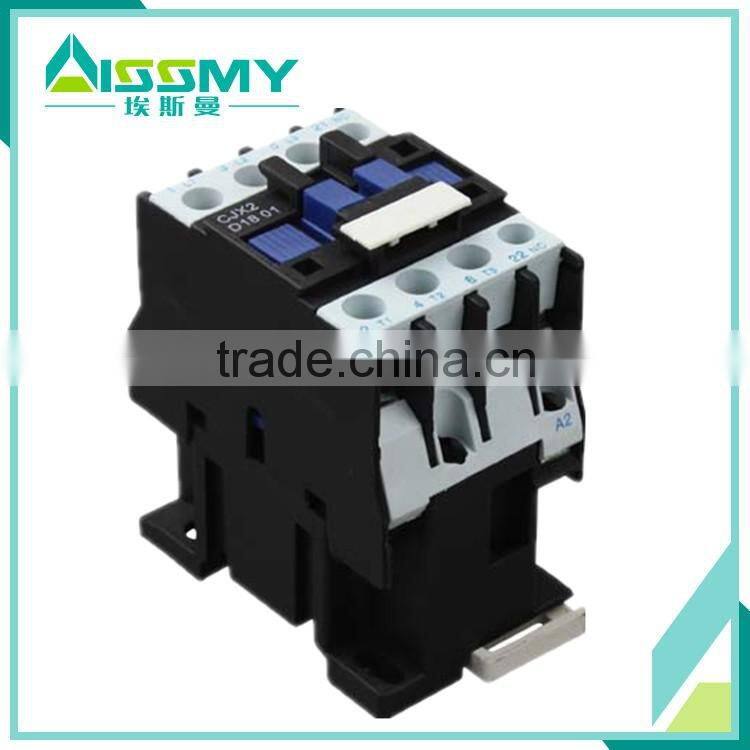

Telemecanique lc1-d 1no cjx2-1810 ac contactor
Specifications
1.Coil Voltage: 24V 48V 110V 220V 380V Customized
2. 85% Silver Contacts
3. Rated current up to 95A
4. Rated voltage up to 660V
LC1-D Contactors is suitabie for using in the circuits the rated voltage up to 660v AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contsctor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4, GB14048-4.
Type | CJX2-09 (LC1-D09) | CJX2-12 (LC1-D12) | CJX2-16 (LC1-D18) | CJX2-25 (LC1-D25) | CJX2-32 (LC1-D32) | |
Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
AC3 capacity of phase 3 squirrel- cage motor AC3(KW | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
415V | 4 | 5.5 | 9 | 11 | 15 | |
440V | 4 | 5.5 | 9 | 11 | 15 | |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
660/690V | 5.5 | 7.5 | 10 | 15 | 18.8 | |
Rated heat current(A) | 20 | 20 | 32 | 40 | 50 | |
Electrical life | AC4×106 | 20 | 20-15 | 7-20 | 7-15 | 7-15 |
AC3×104 | 2 | 2 | 2 | 2 | 2 | |
Mechanical life ×106 | 20 | 20 | 20 | 20 | 20 | |
number of the contact | 3P+NO | |||||
3P+NC | ||||||
Type | CJX2-40 (LC1-D40) | CJX2-50 (LC1-D50) | CJX2-63 (LC1-D65) | CJX2-80 (LC1-D80) | CJX2-95 (LC1-D95) | |
Rated working current (A) | AC3 | 40 | 50 | 65 | 80 | 95 |
AC4 | 18.5 | 24 | 28 | 37 | 44 | |
AC3 capacity of phase 3 squirrel- cage motor AC3(KW) | 220/230V | 11 | 15 | 18.5 | 22 | 25 |
380/400V | 18.5 | 22 | 30 | 37 | 45 | |
415V | 22 | 25 | 37 | 45 | 45 | |
440V | 22 | 30 | 37 | 45 | 45 | |
500V | 22 | 30 | 37 | 55 | 55 | |
660/690V | 30 | 33 | 37 | 45 | 45 | |
Rated heat current(A) | 60 | 80 | 80 | 125 | 125 | |
Electrical life | AC4×106 | 10-10 | 7 | 7-6 | 7-5 | 7-5 |
AC3×104 | 2 | 2 | 1.6 | 1.6 | 1.6 | |
Mechanical life ×106 | 20 | 20 | 20 | 10 | 10 | |
number of the contact | 3P+NC+NO | |||||
Standard control circuit voltages:
Volts (VAC) | 24 | 42 | 48 | 110 | 220/230 | 230 | 240 |
50Hz | B5 | D5 | E5 | F5 | D5 | P5 | U5 |
50Hz | B6 | D6 | E6 | F6 | D6 | / | U6 |
50/60Hz | B7 | D7 | E7 | F7 | D7 | P7 | U7 |
Volts (VAC) | 380/400 | 400 | 415 | 440 | 500 | 600 |
50Hz | D5 | V5 | N5 | R5 | S5 | Y5 |
50Hz | D6 | / | / | R6 | / | / |
50/60Hz | D7 | V7 | N7 | R7 | / | / |
Thanks for attention and good luck!
Mob/Whatsapp/ WeChat: 0086 15869498786
Skype: Cindyelectric
QQ: 770965655
