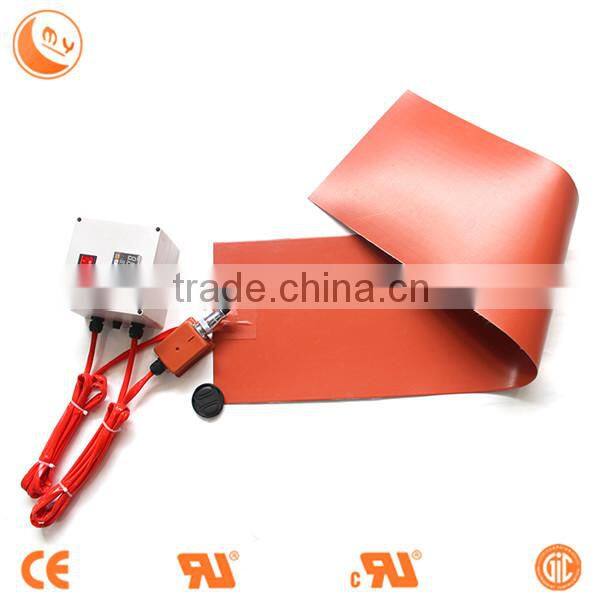

Silicon Rubber Drum Heater
- 1000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Condition: | New | Type: | Band Heater | Power Source: | Electric |
Place of Origin: | Jiangsu, China | Brand Name: | MY, MY(jiangyin mengyou) | Model Number: | MYSRB, MYSRB2016 Oil Drum Heater |
Dimension(L*W*H): | Custom Size | Weight: | Final Dimension | Voltage: | 12-480v, can be customized) |
Power(W): | Customer | Certification: | ISO9001:2008 | Warranty: | One Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
110 volt Flexible Oil Drum Heater with CE
Used For: oil drum heaters
type:electric heater
long useful life

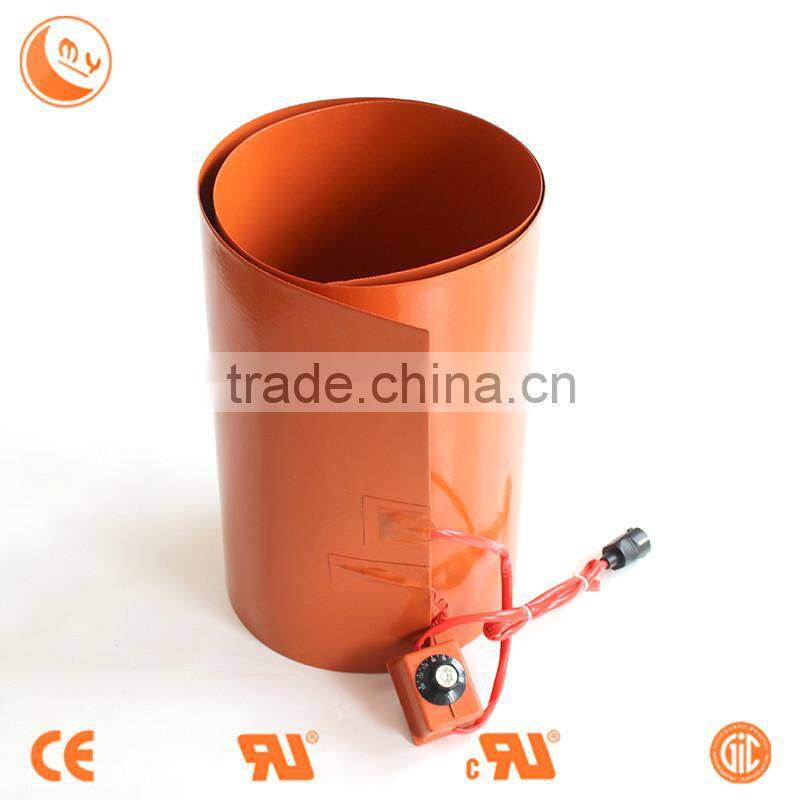

200 liter Silicone Oil Drum Heater with Adjustable Thermostat(Dial/Digital) |
General Introduction
Silicone Rubber Flexible Heater Band can be manufactured from etched foil or from resistance wire as a wire wound circuit. The circuit pattern is vulcanized between two layers of silicon rubber and can be easily mounted to heat sinks or devices that need to be heated.

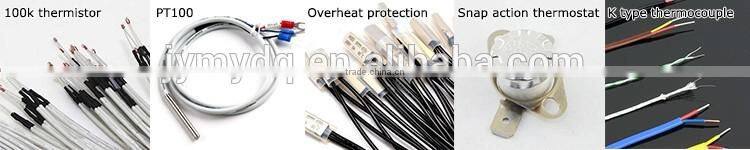

Silicon rubber's flexility can make your Silicon Rubber Heater in the shape of flat, spiral wrap, blanket, and molded to shape. Silicon rubber heater can be supplied with thermistors , thermostats, thermal fuses and thermocouples.
Silicon rubber's flexility will assemble the heater to your application through the process of vulcanization and the use of silicon and pressure sensitive adhesives.
oil drum heaters is very versatile.
These oil drum heaters/warmers for automotive applications as well as many other uses where a powerful,flexible heaters is needed.
Rated for 1-2 quart systems
Designed for small oil pans/crankcase
Universal Application
Mounts in any position
Very flexible and pliable
Plugs into any volt acceptable
Use as hydraulic tank,fuel tank,fuel filter oil pan or transmission pan heater
Keep engine oil warm
Prevent cold start damage

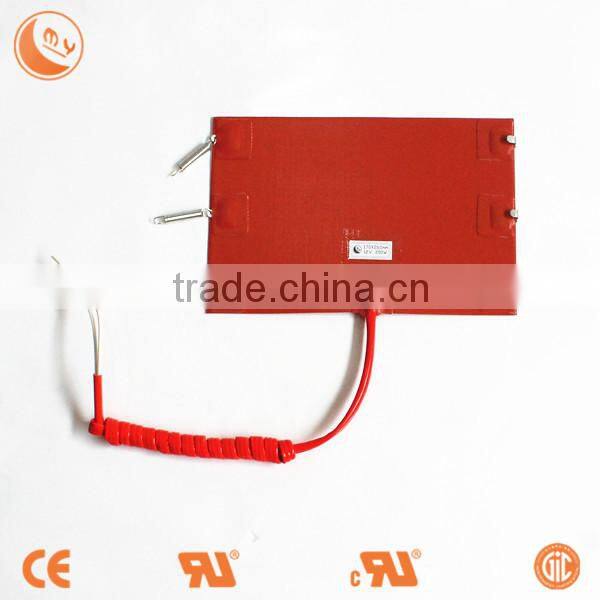

Rectangular heating element :
Length & Width inches(mm) | Voltage | Wattage | Mountings |
6 × 6 (152.4 × 152.4mm) | 12 | 50 | Adhesive |
8 × 8 (203.2 × 203.2mm) | 12 | 165 | Adhesive, Thermistor 100K |
12 × 12 (304.8 × 304.8mm ) | 24 | 350 | Adhesive, Thermistor 100K |
Dia 6.3(160mm) | 12 | 120 | 3M Adhesive, Thermistor 100K |
39.37 × 39.37(1000 × 1000mm) | 110 | 4000 | Digital Temperature Controller |
6.1 × 39.37(155 × 1000mm) | 220 | 650 | Plug |
35.4 × 70.87(900 × 1800mm) | 380 | 7000 | Digital Temperature Controller |
39.37 × 118.11(1000 × 3000mm) | 415 | 13000 | Digital Temperature Controller Box |
If you can't find your size in the above form, please contact with me.The max width is 1200mm, and no limit for length.
Install terms of silicone rubber heater: | ||

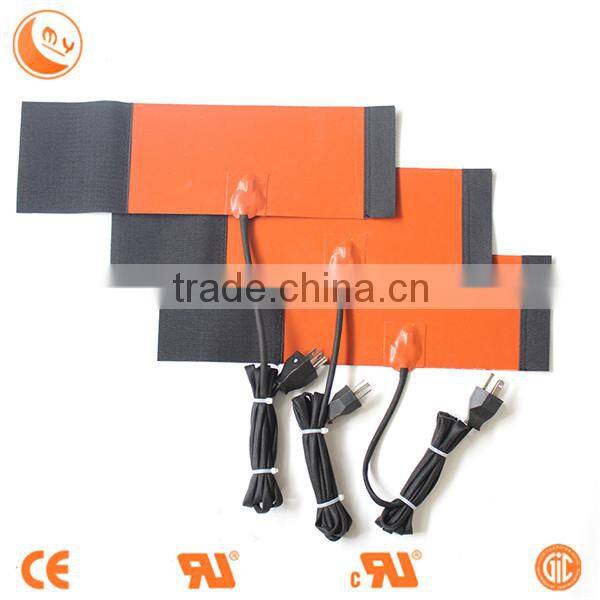

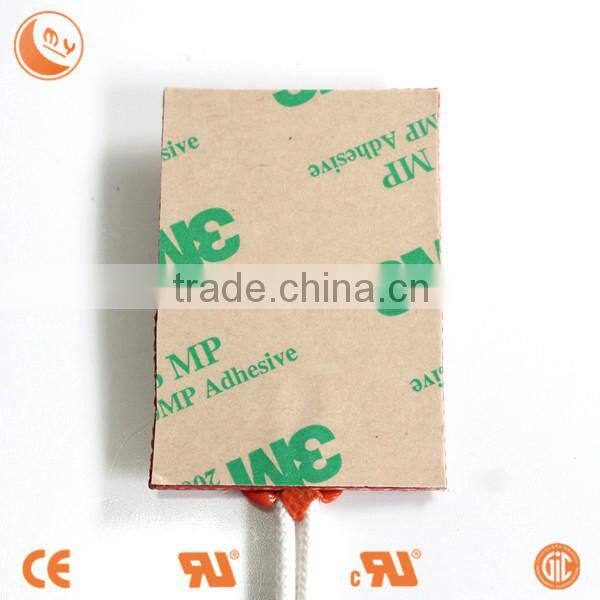

velcro | steel spring | 3M adhesive |
Ways to control temperature: | ||

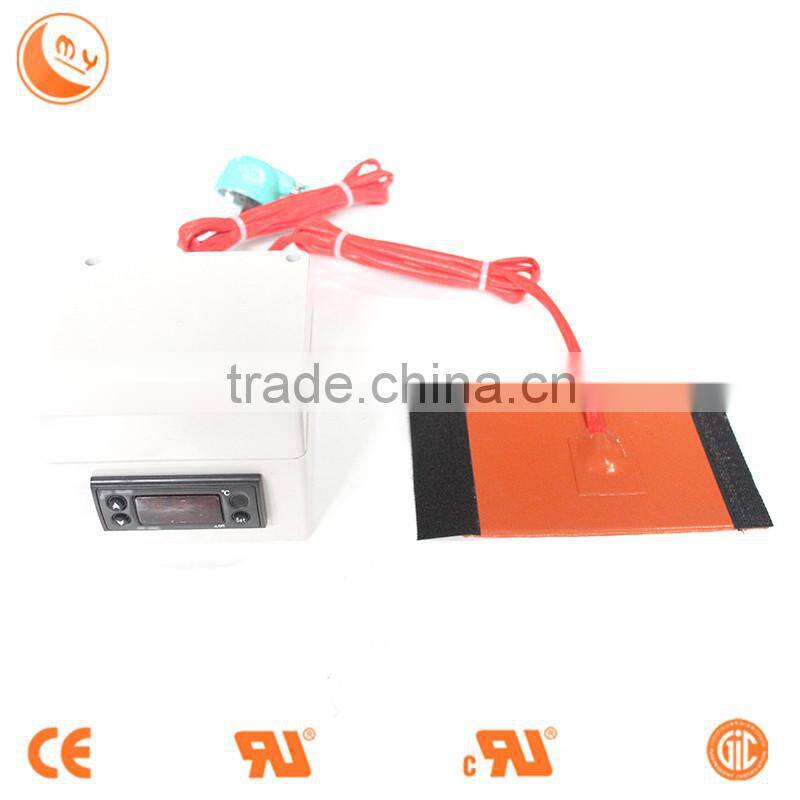

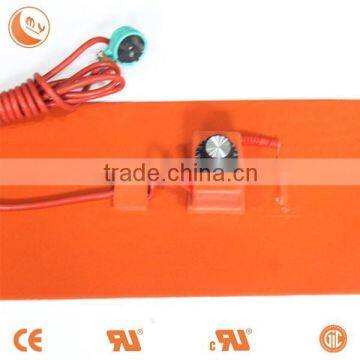

dial themostat | digital themostat (±2℃) | digital themostat (±1℃) |
small thermostat
Jiangyin Mengyou Electric Heating Appliances Co., Ltd is located in Qingyang Town, a geometrical center of the famous Soochow, Wuxi, Changzhou and the Yangtze River Delta ecnomic zone. It is north of Yangtze River, south of Wuxi, Changzhou, West of Nanjing, east of Shanghai and Xicheng Expressway. With superior geographical location and convenient transportation, it becomes an ideal development in silicone rubber heater field base for light industry.
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Jiangyin City, Jiangsu Province, China .
It takes 40 minutes by high speed rail from Shanghai .Warmly welcome to visit us freely.
3.What type of payment do you have available?
TT and L/C are accepted.
West Union, PayPal and Money gram are available.
4.How can I get some samples?
We are honored to offer you samples .
5.How does your factory do regarding quality control?
Jiangyin Mengyou has specialized in manufacturing silicone rubber heater for more than 20 years.
Quality is controlled by CE, UL, RoHs and ISO 9001. And Our UL certification number is E464913.
Welcome to contact us for more details!
