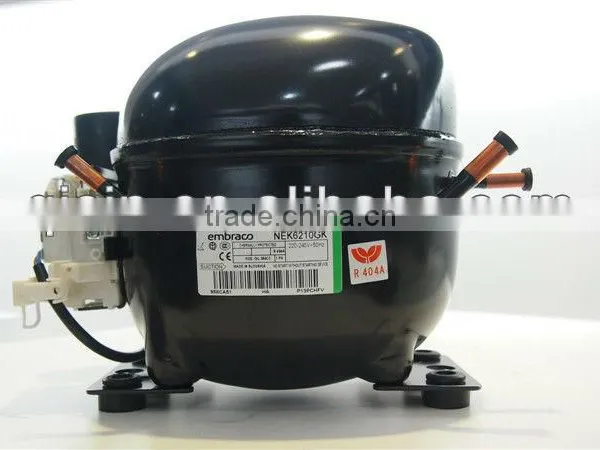

Embraco Compressor NEK6210GK R404a HBP MBP

Specifications

The Embraco NEK6210GK series of compressors has two efficiency levels and is designed especially for commercial use.

Supermarket Display Embraco Compressor  NEK6210GK R404a HBP MBP



Technical FeaturesDesigned for commercial applications and air conditioners
• Available for R-134a, Blends and R-502, R-22, R-404A, R-407C
• Wide range of applications
• Versions with oil cooling or ventilation
• Models with high and low starting torque
Commercial Applications- Horizontal Freezers
- Merchandisers
- Equipment for supermarket and bakeries
- Equipment for professional kitchens
- Dispenser
- Wine Coolers
- Ice Makers
- Vending Machines



Discription:



Refrigerant:	R-404A	Displacement (cm³):	8,77
Voltage:	220-240 V 50 Hz 1 ~	Lubricant Type:	ISO22
Frequency (Hz):	50	Lubricant Charge (ml):	350
Application:	MBP	Motor Type:	CSIR
HP:	1/2	Starting Torque:	HST
Efficiency:	1,78	Type of Test:	ASHRAE46
Capacity:	1.121



External Features:



Shape	Material	Diameter (mm)
Suction Connector	Slanted 42°	Copper	8,10
Discharge Connector	Straight	Copper	6,10
Process Connector	Slanted 42°	Copper	6,10

Oil Cooler:
Base Plate:	European Standard
Tray Holder:	No
Weight (kg):	11,00

Application

Maximum ambient temperature (ºC):	43
Expansion device:	Capillary/ Valve
Cooling:	Fan Cooling
Air flow rate:

Mechanical Data

Bill of materials:	958CA51
Starting torque:	High Starting Torque
Bore (mm):	26,50
Stroke (mm):	7,96
Weight (kg):	11,00

Electrical Data

Motor type:	CSIR
Winding Resistance (25ºC) - Start:	31,70
Winding Resistance (25ºC) - Run:	5,18





Stocks Always Available:



Refrigerant R404a Low Back Pressure
NEK2125GK	7/16HP
NEK2134GK	1/2HP
NEK2150GK	1/2HP
NEK2168GK	1/2HP
T2155GK	3/4HP
T2168GK	3/4HP
T2178GK	1HP
NT2192GK	1HP
NJ2192GK	1.5HP
NJ2212GK	1.25HP
Refrigerant R404a Medium/High Back Pressure
NEK6210GK	1/2HP
NE9213GK	3/4HP
T6220GK	7/8HP
T6222GK	3/4HP
NJ9226GK	1HP
NJ9232GK	1.5HP
NJ9238GK	1.75HP
