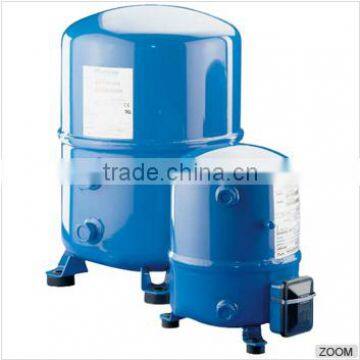

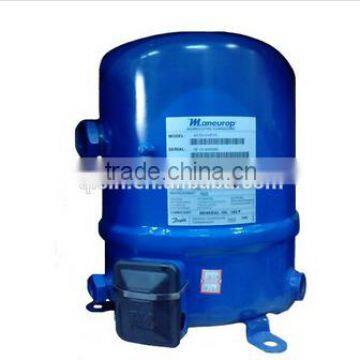

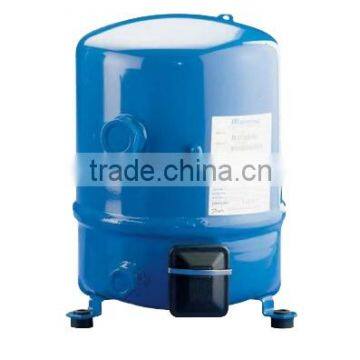

Maneurop reciprocating compressor MTZ40

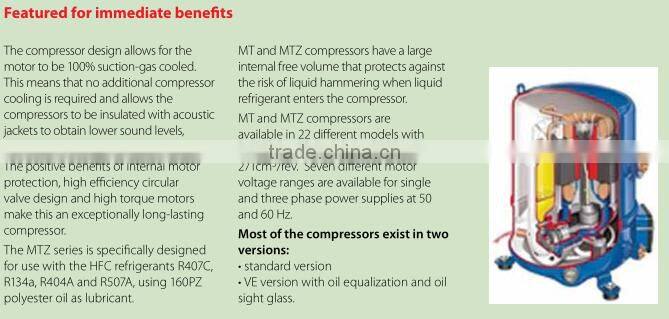

- MT and MTZ series compressors are of the hermetic reciprocating type and are designed for medium and high evaporating temperature applications.
- The positive benefits of internal motor protection, high efficiency circular valve design and high torque motors provide for a quality installation.
- MT and MTZ compressors have a large internal free volume that protects against the risk of liquid hammering when liquid refrigerant enters the compressor.
- MT and MTZ compressors are fully suction-gas cooled. This means that no additional compressor cooling is required and allows the compressors to be insulated with acoustic jackets, to obtain lower sound levels, without the risk of compressor overheating.
-

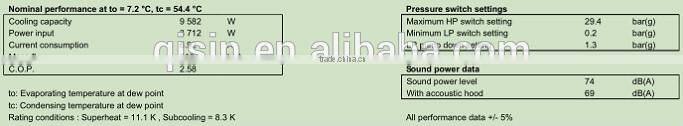

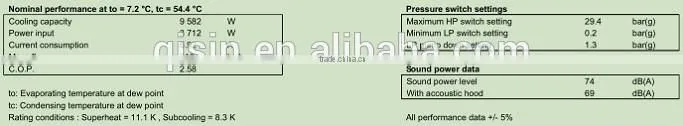

Specifications Maneurop reciprocating compressor MTZ40 Capacity(Btu/hr) 9582 Power(W) 3712 C.O.P(Btu/Wh) 2.58 Mass flow(Kg/h) 216 Weight (Kg) 26 Refrigerant R134A,R404A,etc. Approval CE,UL

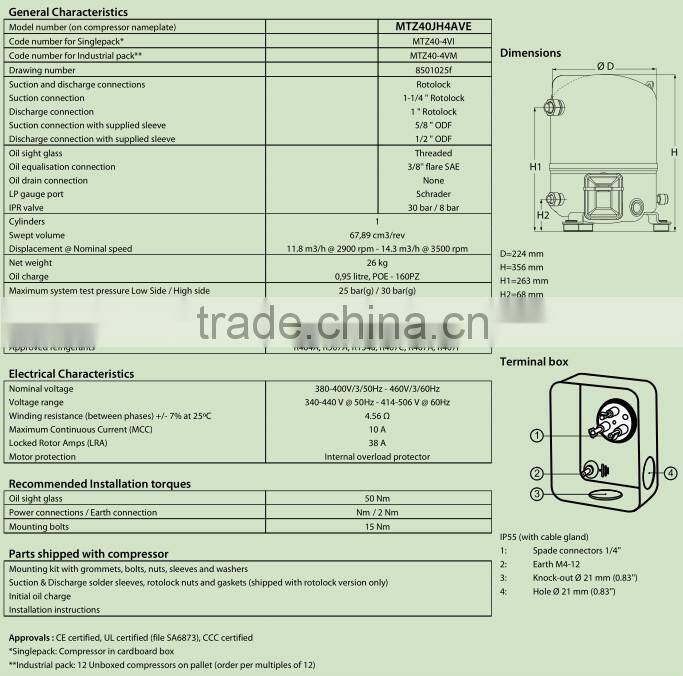

Maneurop compressor MTZ40JH4AVE Features
Danfoss focuses on enhancing comfort, efficiency, and sustainability for residential, light commercial, commercial and industrial applications with:
- The widest product range in inverter technology: from 3 to 26TR, there is always a Danfoss prequalified compressor and drive available to provide stunning efficiency
- Excellent energy efficiency across the complete scroll range, offering performance that ranks among the best in the market
- Low ODP refrigerants with a complete compressor range using R410A
- Compact solutions for smaller footprints
- Reduced sound levels, for greater comfort in residential, commercial areas.
- In addition, our clients can benefit from a large number of innovations and patents including:
- A 40-ton compressor with integrated electronics and remote control and diagnostics, for improved motor protection
- Reduced installation costs with fast connections thanks to pre-equipped compressors for different manifold configurations.
Model |
Cooling Capacity |
Input |
Current |
COP |
Displacement |
Oil charge |
Weight |
Height |
Voltage |
(W) |
(W) |
(A) |
(W/W) |
(m3/h) |
(dm³) |
(kg) |
(mm) |
||
MTZ18-4VM |
2553 |
989 |
2.19 |
2.58 |
5.3 |
0.95 |
21 |
356 |
380V,50Hz |
MTZ22-4VM |
5021 |
1857 |
3.47 |
2.7 |
6.63 |
0.95 |
21 |
356 |
380V,50Hz |
MTZ28-4VM |
6536 |
2361 |
4.57 |
2.77 |
8.36 |
0.95 |
23 |
356 |
380V,50Hz |
MTZ32-4VM |
7335 |
2665 |
4.9 |
2.76 |
9.37 |
0.95 |
24 |
356 |
380V,50Hz |
MTZ36-4VM |
8283 |
3206 |
5.99 |
2.58 |
10.52 |
0.95 |
25 |
356 |
380V,50Hz |
MTZ40-4VM |
9582 |
3712 |
6.92 |
2.58 |
11.81 |
0.95 |
26 |
356 |
380V,50Hz |
MTZ44-4VM |
10096 |
3376 |
6.18 |
2.99 |
13.26 |
1.8 |
37 |
415 |
380V,50Hz |
MTZ50-4VM |
11531 |
4007 |
6.95 |
2.88 |
14.9 |
1.8 |
37 |
415 |
380V,50Hz |
MTZ56-4VM |
12999 |
4367 |
7.91 |
2.98 |
16.73 |
1.8 |
39 |
415 |
380V,50Hz |
MTZ64-4VM |
14851 |
5016 |
8.91 |
2.96 |
18.74 |
1.8 |
39 |
415 |
380V,50Hz |
MTZ72-4VM |
17047 |
5873 |
10.48 |
2.9 |
21.04 |
1.8 |
40 |
415 |
380V,50Hz |
MTZ80-4VM |
19333 |
6825 |
12.08 |
2.83 |
23.63 |
1.8 |
40 |
415 |
380V,50Hz |
MTZ100-4VM |
22699 |
7997 |
13.83 |
2.84 |
29.8 |
3.9 |
60 |
540 |
380V,50Hz |
MTZ125-4VM |
29788 |
10325 |
16.28 |
2.89 |
37.49 |
3.9 |
64 |
540 |
380V,50Hz |
MTZ144-4VM |
33067 |
11586 |
18.8 |
2.85 |
42.09 |
3.9 |
67 |
540 |
380V,50Hz |
MTZ166-4VM |
37819 |
13457 |
21.5 |
2.81 |
47.06 |
3.9 |
67 |
540 |
380V,50Hz |
