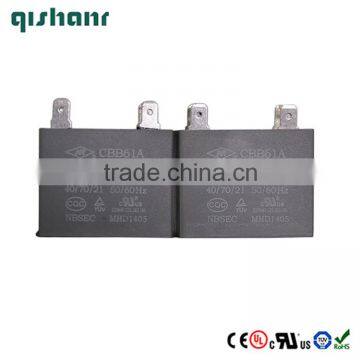

CBB61 7uF Metallized PP Film Capacitors 250V~300V, 400V~500V

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port Guangzhou/Shenzhen/Hong Kong
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Model Number	CBB61
Type	Polypropylene Film Capacitor	Application	Other, Air conditioner, FHP motor
Package Type	Surface Mount	Capacitance	7uF
Rated Voltage	450VAC 50/60Hz	Operating Temperature	40/70/21 40/85/21

Product Description

CBB61 Metallized polypropylene film dielectric ac capacitors

1)Is generally rectangular fire-retardant plastic casing, epoxy sealed structure;
2)Internal explosion-proof devices with fused, use of safe and reliable.
3)The product has low loss, insulation resistance, good self-current, overload characteristics;
4)Applies to washing machines, fractional horsepower motor, the motor starts to help and run.

Technical Data

Technical data and performance indicators:

1)Detailed category: GBT/366.71-2005，IEC252
2)Climatic category: 40/085/21；40/070/21
3)Capacitance tolerance: ± 5%
4)Loss tangent: ≤0.002(100Hz)
5)Test voltage: the first between the leads: 2Un 60s no breakdown, leads to the head and shell 2000VAC, 60s no breakdown.

Overall Size

Rated capacity (uF)	Rated voltage (VAC)
	250VAC≤Un≤300			300VAC≤Un≤400			400VAC≤Un≤500
	L	W	H	L	W	H	L	W	H
1	37	12	26	37	14	28	37	14	28
1.2	37	12	26	37	14	28	37	14	28
1.5	37	12	26	37	14	28	37	14	28
2	37	14	28	37	14	28	37	18	30
2.5	37	14	28	37	18	30	37	18	30
3	37	18	30	37	18	30	47	18	28
3.5	37	18	30	37	18	30	47	18	34
4	37	18	30	37	18	28	47	18	34
4.5	37	18	30	47	18	34	47	22	34
5	47	18	28	47	18	34	47	22	34
6	47	18	34	47	22	34	47	26	38
7	47	18	34	47	26	38	58	21	35
8	47	22	34	47	26	38	57	21	37
9	47	22	38	47	26	38	57	23	37
10	47	26	38	57	21	37	57	28	40
20	58	29	43	60	30	50	66	50	40

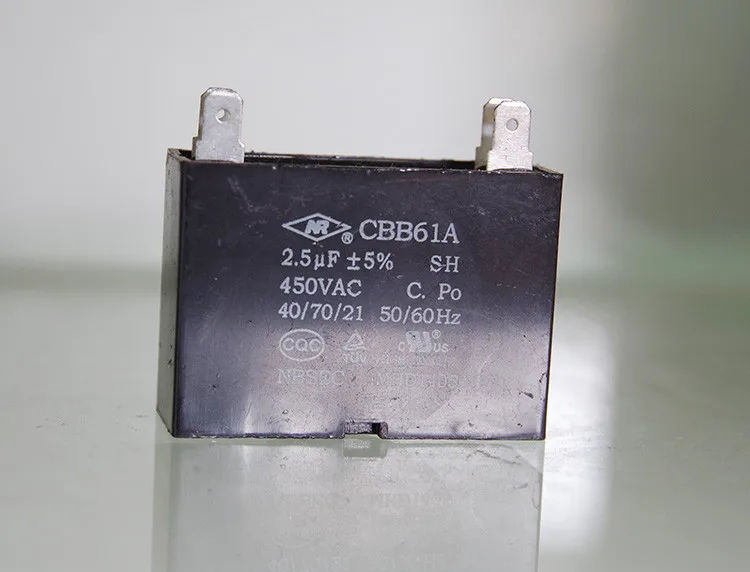

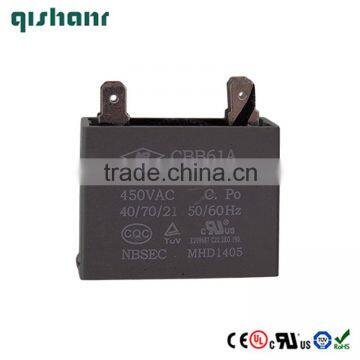

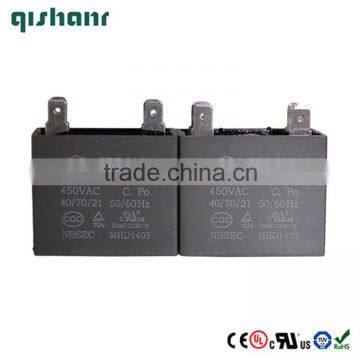

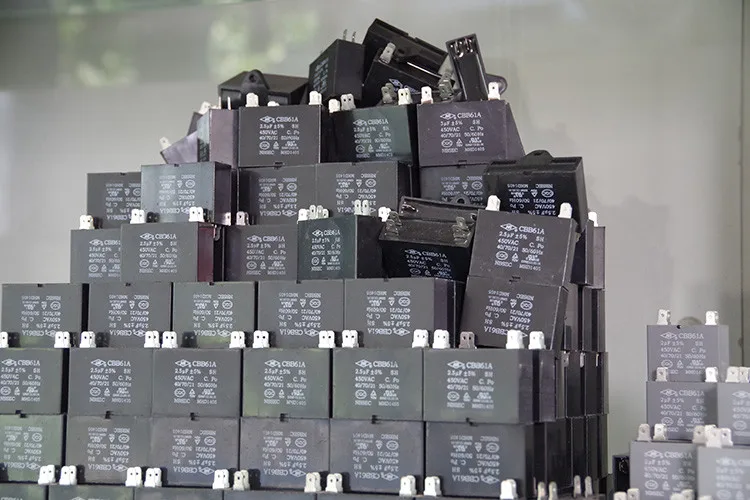

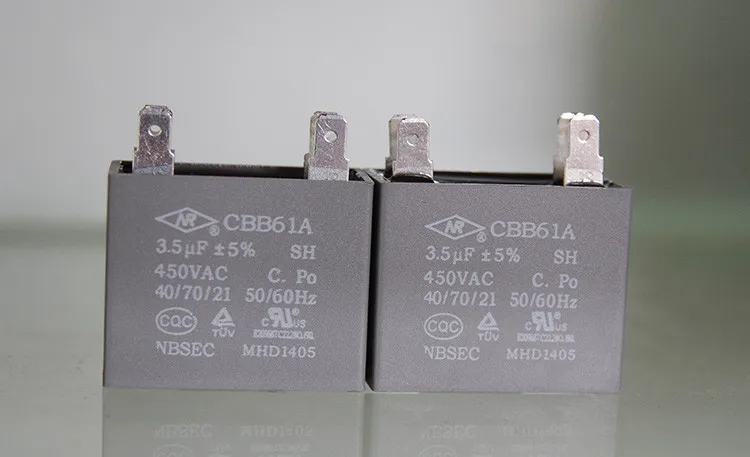

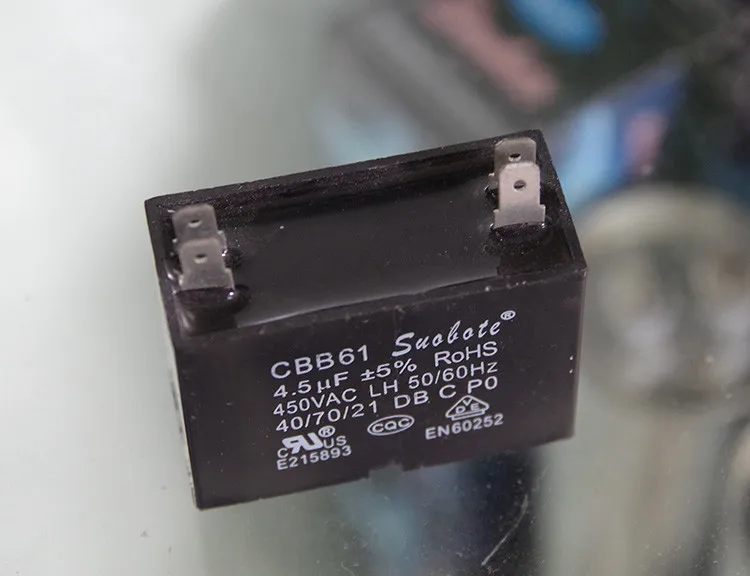

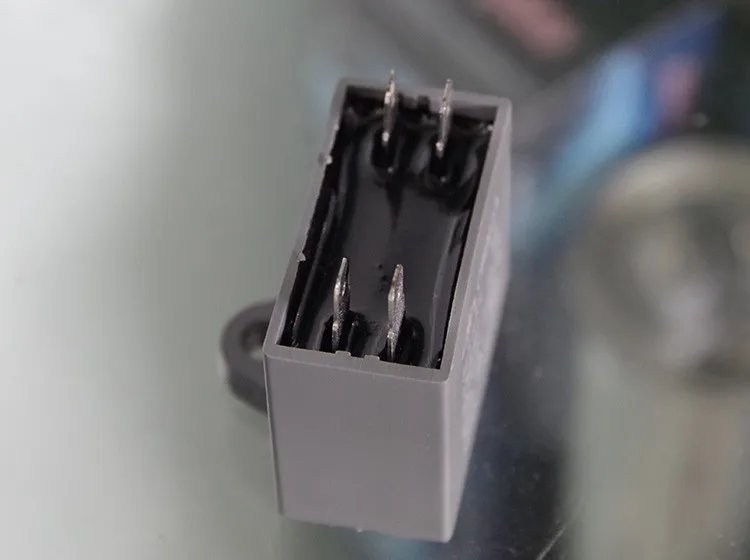

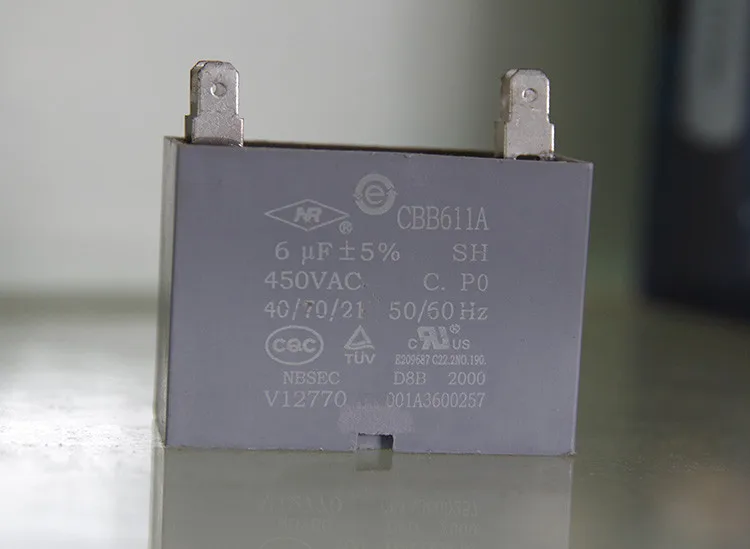

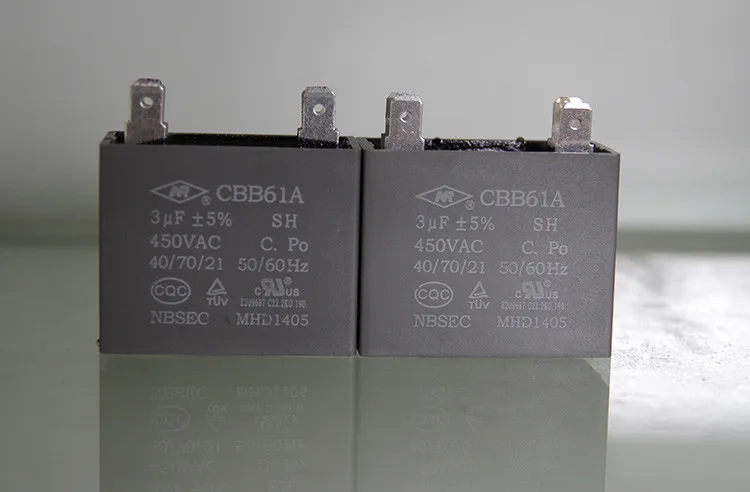

Detailed Images
